Engine Mount Control Unit Replacement

  1. Remove the lower glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION ), and the right kick panel (see step 2 in TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Disconnect the engine mount control unit 20P connector (A).

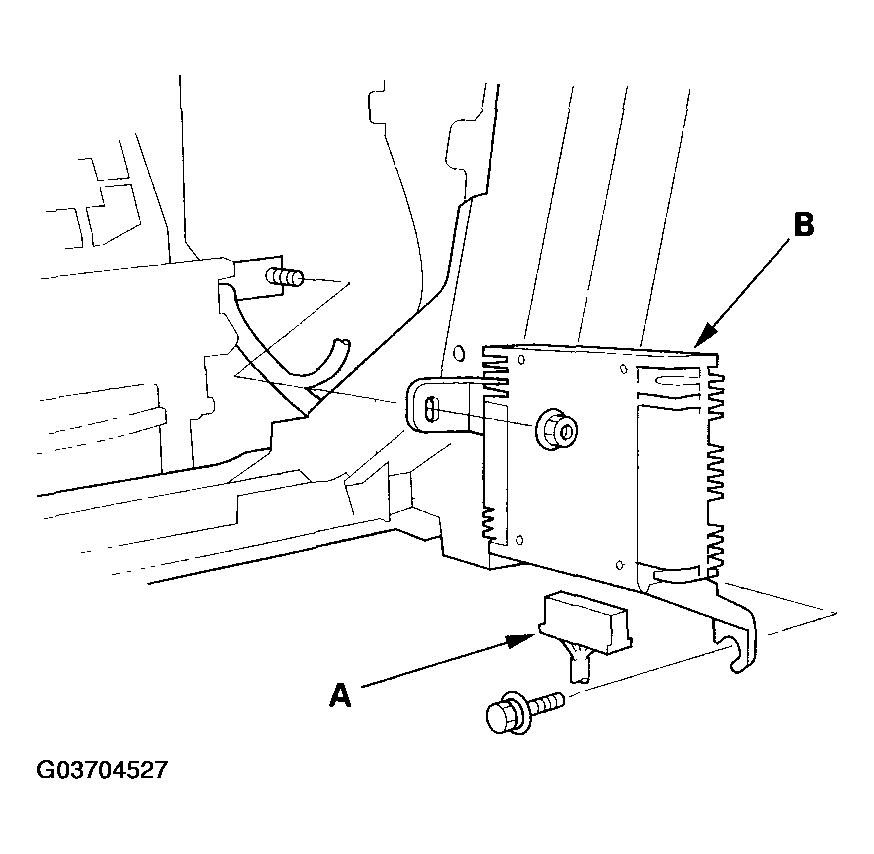

    Fig 1: Disconnecting Engine Mount Control Unit 20P Connector
    G03704527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the engine mount control unit (B).
  4. Install the engine mount control unit in the reverse order of removal.
