Body & Frame
>>
Frames, Subframes & Crossmembers
>>
Frame Repair Chart
>>
Side View
Side View

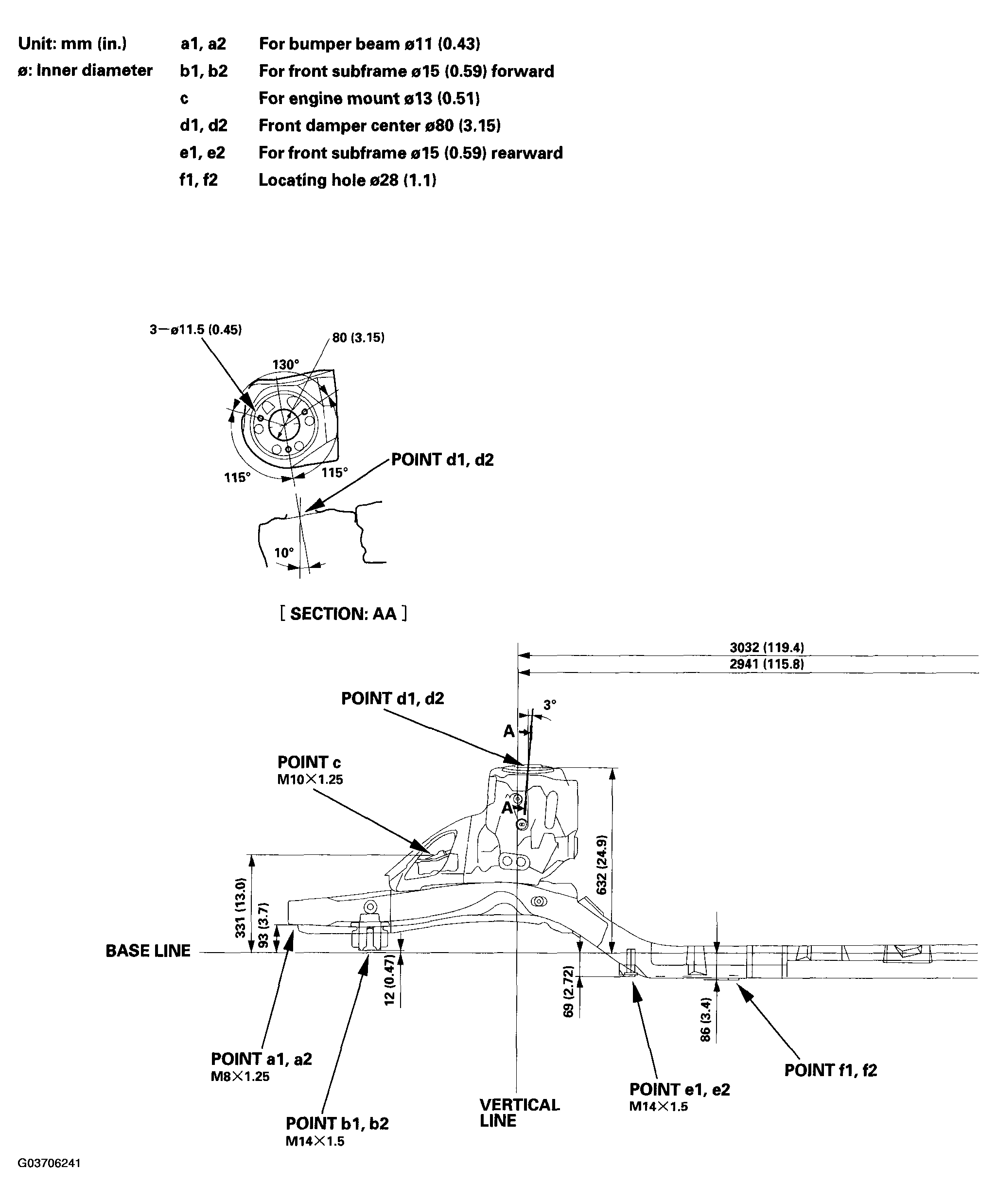

Fig 1: Identifying Frame Repair Dimensions (Side View - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

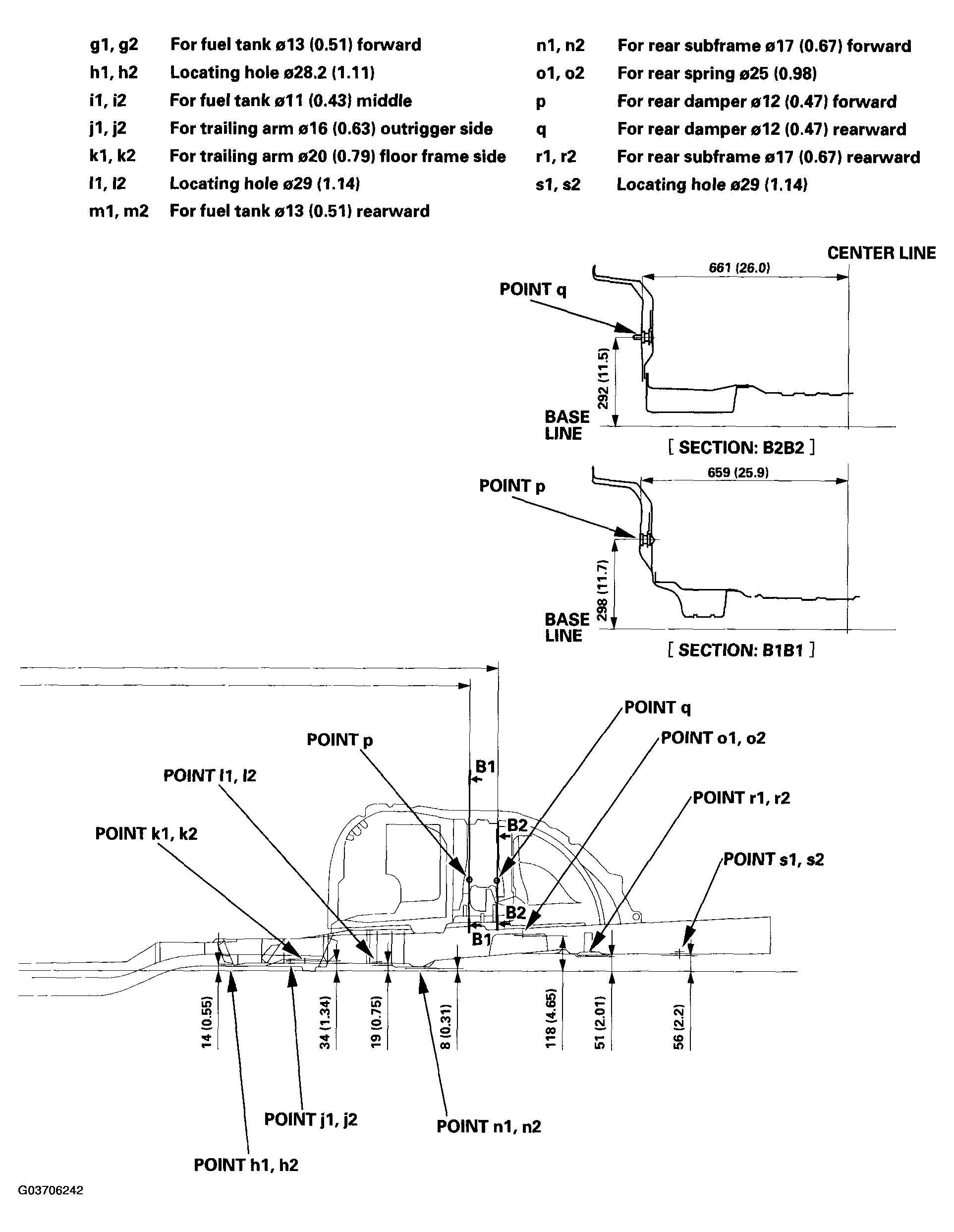

Fig 2: Identifying Frame Repair Dimensions (Side View - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
