With Power Tailgate

  1. Remove the rear license molding (see step 3 in REAR LICENSE TRIM REPLACEMENT ).
  2. Disconnect the tailgate handle connector (A), and remove the nuts.

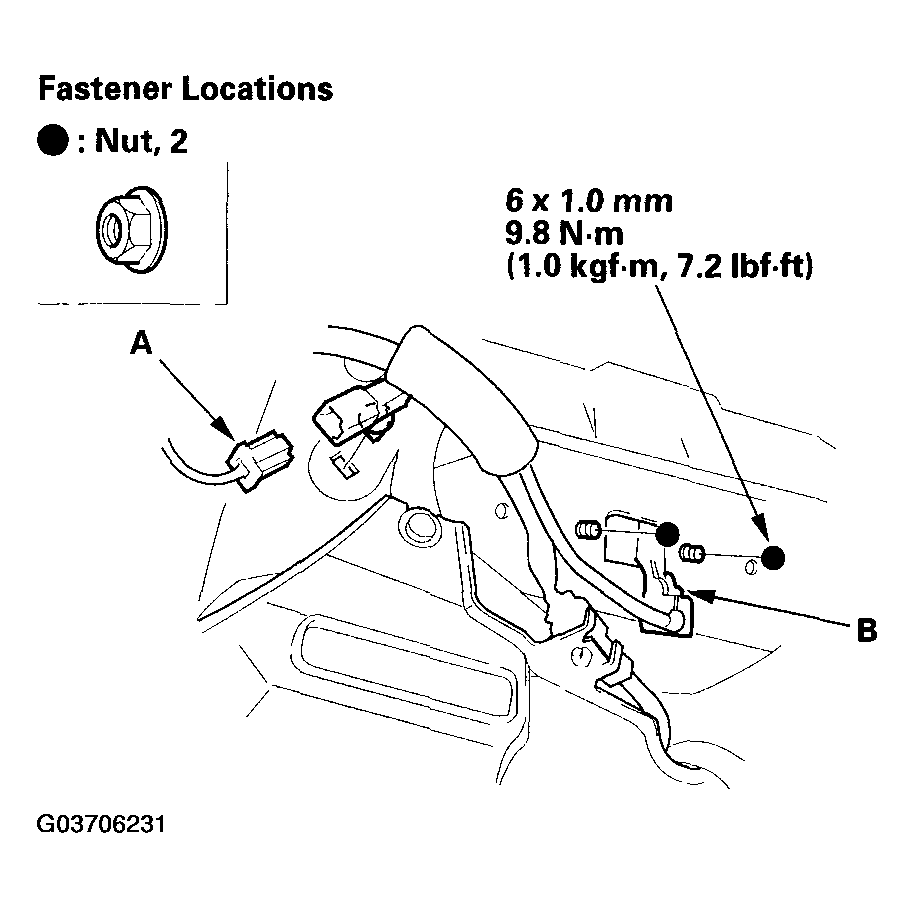

    Fig 1: Disconnecting Tailgate Handle Connector
    G03706231Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. From outside of the tailgate, pull out the tailgate handle (B), then remove it.
  4. Install the handle in the reverse order of removal, and note these items:
    • Make sure the tailgate handle connector is plugged in properly.
    • Make sure the tailgate opens properly.
