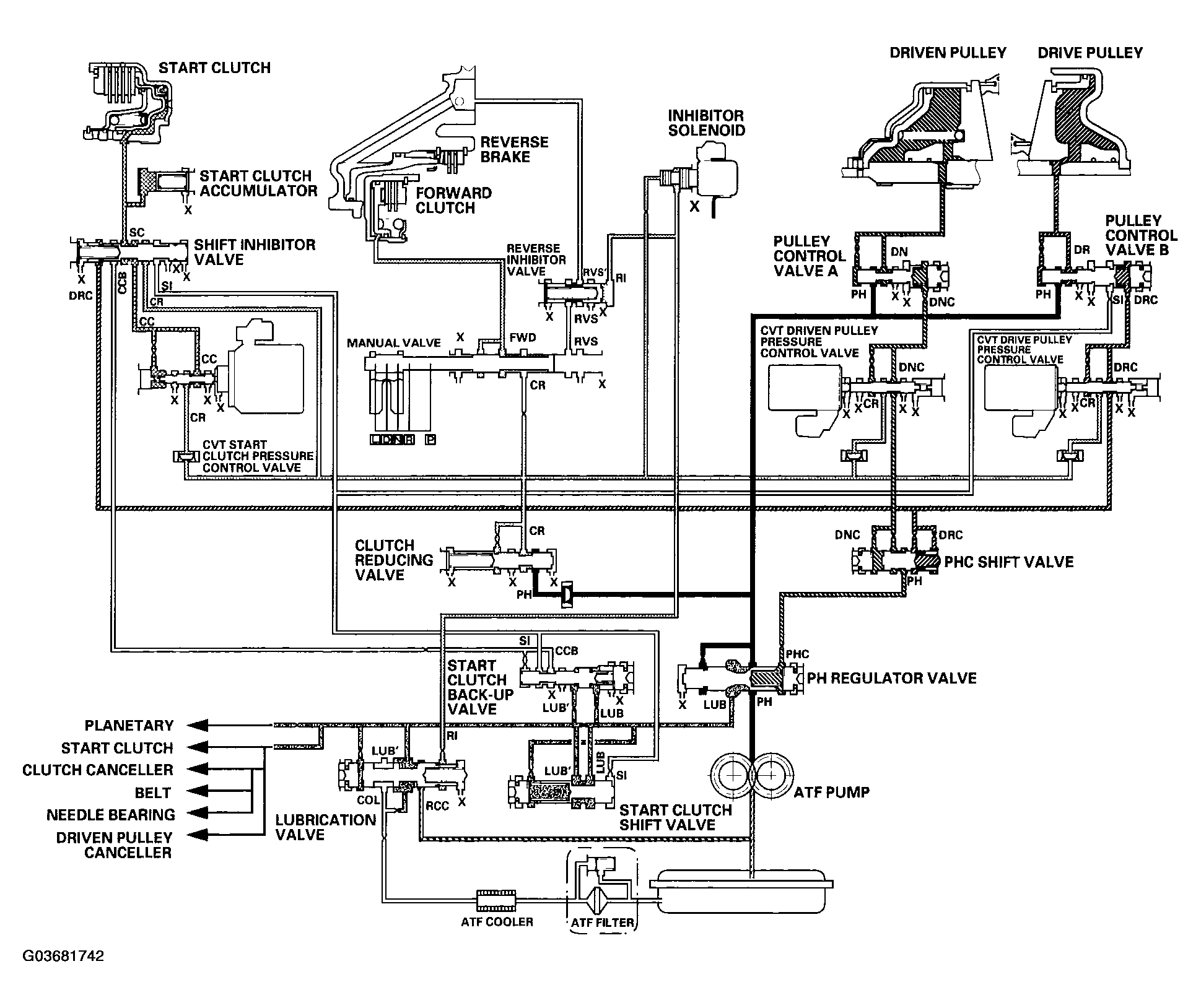

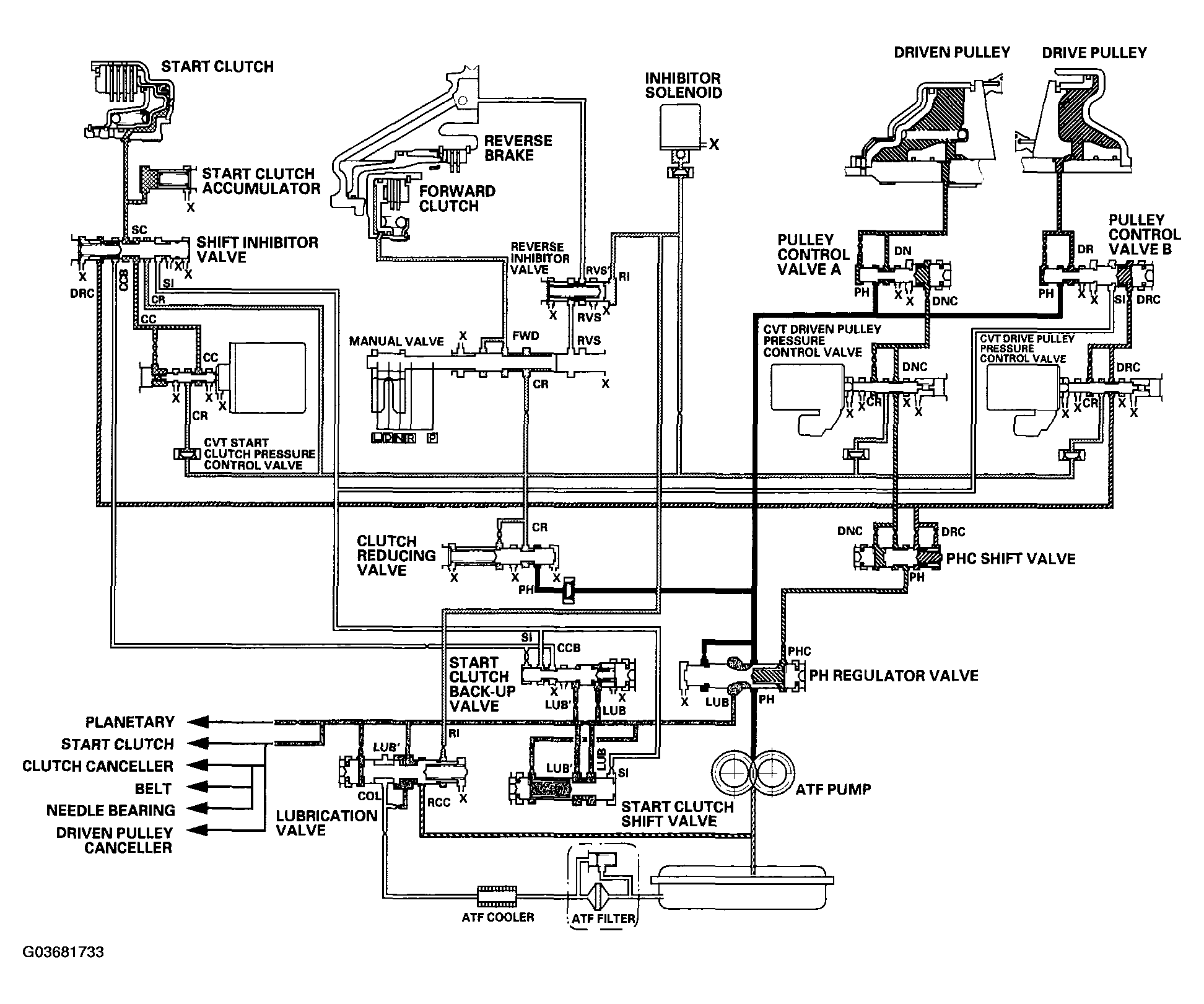

D Position, at low speed range
The manual valve is shifted into D position, and uncovers the port leading forward clutch pressure (FWD) to the forward clutch. The forward clutch pressure (FWD) flows to the forward clutch, the forward clutch is engaged and drives the input shaft and drive pulley shaft. The drive pulley receives low pressure, and driven pulley receives high pressure. The TCM actuates the CVT start clutch pressure control valve to control start clutch pressure. The start clutch control pressure (CC) from the CVT start clutch pressure control valve becomes the start clutch pressure (SC) at the shift inhibitor valve, and flows to the start clutch. The start clutch is engaged, and the vehicle moves.
The manual valve is shifted into the D position, and uncovers the port leading forward clutch pressure (FWD) to the forward clutch. The forward clutch pressure (FWD) flows to the forward clutch, the forward clutch is engaged and drives the input shaft and drive pulley shaft. The drive pulley receives low pressure, and driven pulley receives high pressure. The TCM actuates the CVT start clutch pressure control valve to control start clutch pressure. The start clutch control pressure (CC) from the CVT start clutch pressure control valve becomes the start clutch pressure (SC) at the shift inhibitor valve, and flows to the start clutch. The start clutch is engaged, and the vehicle moves.
