Civic Hybrid, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System (Hybrid)
>>
Circuit Diagram
Circuit Diagram

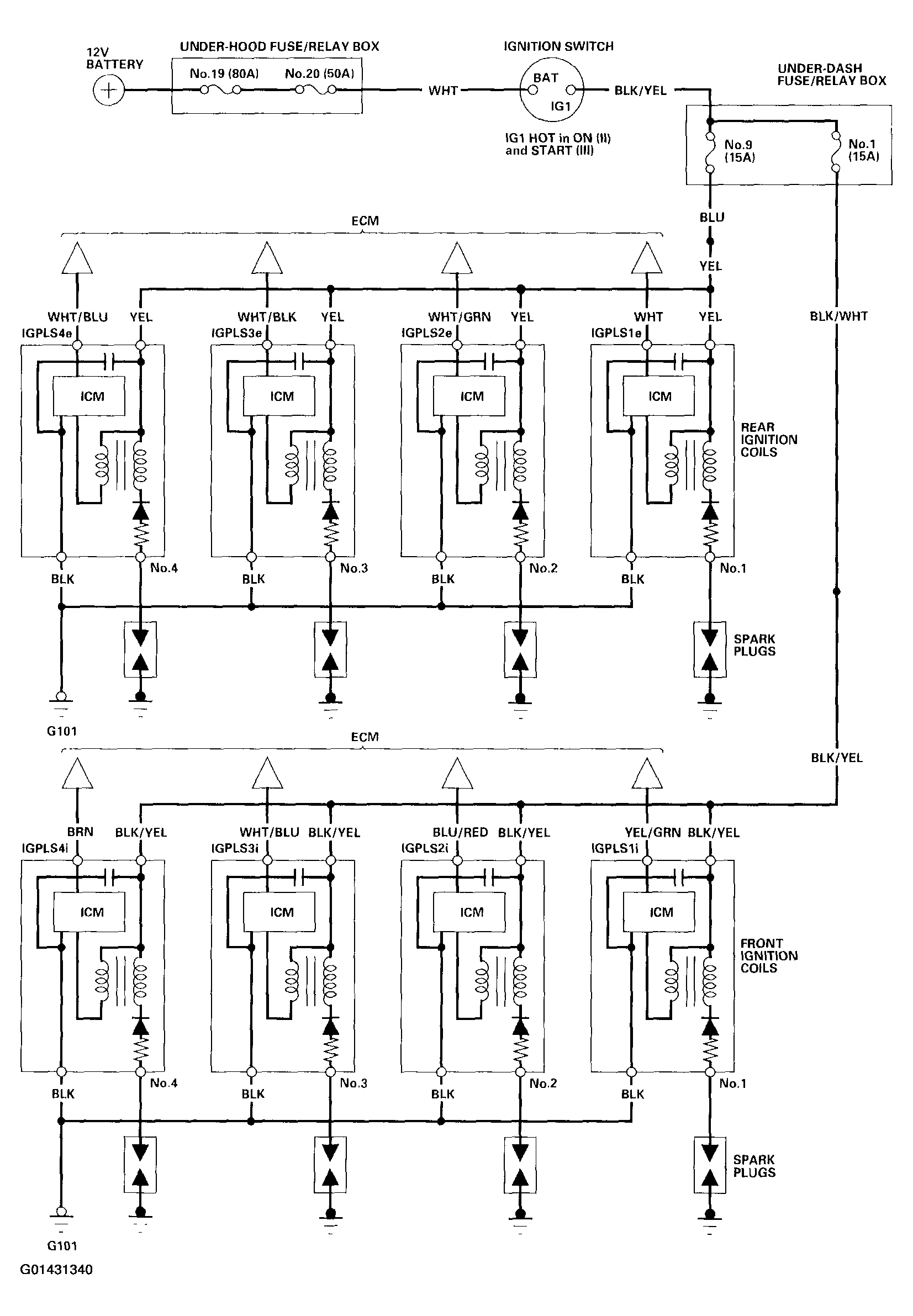

Fig 1: Ignition System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
