Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel And Emissions Systems
>>
System Description
>>
Electronic Control System
>>
ECM/PCM Electrical Connections
ECM/PCM Electrical Connections

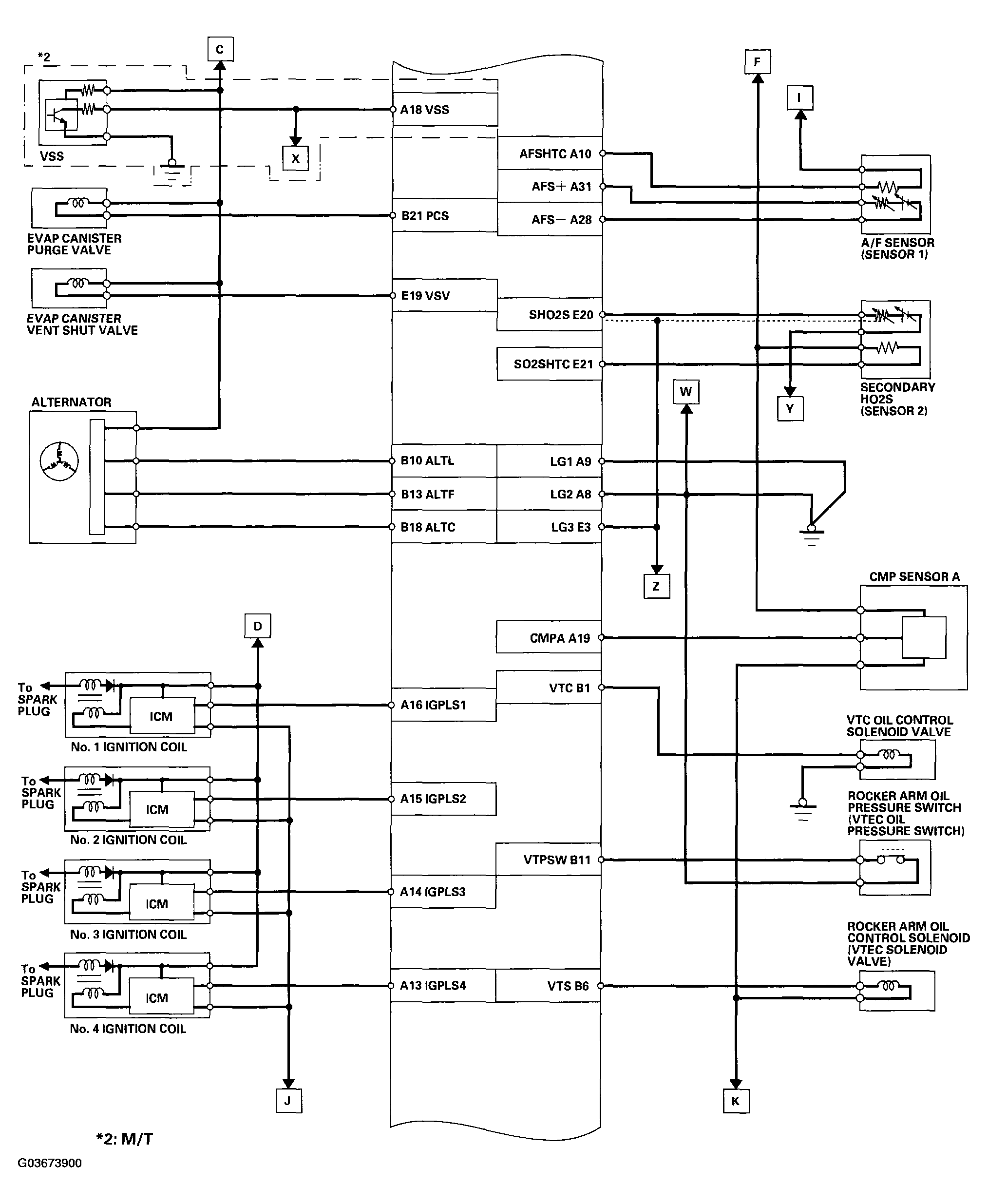

Fig 1: Wiring Diagram (ECM/PCM Electrical Connections) (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

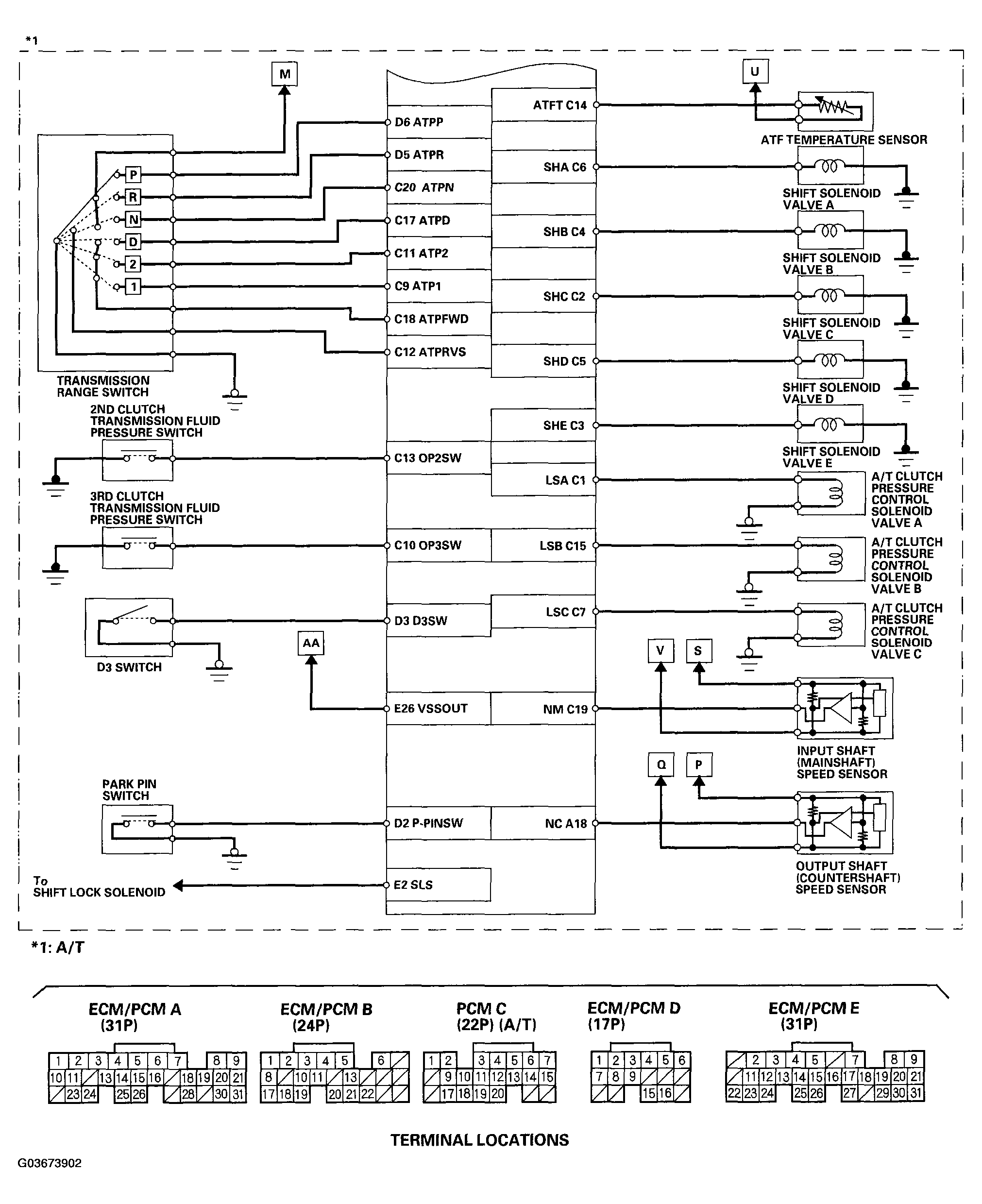

Fig 2: Wiring Diagram (ECM/PCM Electrical Connections) (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

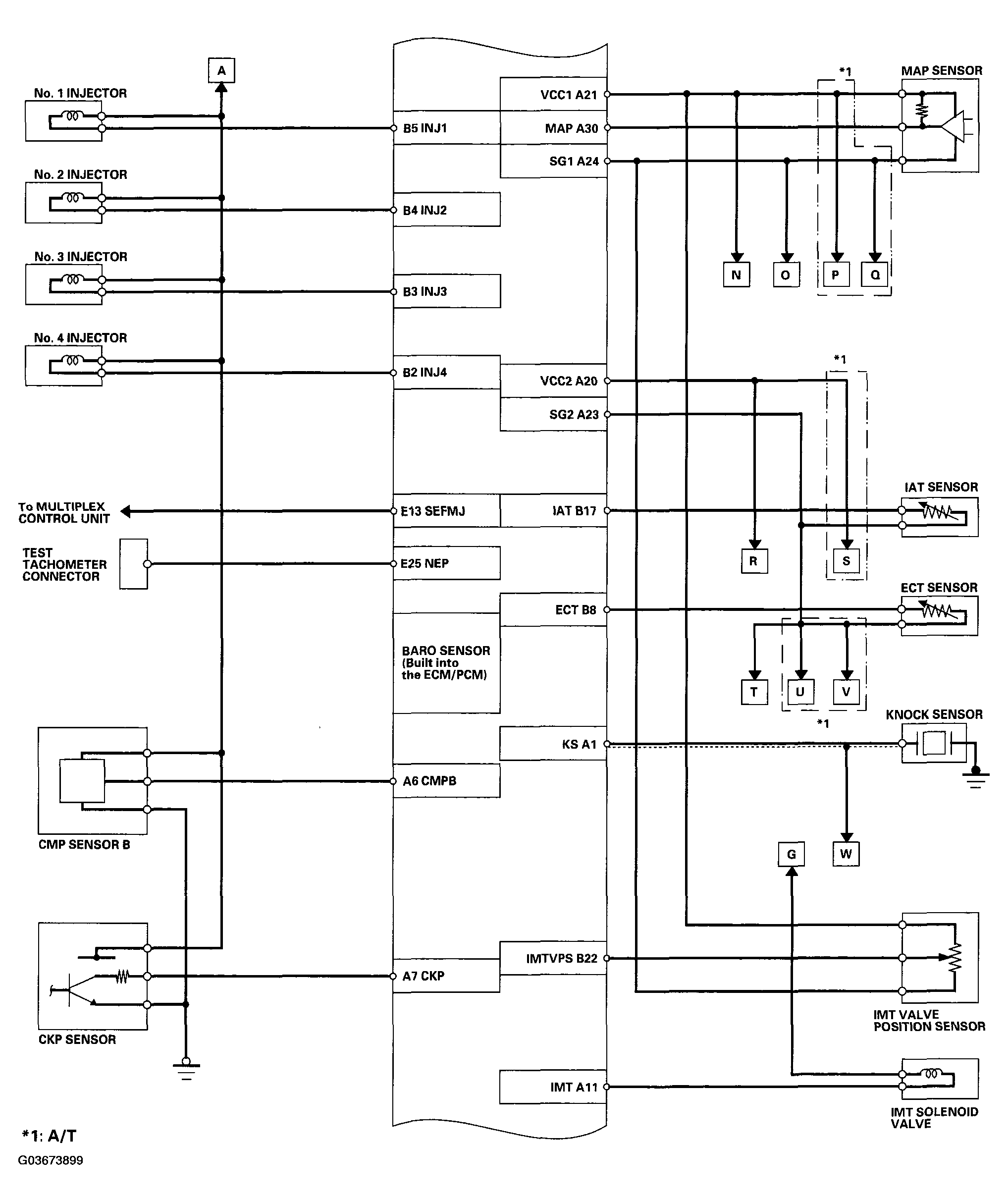

Fig 3: Wiring Diagram (ECM/PCM Electrical Connections) (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

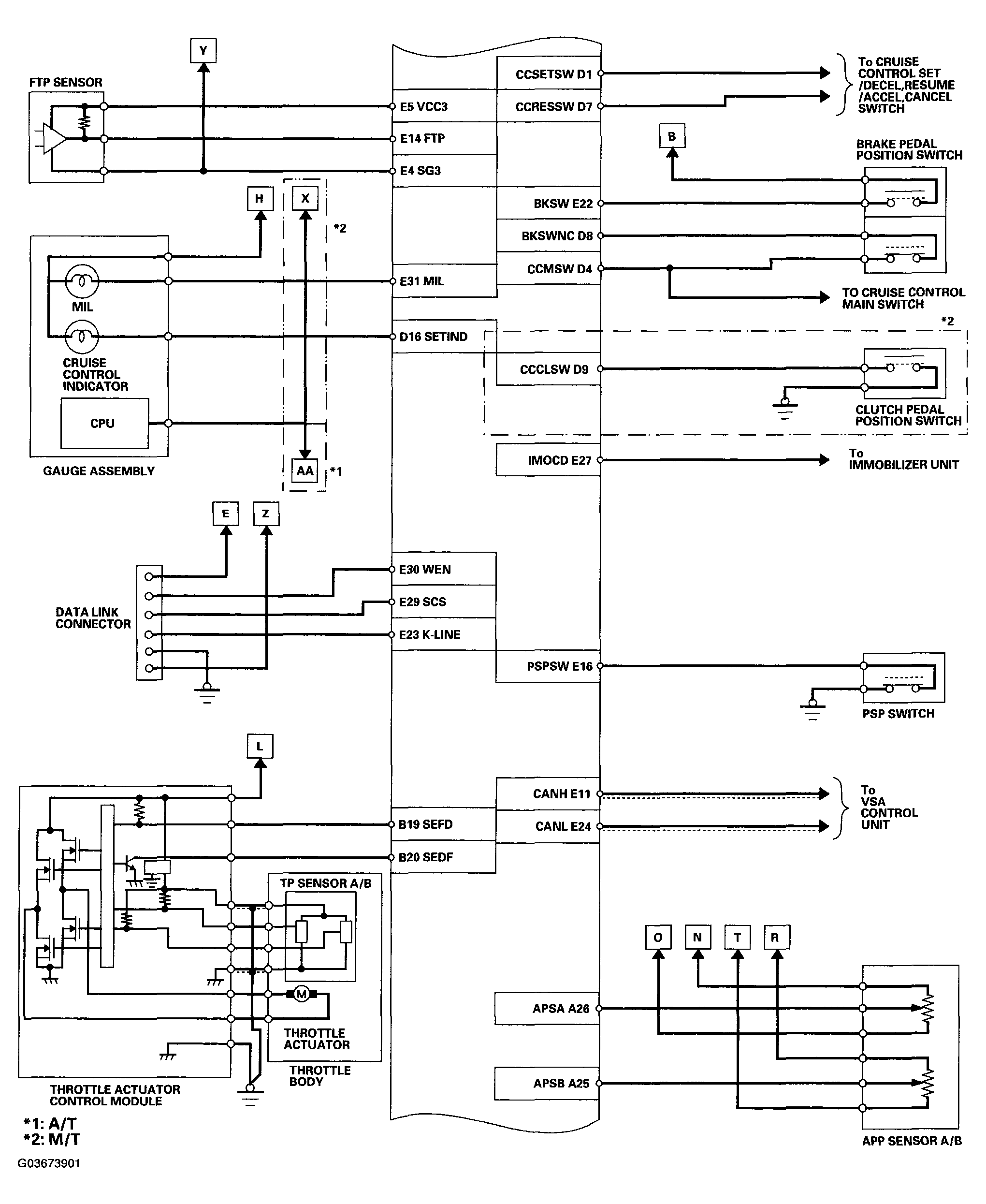

Fig 4: Wiring Diagram (ECM/PCM Electrical Connections) (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

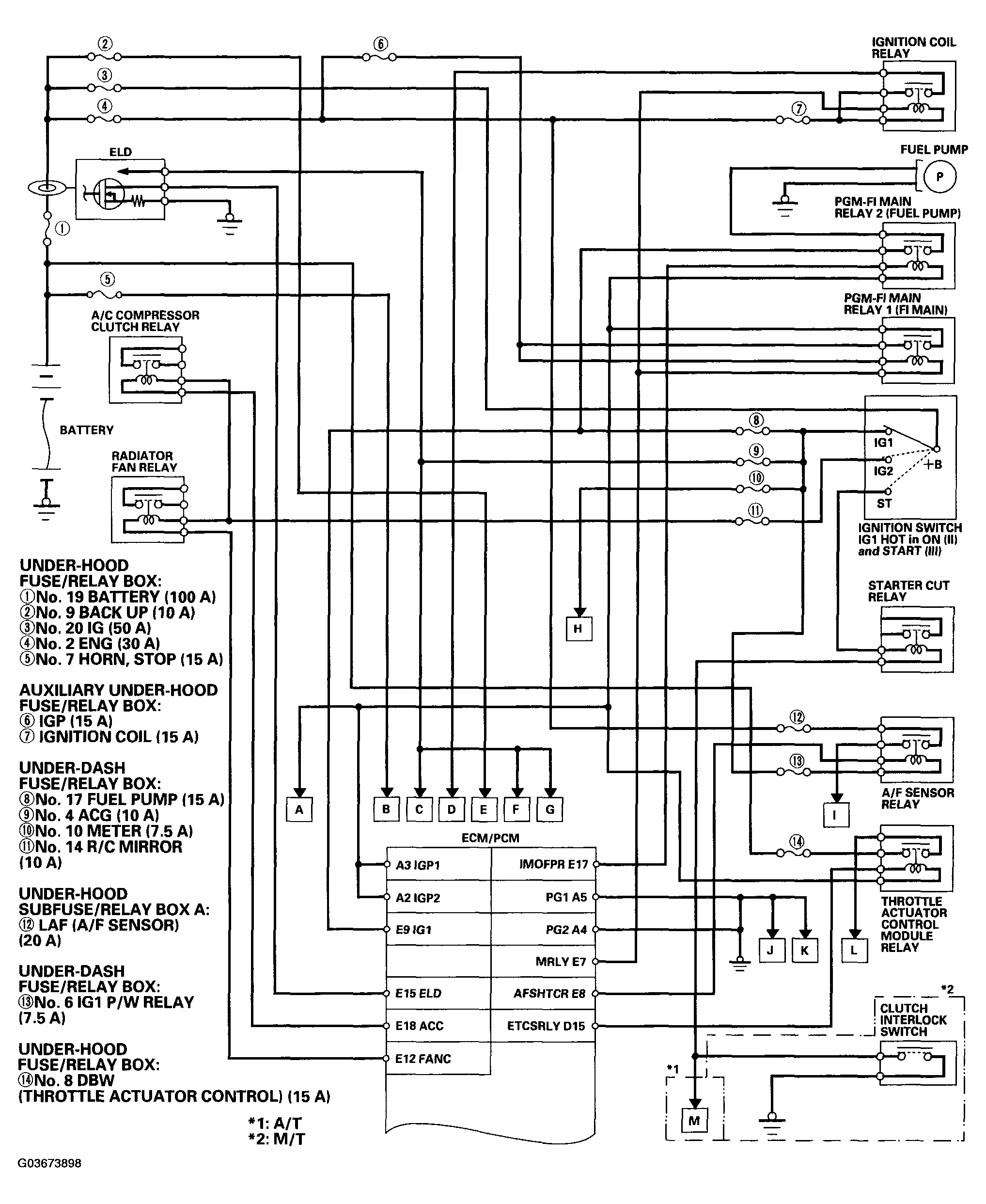

Fig 5: Wiring Diagram (ECM/PCM Electrical Connections) (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
