Oil Pan Installation

  1. Remove any old liquid gasket from the oil pan mating surfaces, bolts, and bolt holes.
  2. Clean and dry the oil pan mating surfaces.
  3. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0002,08718-0003, or 08718-0009, evenly to the engine block mating surface of the oil pan.
    NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket.
    Fig 1: Applying Liquid Gasket
    G03673788Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the oil pan.
  5. Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 N.m (1.2 kgf.m, 8.7 lbf.ft).

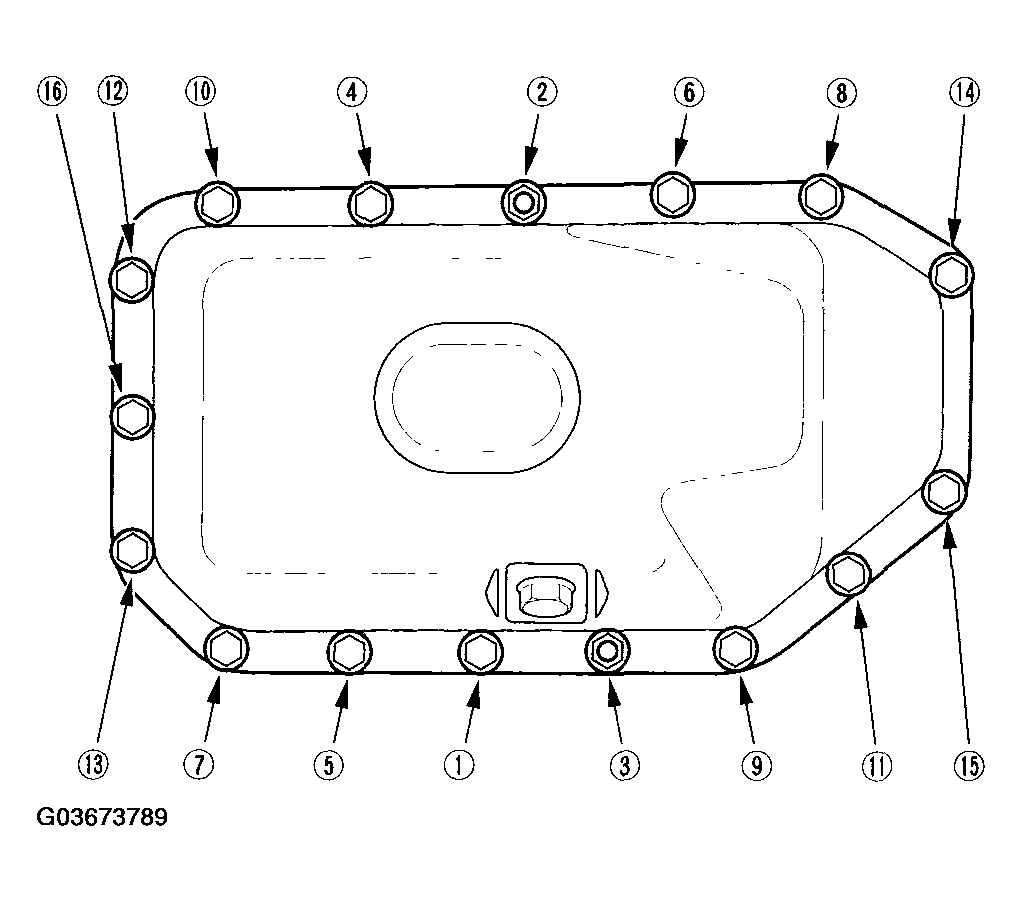

    Fig 2: Tightening Bolts In Steps
    G03673789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the stiffener (M/T).

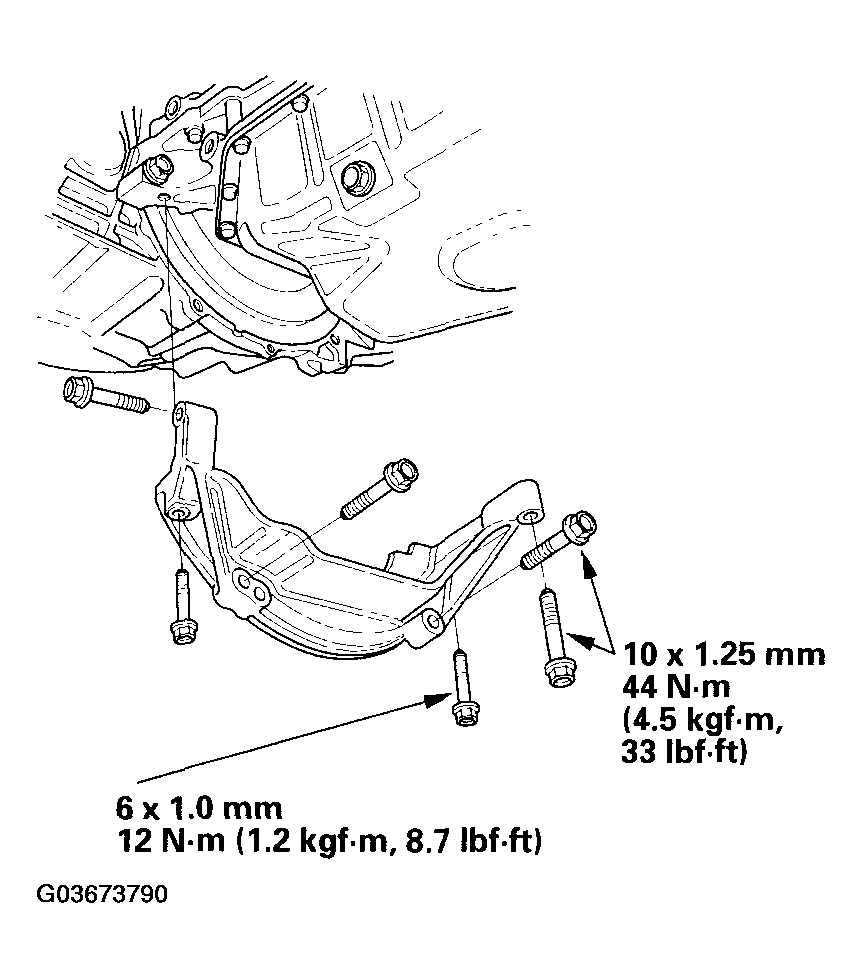

    Fig 3: Installing Stiffener (M/T) With Torque Specifications
    G03673790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. If the engine is still in the vehicle, install the subframe.
    • 1 Support the subframe with the special tool and a jack, and lift it up to body, then loosely install the new subframe mounting bolts (see step 4 on ENGINE INSTALLATION )
    • 2 Align the reference marks with the center of the subframe mounting bolts, then tighten the bolts to the specified torque (see step 6 on ENGINE INSTALLATION ).
    • 3 Install the ATF filter mounting bolt (see step 25 on ENGINE INSTALLATION ).
    • 4 Tighten the rear mount mounting bolts (see step 7 on ENGINE INSTALLATION ).
    • 5 Tighten the new front mount mounting bolt (see step 13 on ENGINE INSTALLATION ).
    • 6 Connect the suspension lower arm ball joints (see step 10 on KNUCKLE AND HUB REPLACEMENT ).
  8. After assembly, wait at least 30 minutes before filling the engine with oil.
