Engine Compression Inspection

NOTE: After this inspection, you must reset the engine control module (ECM)/powertrain control module (PCM), otherwise the PCM will continue to stop the injectors from functioning. Select ECM/PCM reset using the Honda Diagnostic System (HDS) (see ECM/PCM RESET ).

Warm up the engine to normal operating temperature (cooling fan comes on).
Turn the ignition switch OFF.
Remove the intake manifold cover (see step 1).
Connect the HDS to the data link connector (DLC) (see step 2 on HOW TO USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ).
Turn the ignition switch ON (II), then select PGM-FI, select inspection, then select the ALL INJECTORS OFF function on the HDS.
Remove the four ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).
Remove the four spark plugs.
Attach the compression gauge to the spark plug hole.

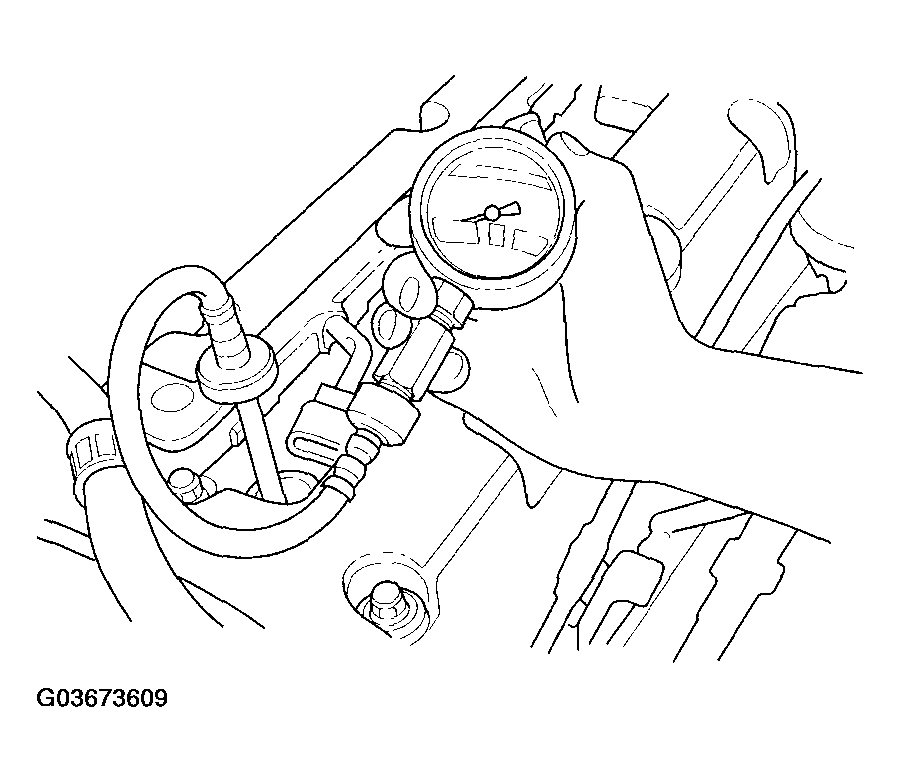

Fig 1: Attaching Compression Gauge To Spark Plug Hole
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the throttle fully, then crank the engine with the starter motor and measure the compression.
Compression Pressure:

Above 930 kPa (9.5 kgf/cm ² , 135 psi)
Measure the compression on the remaining cylinders.
Maximum Variation:

Within 200 kPa (2.0 kgf/cm ² , 28 psi)
If the compression is not within specifications, check the following items, then remeasure the compression.
- Damaged or worn valves and seats
- Damaged cylinder head gasket
- Damaged or worn piston rings
- Damaged or worn piston and cylinder bore
Remove the compression gauge from the spark plug hole.
Install the four spark plugs (see SPARK PLUG INSPECTION ).
Install the four ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).
Select ECM/PCM reset to stop the ALL INJECTORS OFF function on the HDS.
Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
