Alternator Removal and Installation: Installation

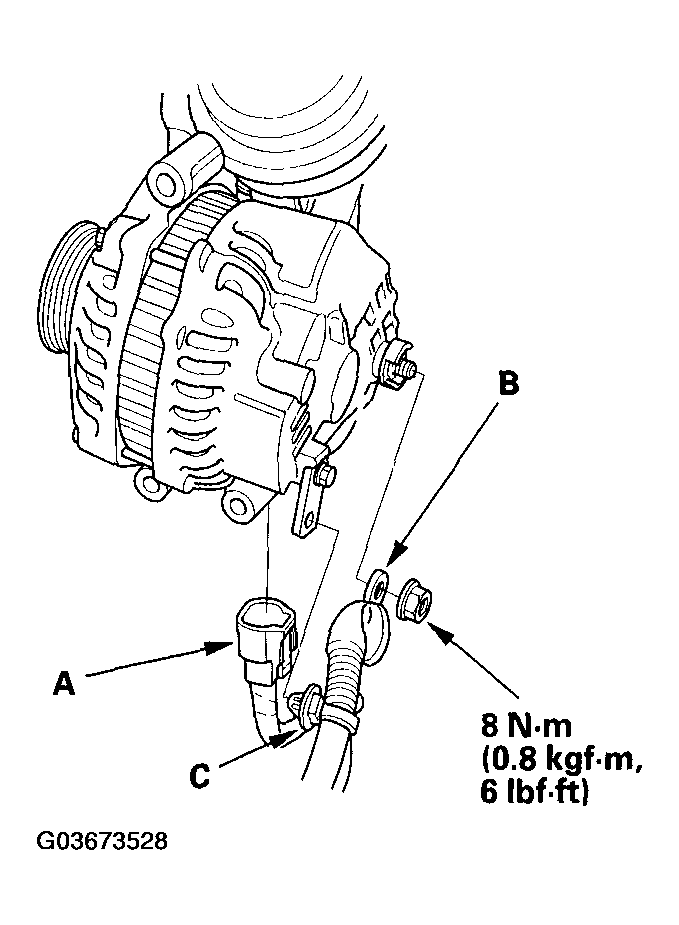

Install the alternator connector (A) and BLK wire (B), and install the harness clamp (C) from the alternator.

Fig 1: Installing Alternator Connector, BLK Wire, And The Harness Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

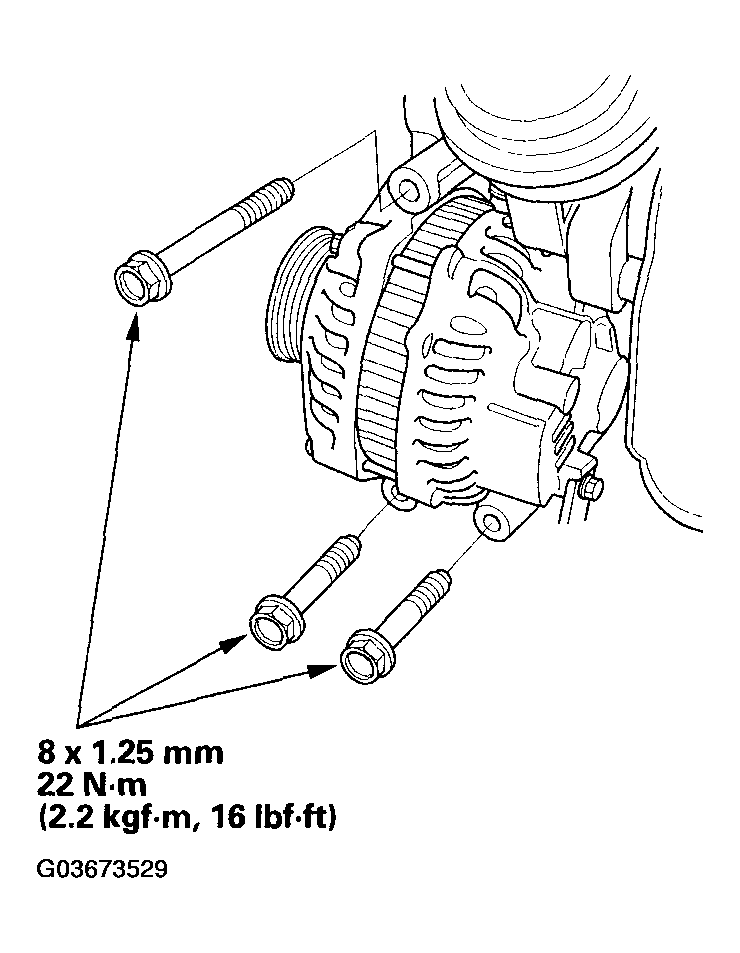

Install the three bolts securing the alternator.

Fig 2: Installing Three Bolts Securing Alternator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner (see ALTERNATOR OVERHAUL ).
Install the drive belt (see DRIVE BELT INSPECTION ).

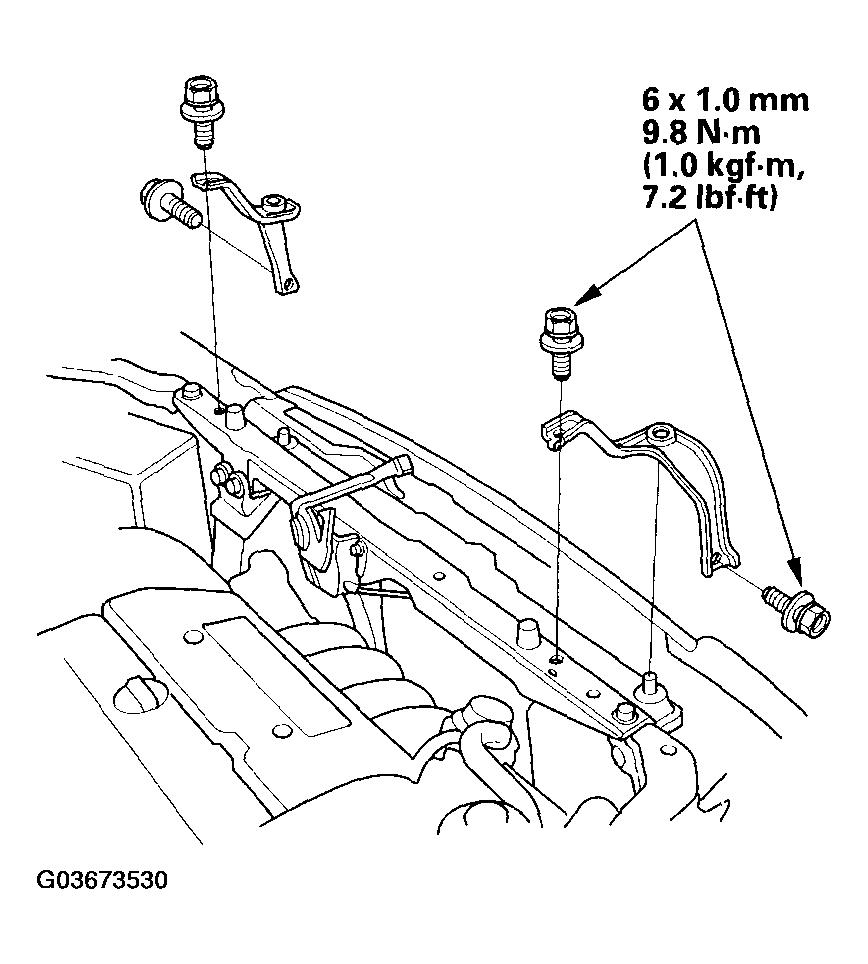

Install the upper brackets and cushions.

Fig 3: Installing Upper Brackets And Cushions With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

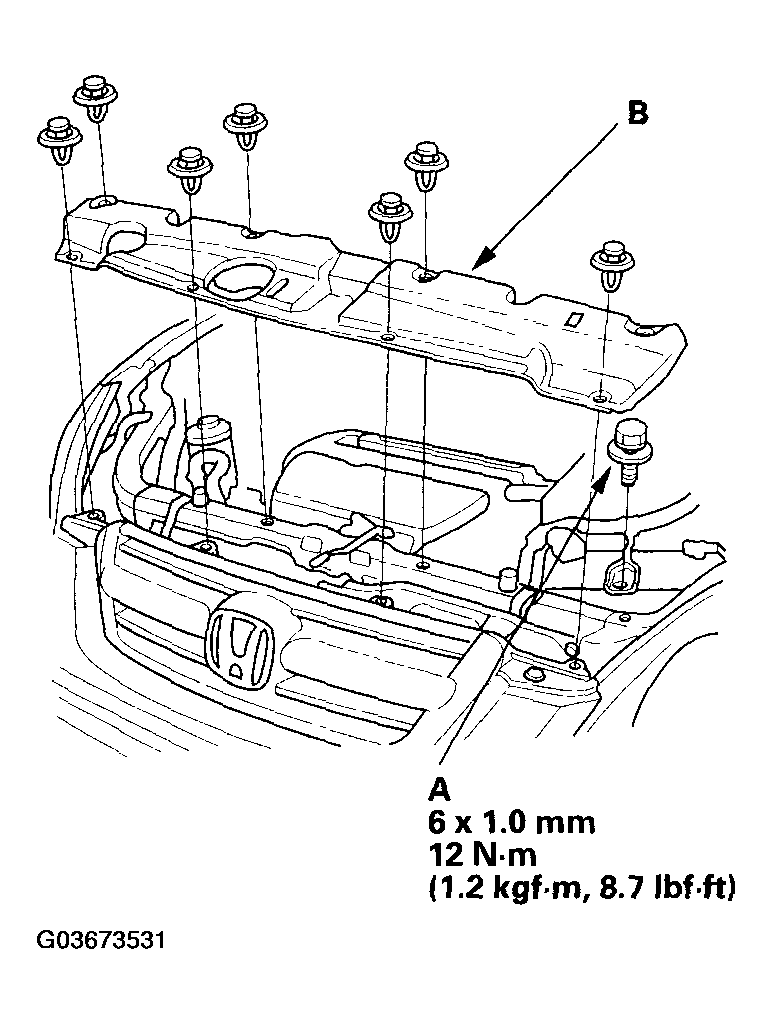

Install the bolt (A) securing the battery clamp, then install the bulkhead cover (B).

Fig 4: Installing Bolt And Bulkhead Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the positive cable to the battery first, then connect the negative cable.
Enter the anti-theft codes for the radio, then enter the customer's audio presets.
Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
Set the clock.
