Accessory Power Socket Test/Replacement: Rear

Carefully pry the accessory power socket out from the left rear side trim panel.

Fig 1: Removing Power Socket From Left Rear Side Trim Panel (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector from the socket.

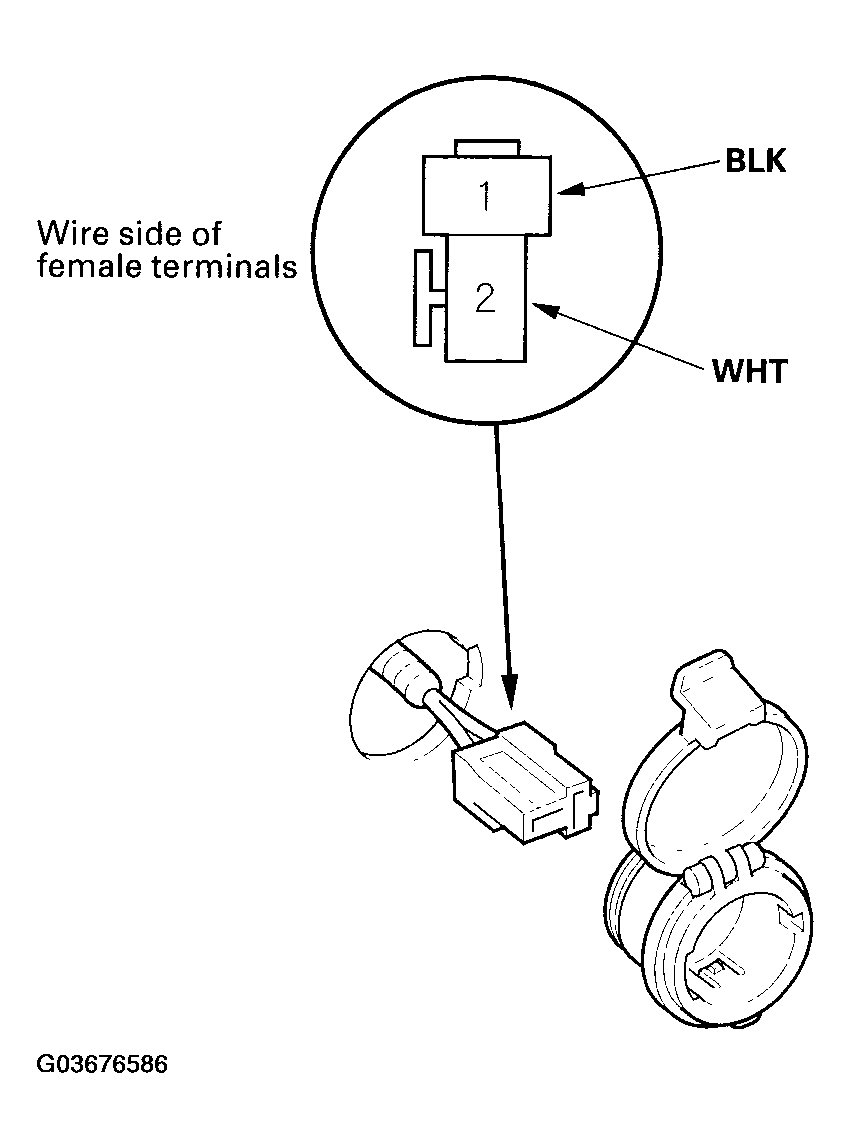

Fig 2: Disconnecting 2P Connector From Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck.
- If the terminals look OK, go to step 4.
Turn the ignition switch to ACC (I), and check for voltage between the No. 1 and No. 2 terminals.
- There should be battery voltage.
- If there is no battery voltage, check for:
  - Poor ground (G451, G601, G701).
  - An open in the wire.
  - Blown No. 18 (15 A) fuse in the under-dash fuse/relay box.
  - Blown No. 2 (10 A) fuse in the under-dash fuse/relay box.
  - Faulty rear accessory power socket relay.
