Hatch Glass Weatherstrip Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the tailgate.
  1. Remove the tailgate side trim from both sides (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Remove the high mount brake light (see HIGH MOUNT BRAKE LIGHT REPLACEMENT ).
  3. Disconnect the rear window defogger connectors, and release the wire harnesses from both sides (see step  3 ).
  4. Remove the hatch glass support strut brackets from both sides of the tailgate (see step  4 ).
  5. With an assistant, holding the hatch glass, remove the hatch glass weatherstrip (A) by pulling out on it.
    Fig 1: Removing Hatch Glass Weatherstrip
    G03676060Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Clean the bonding surface around the hatch glass opening flange with alcohol.
  7. Apply sealant (Cemedine P/N 08712-0004, or equivalent) (A) in the groove around the hatch glass weatherstrip (B).

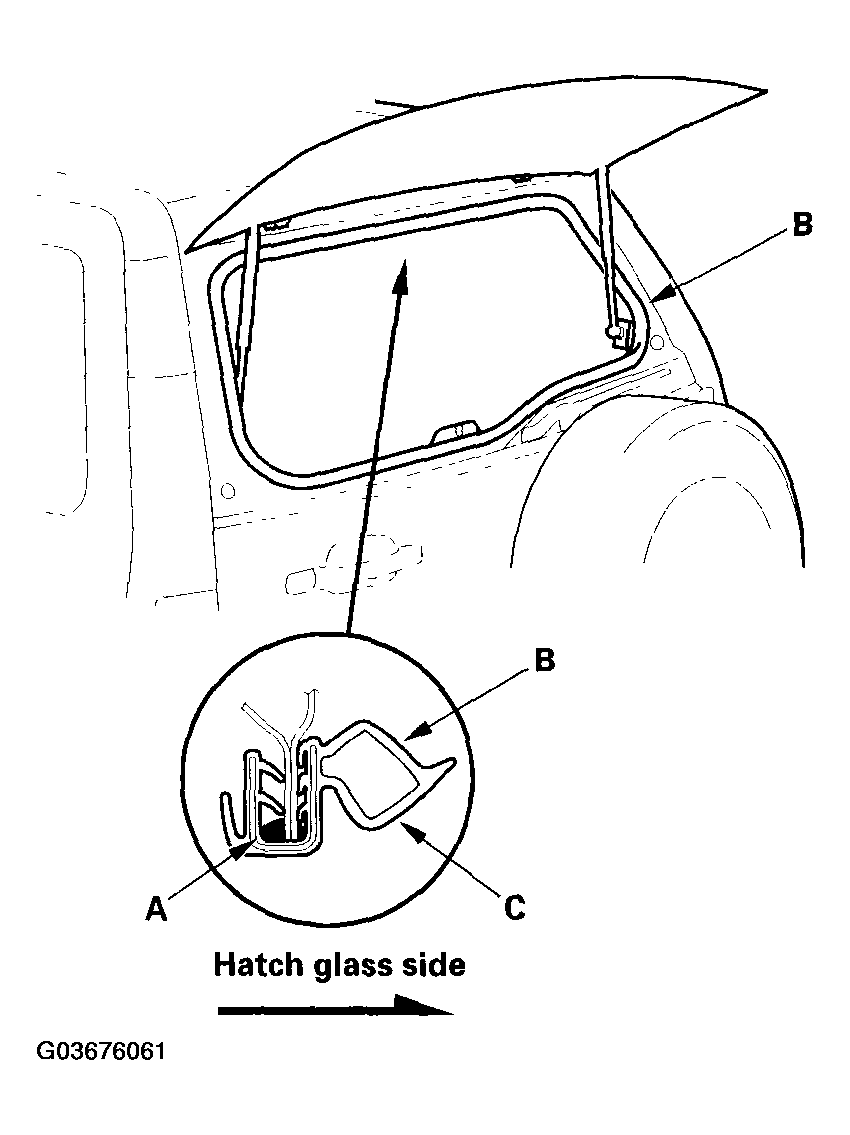

    Fig 2: Applying Sealant
    G03676061Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Locate the painted alignment mark (C) on the hatch glass weatherstrip. Align the painted mark with the alignment tab in the center of the hatch glass opening, and install the weatherstrip. Make sure it's seated completely and facing in the direction shown. Make sure there are no wrinkles in the weatherstrip.
  9. Check for water leaks (see step  9 ).
