Circuit Diagram: Notes

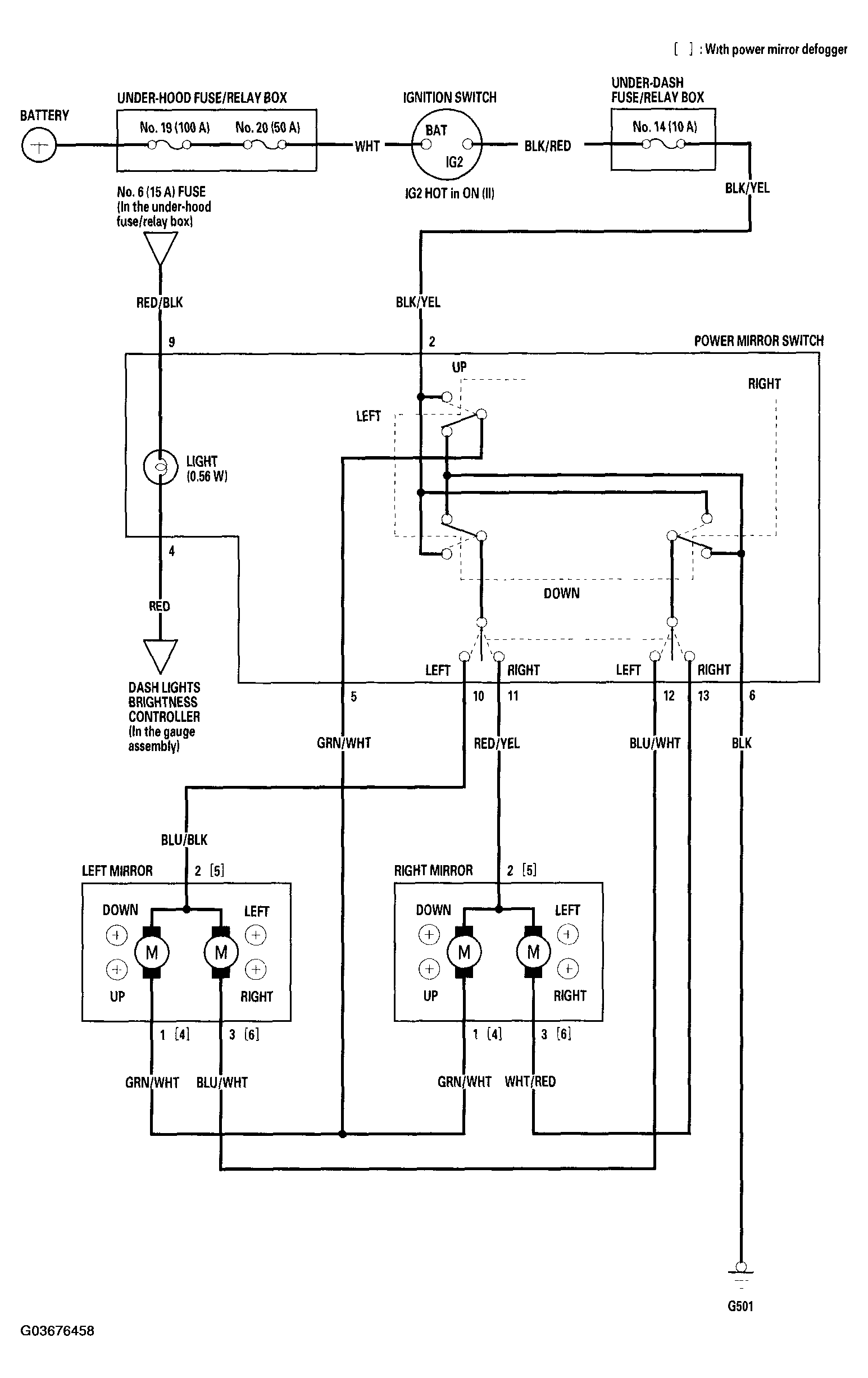

Fig 1: Power Mirrors Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
