Frame Repair Chart
>>
Top View
Top View

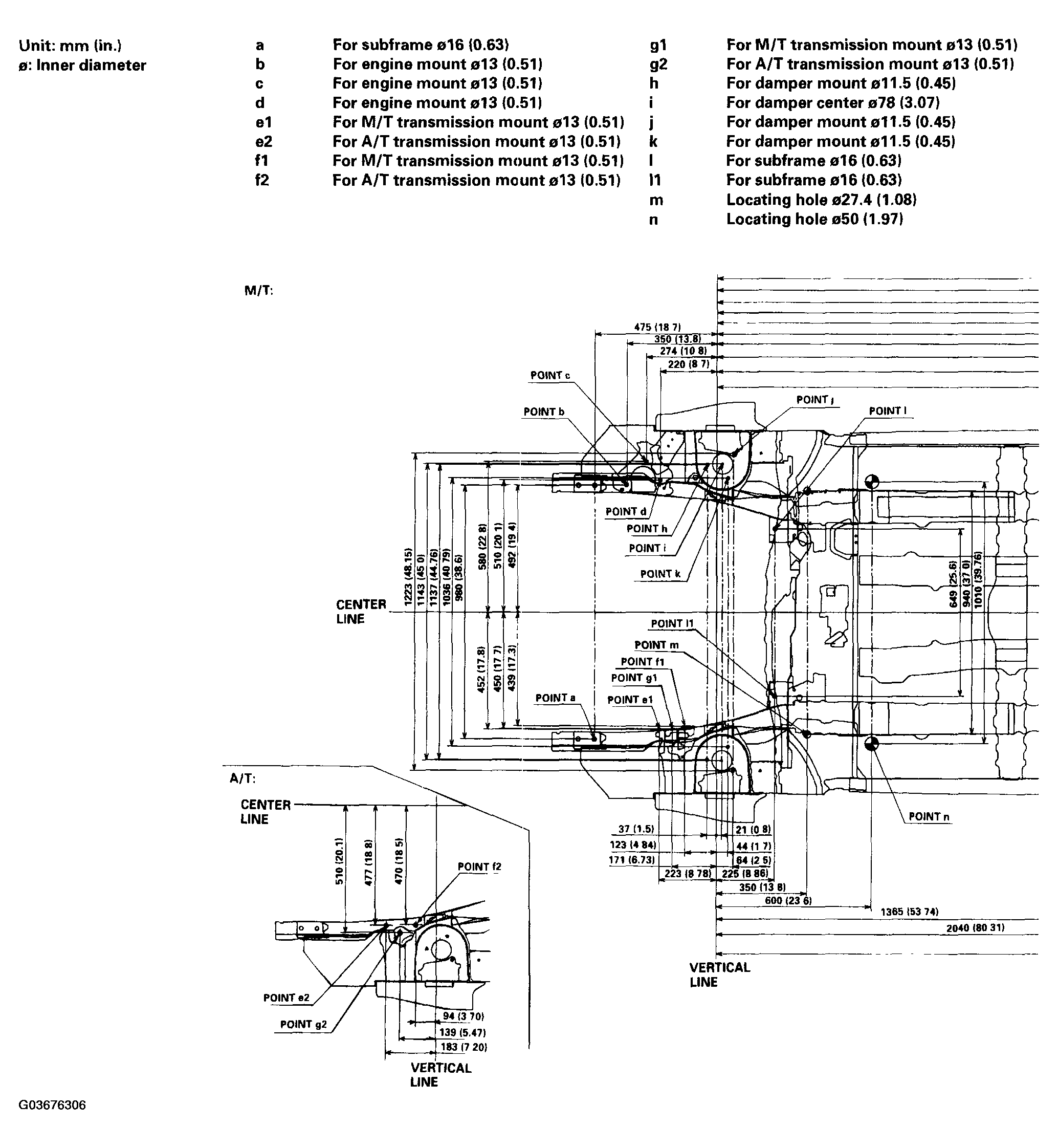

Fig 1: Frame Repair Chart (Top View) (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

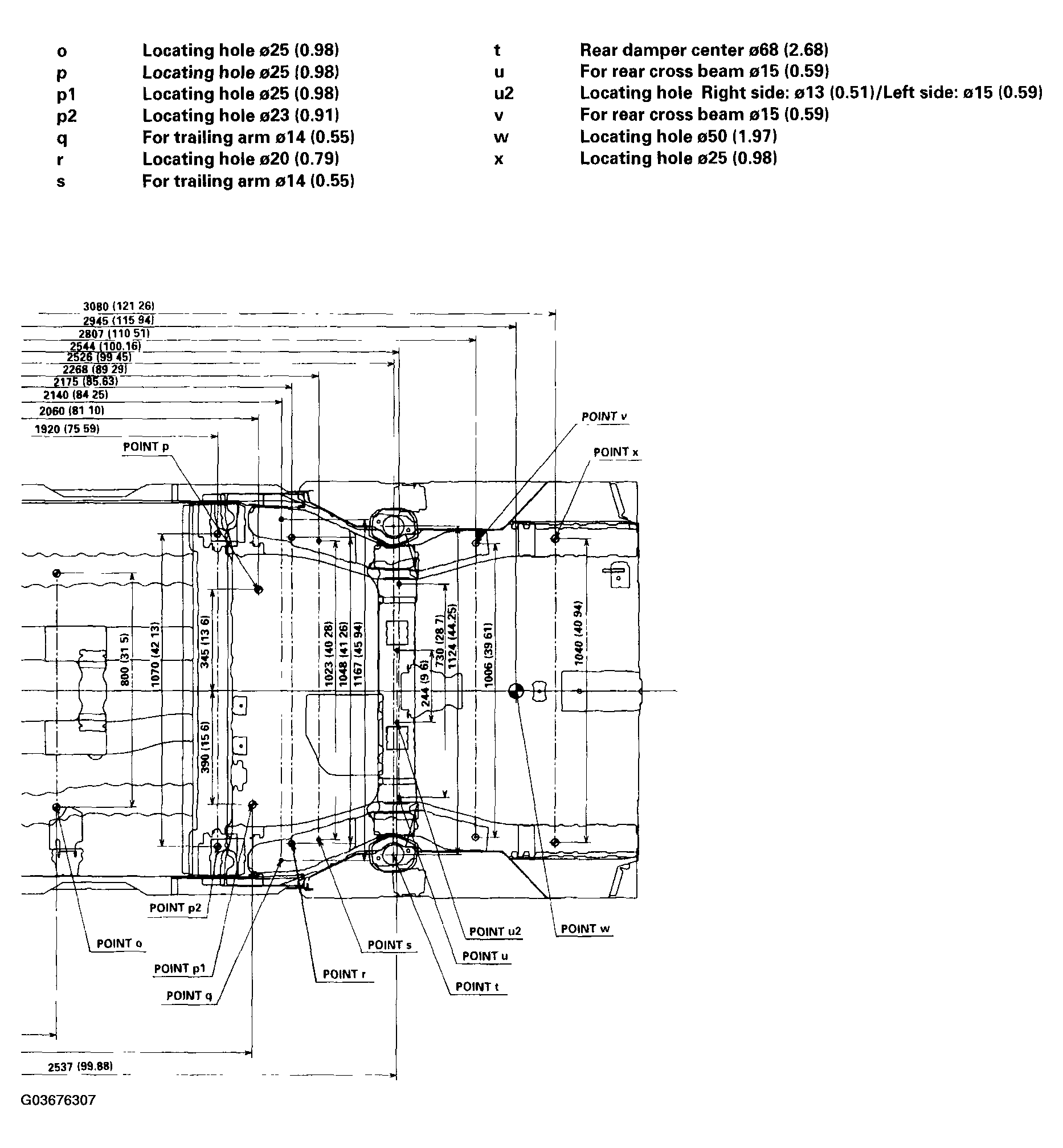

Fig 2: Frame Repair Chart (Top View) (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
