Tailgate Handle Replacement

NOTE:

Take care not to scratch the tailgate.
Put on gloves to protect your hands.

Remove the tailgate stop assembly (see TAILGATE STOP ASSEMBLY REPLACEMENT ).

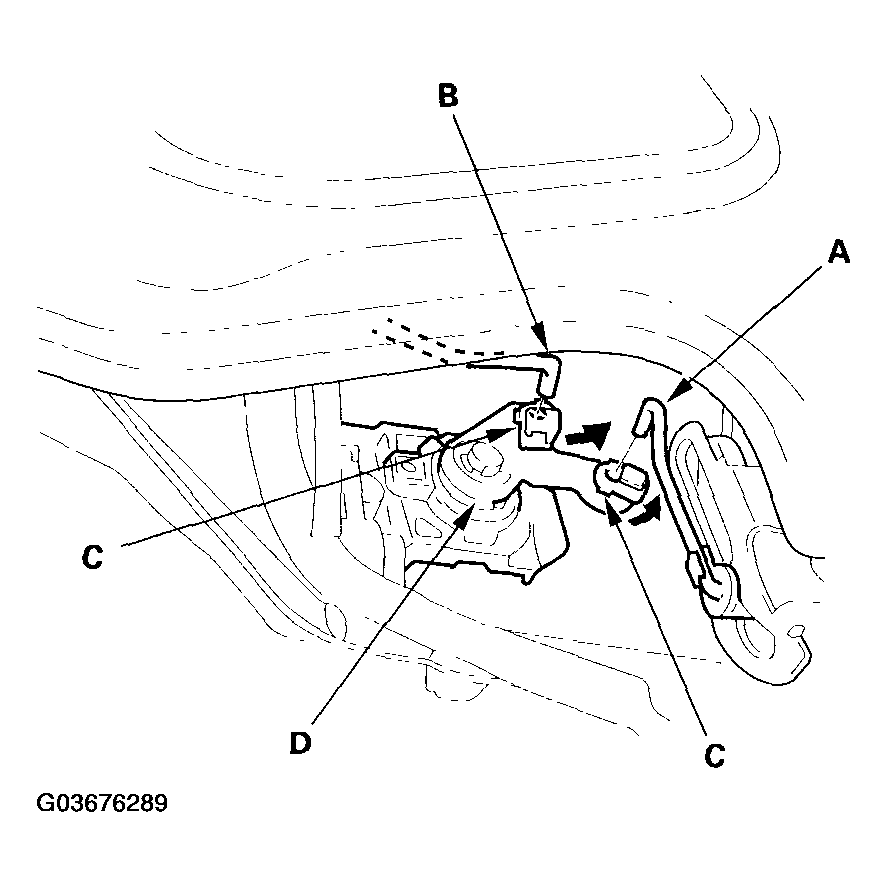

Disconnect the cylinder rod (A) and the hatch glass open rod (B) from the clips (C) of the tailgate lock cylinder (D).
NOTE: Check for damaged clips, and replace it if necessary.

Fig 1: Disconnecting The Cylinder Rod And The Hatch Glass Open Rod From The Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

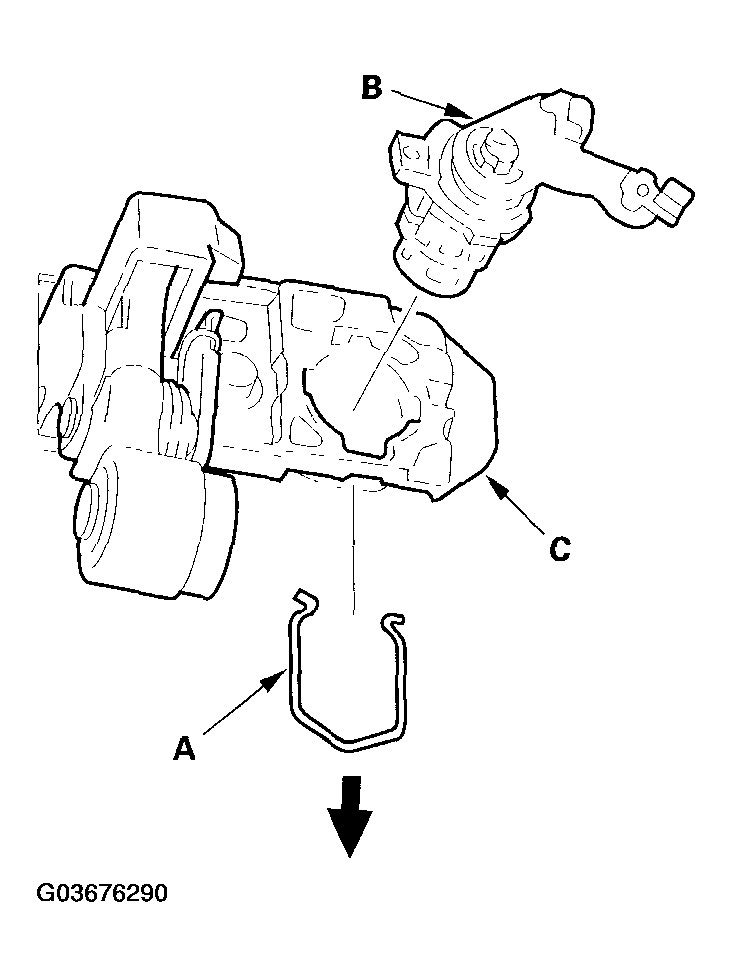

Release the retainer clip (A) with a hook-shaped tool, then remove the lock cylinder (B) from the tailgate handle (C).

Fig 2: Releasing The Retainer Clip And Lock Cylinder From Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

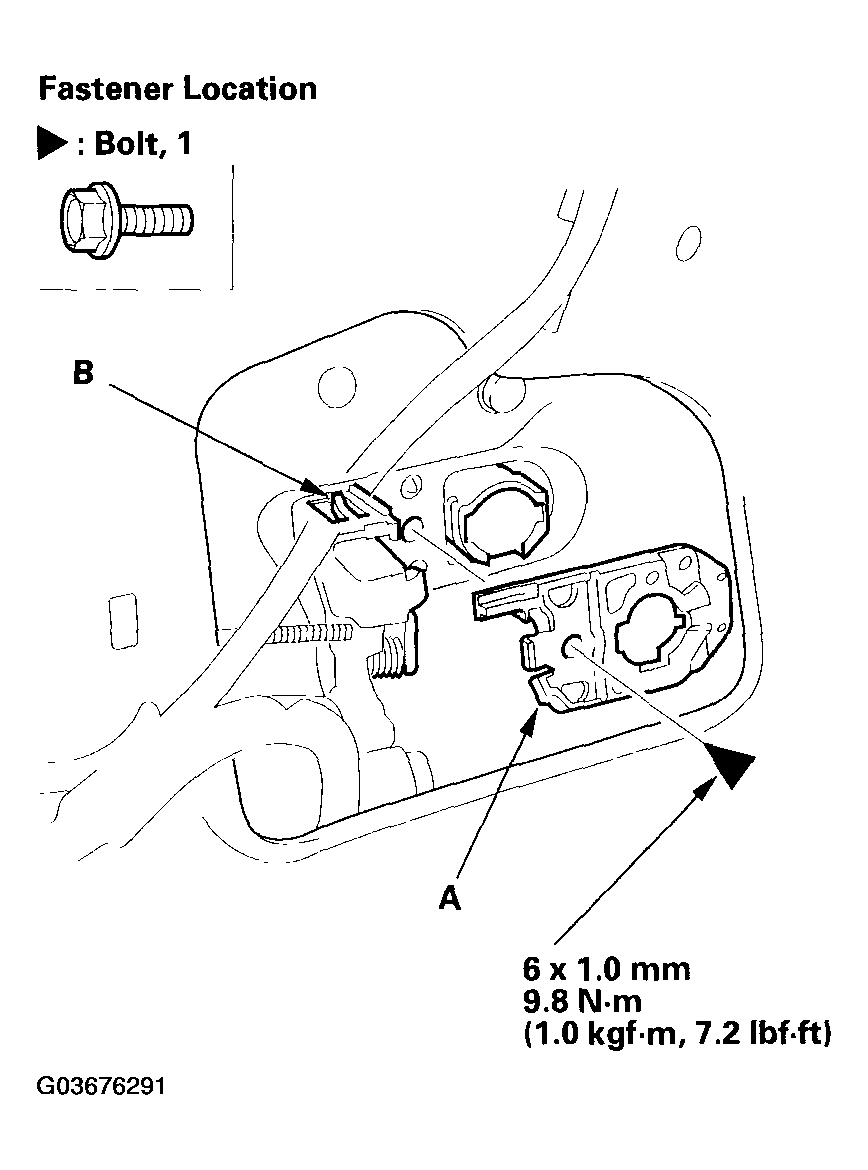

Remove the bolt securing the cylinder protector (A) and tailgate handle. Release the hook (B), then remove the protector.

Fig 3: Removing The Bolt Securing The Cylinder Protector And Tailgate Handle With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

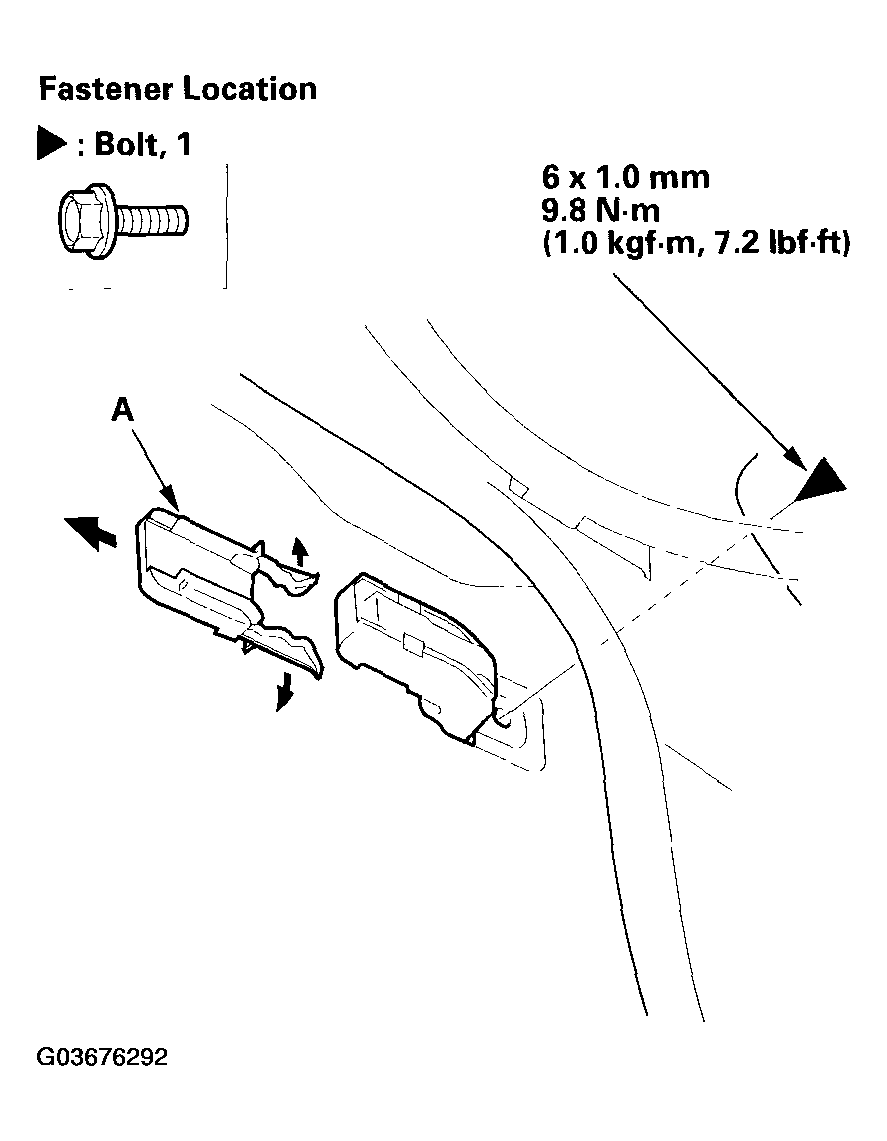

Remove the bolt securing the tailgate handle, and remove the spacer (A).

Fig 4: Removing The Bolt Securing The Tailgate Handle And The Spacer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

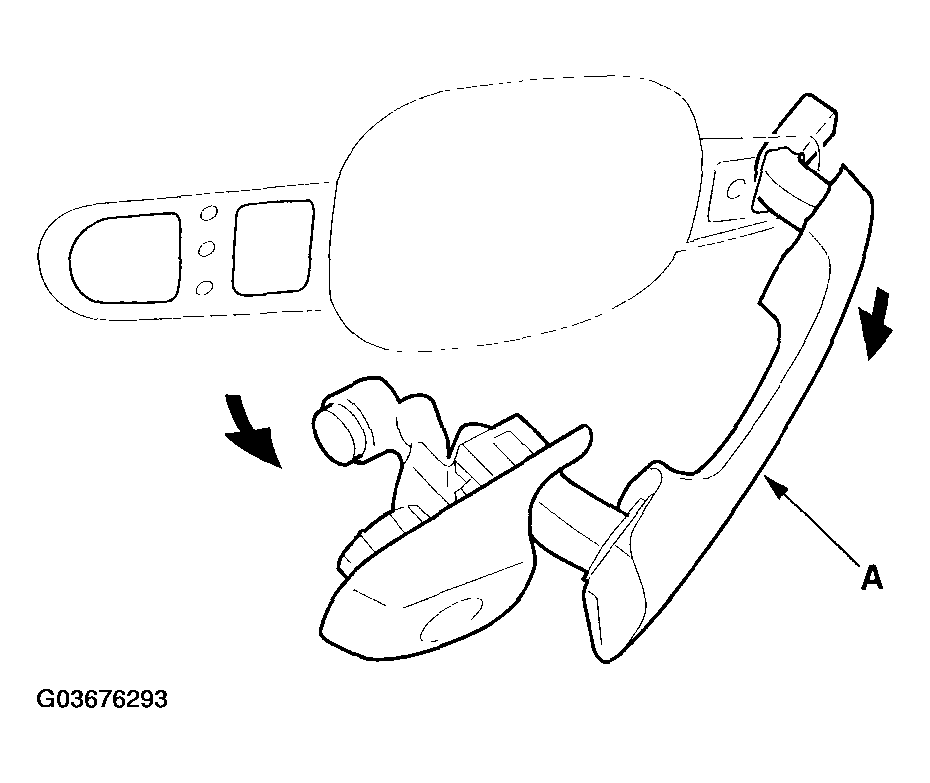

Remove the tailgate handle (A) while pulling it as shown.

Fig 5: Removing The Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tailgate handle in the reverse order of removal, and note these items:
- Make sure each rod is connected securely.
- Make sure the tailgate locks and opens properly.
- Install the lock cylinder retaining clip on the handle, then install the lock cylinder. Be sure the clip is fully seated in the slot on the lock cylinder.
