Hatch Glass Latch Replacement

NOTE:

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the hatch glass latch switch connector (A), hatch glass latch connector (B), and detach the hatch glass latch connector from the tailgate.

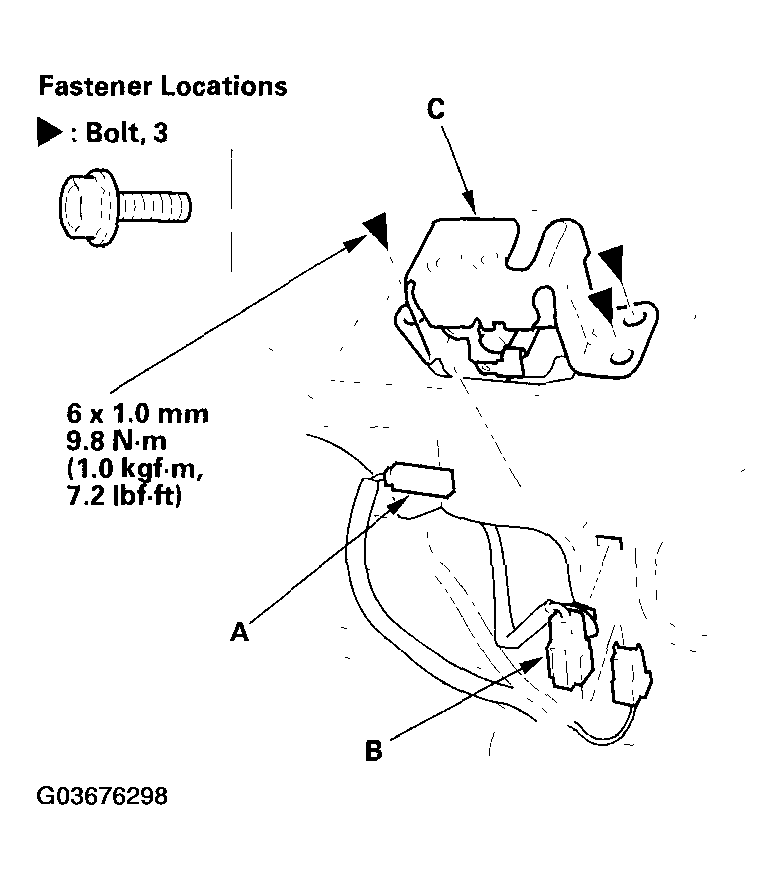

Fig 1: Disconnecting The Hatch Glass Latch Switch Connector And Hatch Glass Latch Connector From Tail Pipe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then pull the hatch glass latch (C) out.
Disconnect the hatch glass rod (A) from the clip (B) of the hatch glass latch (C), than remove the hatch glass latch. Take care not to bend the rod.
NOTE: Check for damaged clips, and replace it if necessary.

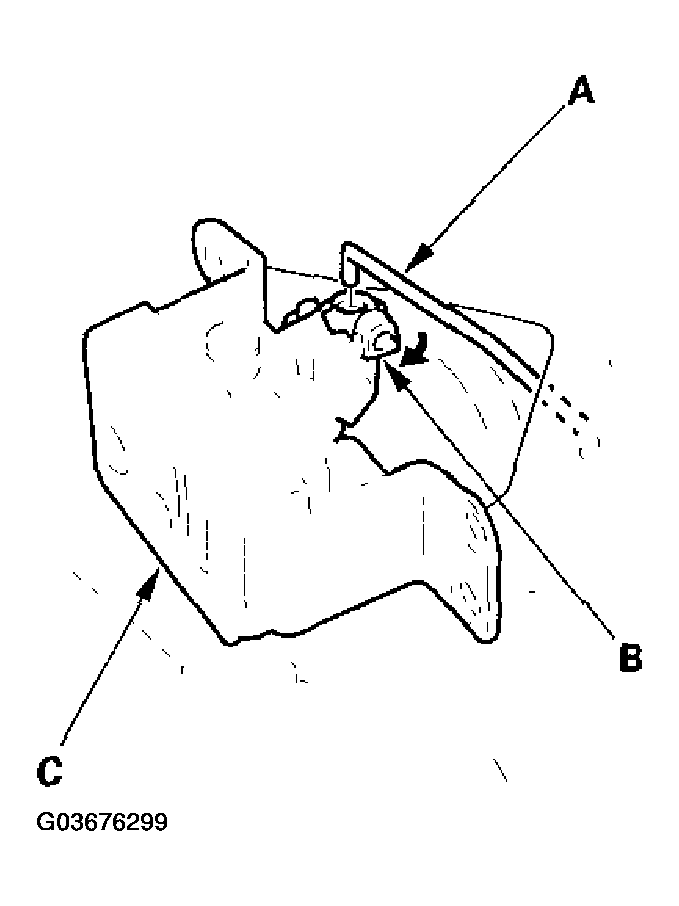

Fig 2: Disconnecting The Hatch Glass Rod From The Clip Of The Hatch Glass Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly, and the rod is connected properly.
- Make sure the hatch glass opens properly and locks securely.
