Wheel Sensor Replacement: Notes

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

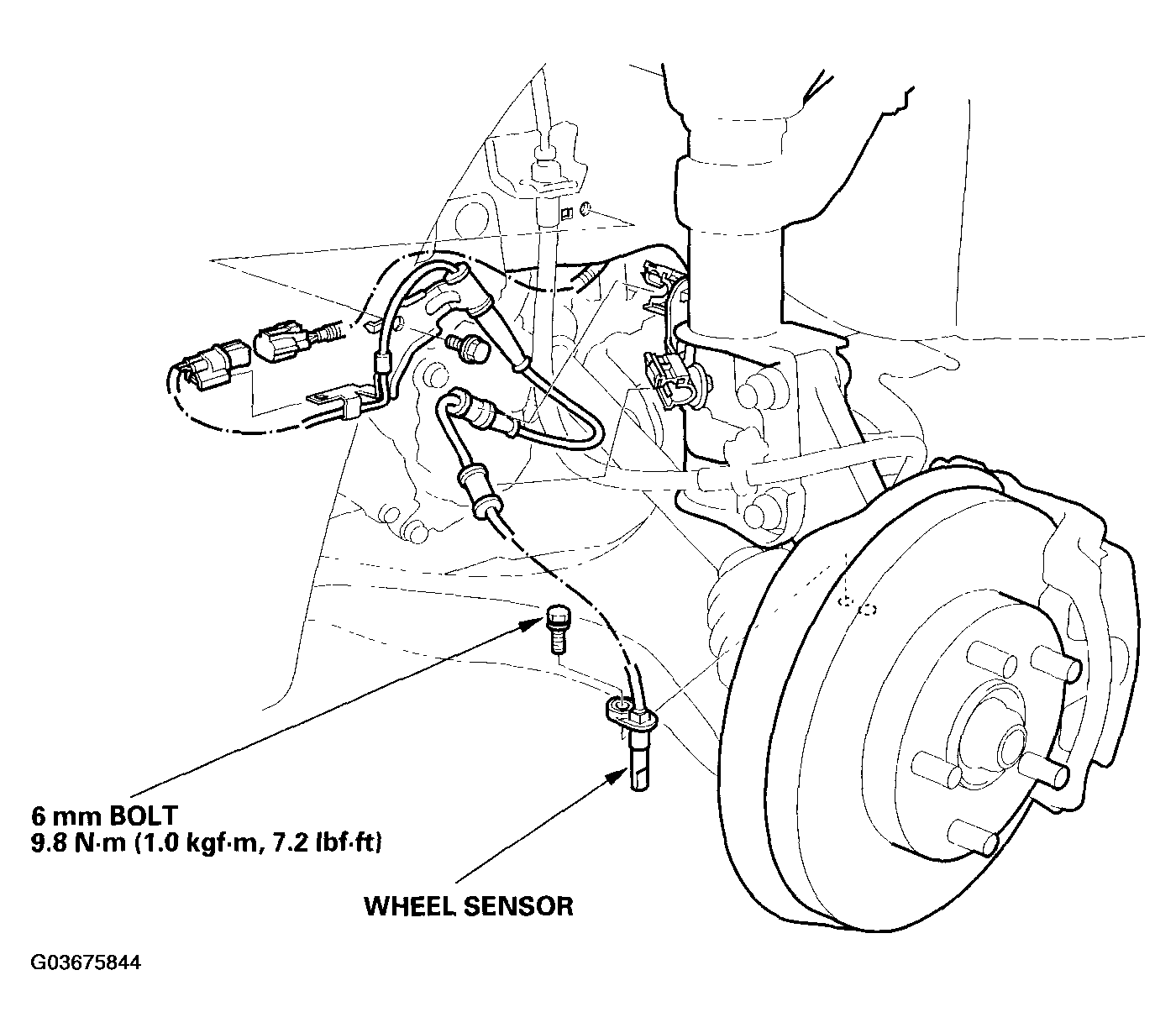

Fig 1: Installing Sensors Carefully To Avoid Twisting Wires (Front) With Torque Specifications
G03675844Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

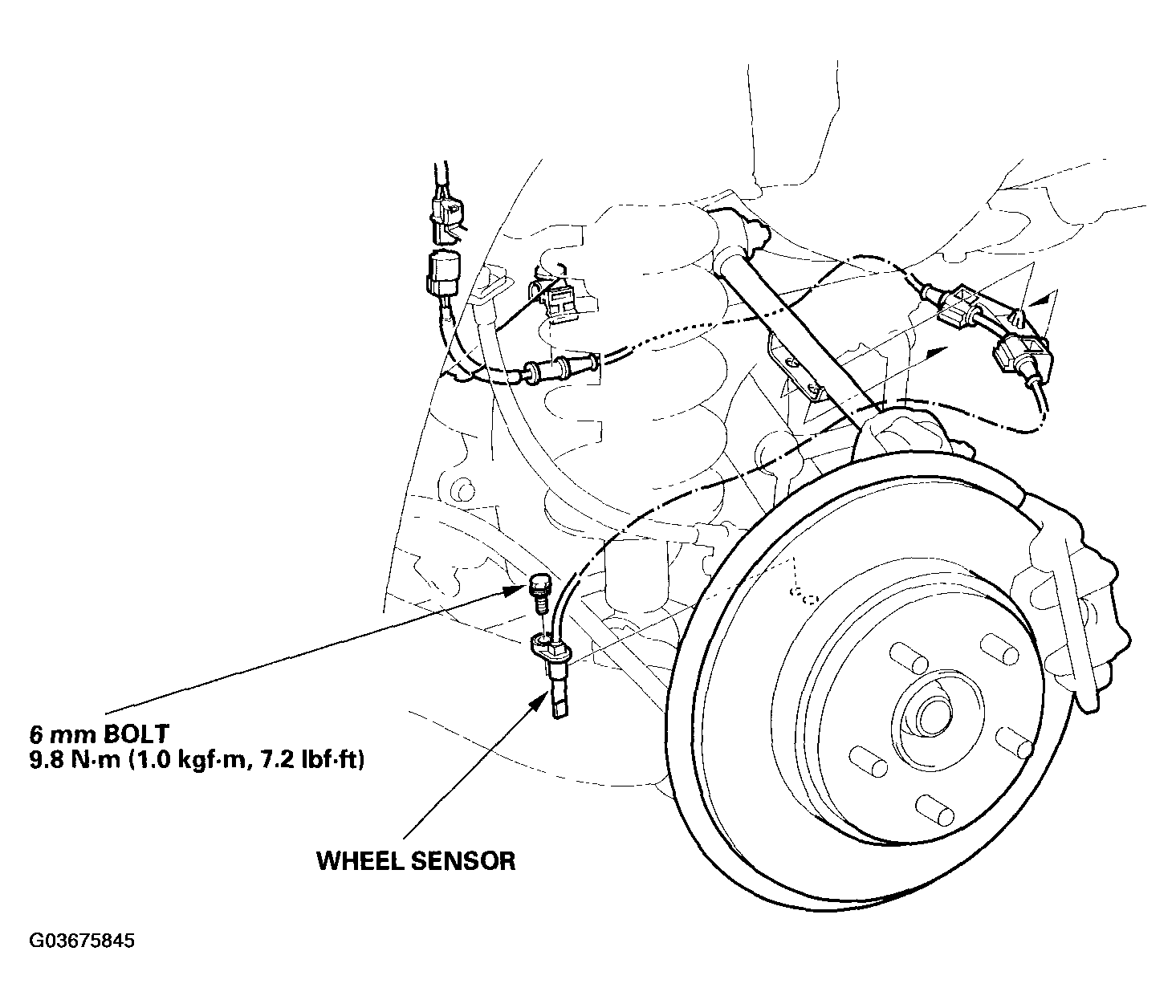

Fig 2: Installing Sensors Carefully To Avoid Twisting Wires (Rear) With Torque Specifications
G03675845Courtesy of AMERICAN HONDA MOTOR CO., INC.
