Drive Belt Replacement

Special Tools Required

Belt tension release tool Snap-on YA9317 or equivalent, commercially available

1. Remove the splash shield (see step 24 on ENGINE REMOVAL ).

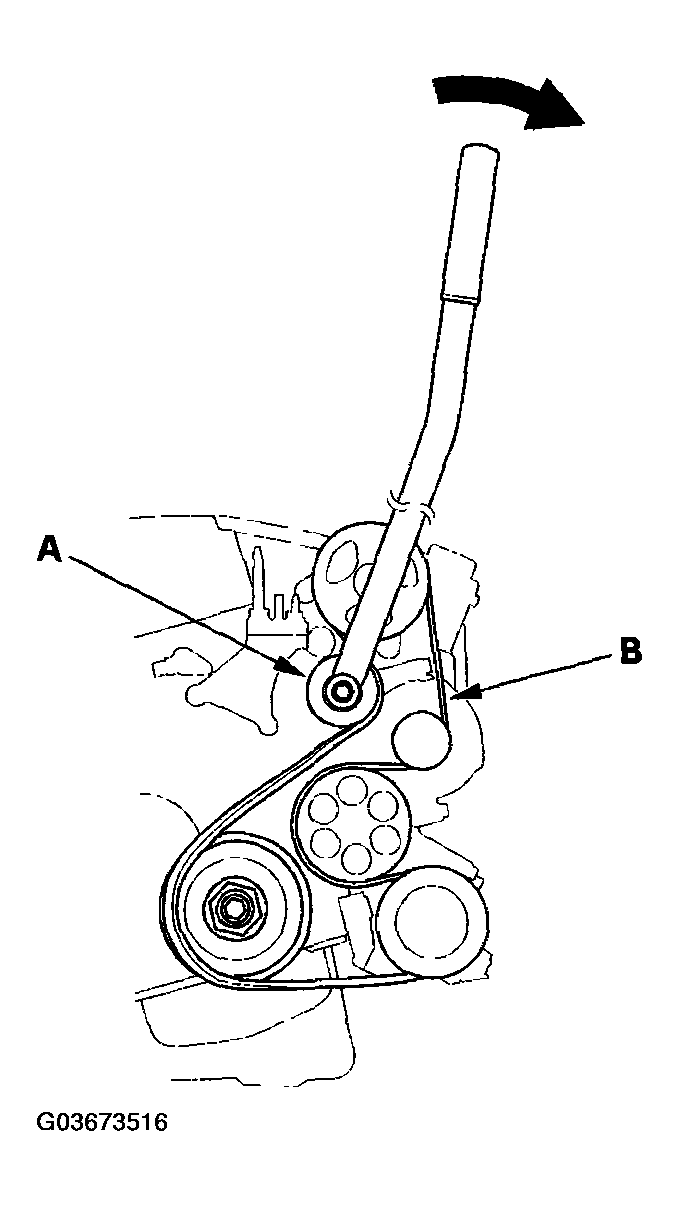

2. Move the auto-tensioner (A) with the tension release tool to relieve tension from the drive belt (B), and remove the drive belt.
   Fig 1: Moving Auto-Tensioner

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new belt in the reverse order of removal.
   NOTE: For belt routing, see the COMPONENT LOCATION INDEX & DRIVE BELT ROUTING
