Shift Lever Disassembly/Reassembly

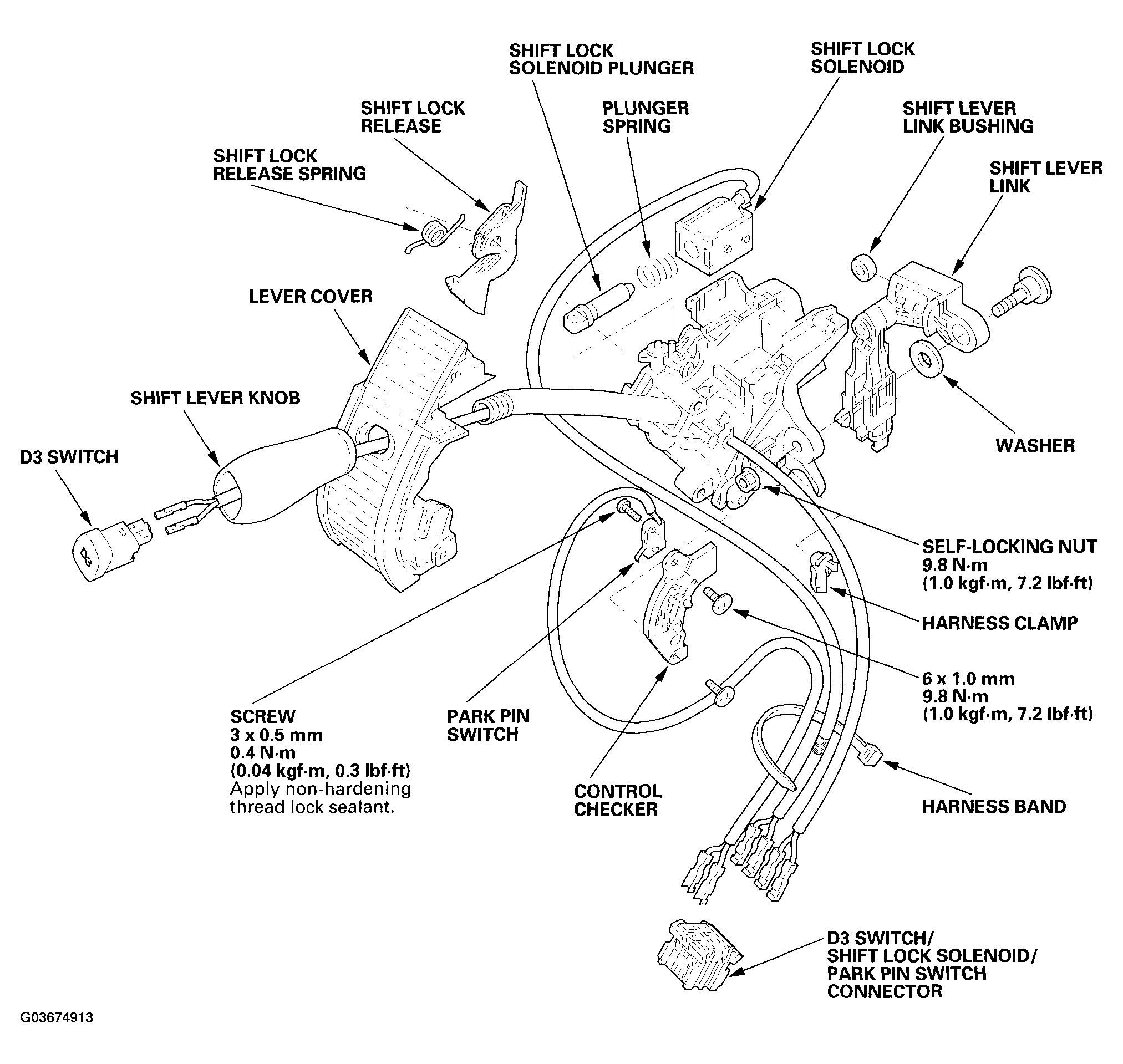

Fig 1: Exploded View Of Shift Lever Assembly Components With Torque Specifications

G03674913

Courtesy of AMERICAN HONDA MOTOR CO., INC.
