Home
>>
Honda
>>
2005
>>
CR-V EX, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel And Emissions Systems
>>
System Description
>>
Vacuum Distribution
Vacuum Distribution

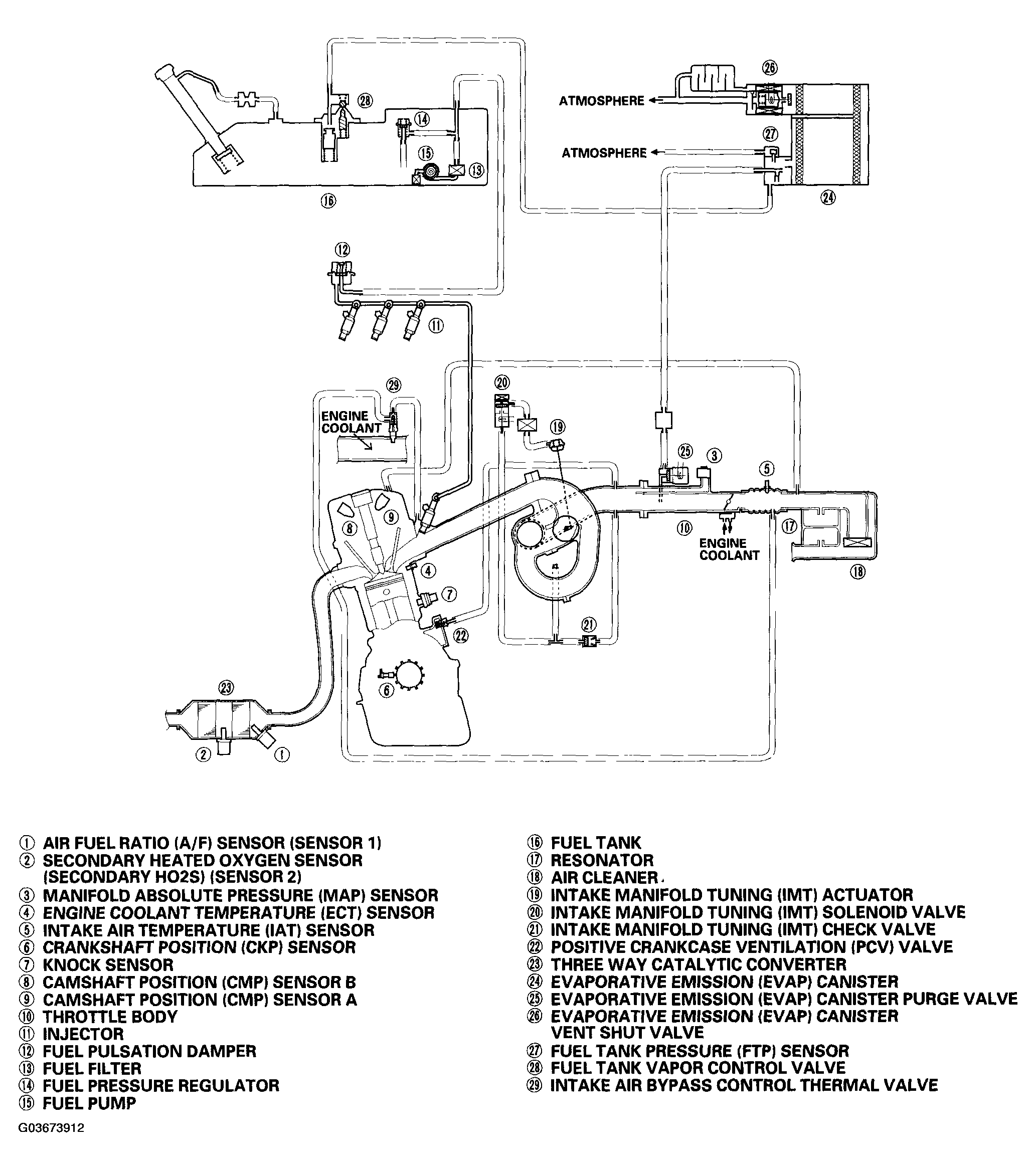

Fig 1: Identifying Fuel And Emission System Vacuum Distribution
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
