Pilot LX
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Generators & Regulators
>>
Trouble Shooting
>>
Charging Circuit
>>
Charging System Indicator Test
Charging System Indicator Test
For charging indicator test, see
Fig 1
.

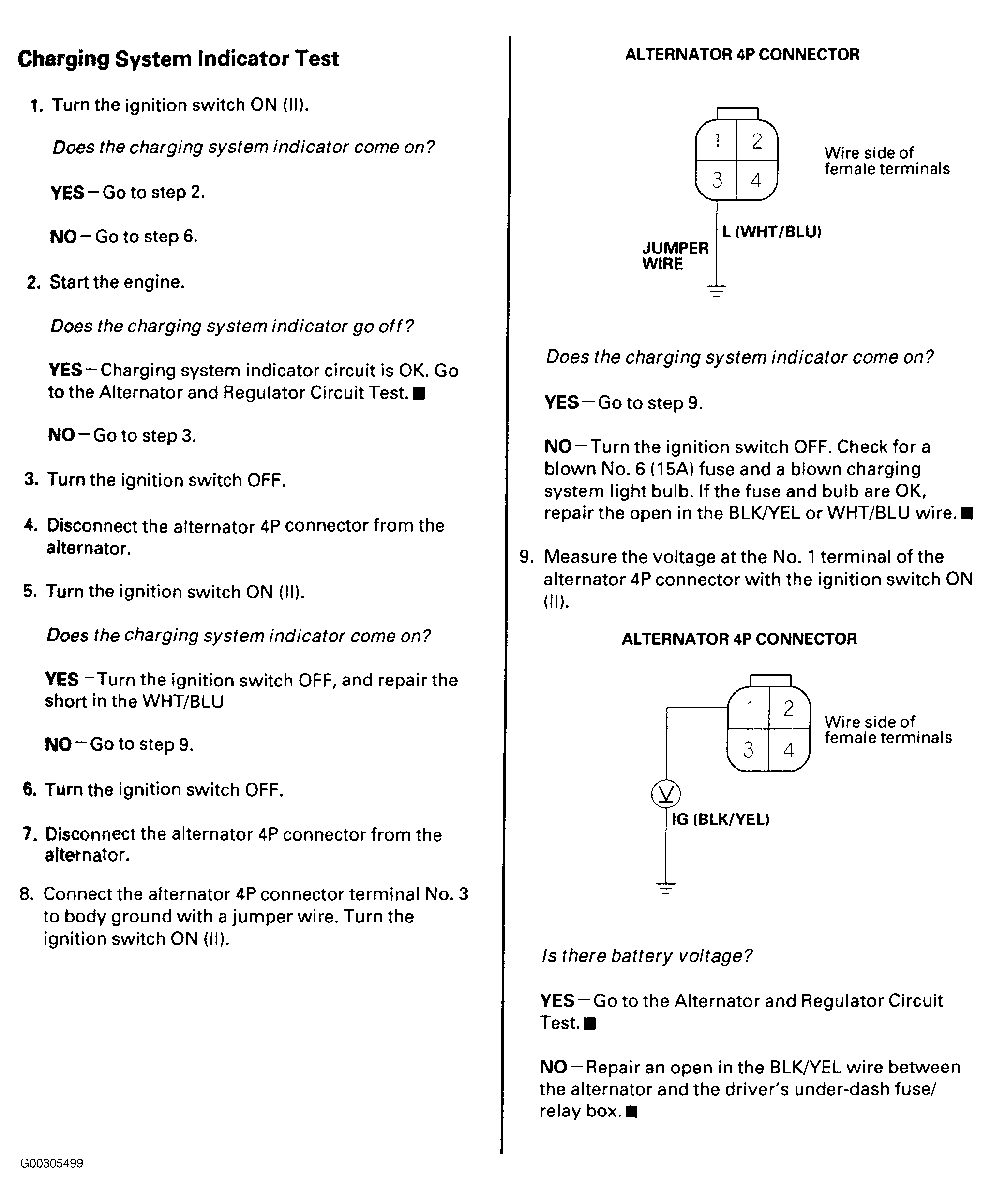

Fig 1: Charging System Indicator Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
