Power Window Switch, Front Passenger's Connector End View

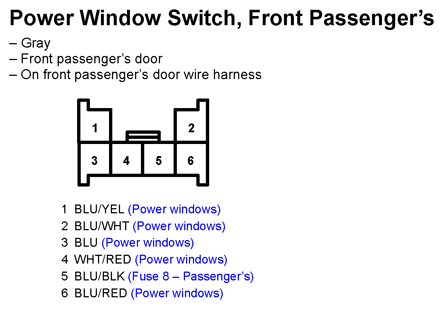

Fig 1: Power Window Switch, Front Passenger's Connector End View

G11251193

Courtesy of AMERICAN HONDA MOTOR CO., INC.
