Interior Light Switch Connector End View

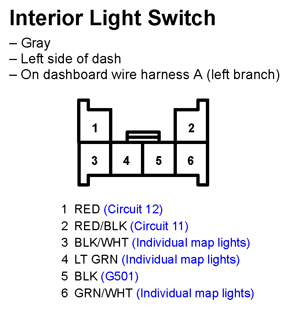

Fig 1: Interior Light Switch Connector End View

G11251191

Courtesy of AMERICAN HONDA MOTOR CO., INC.
