Audio Unit Connector End View
Audio Unit Connector End View

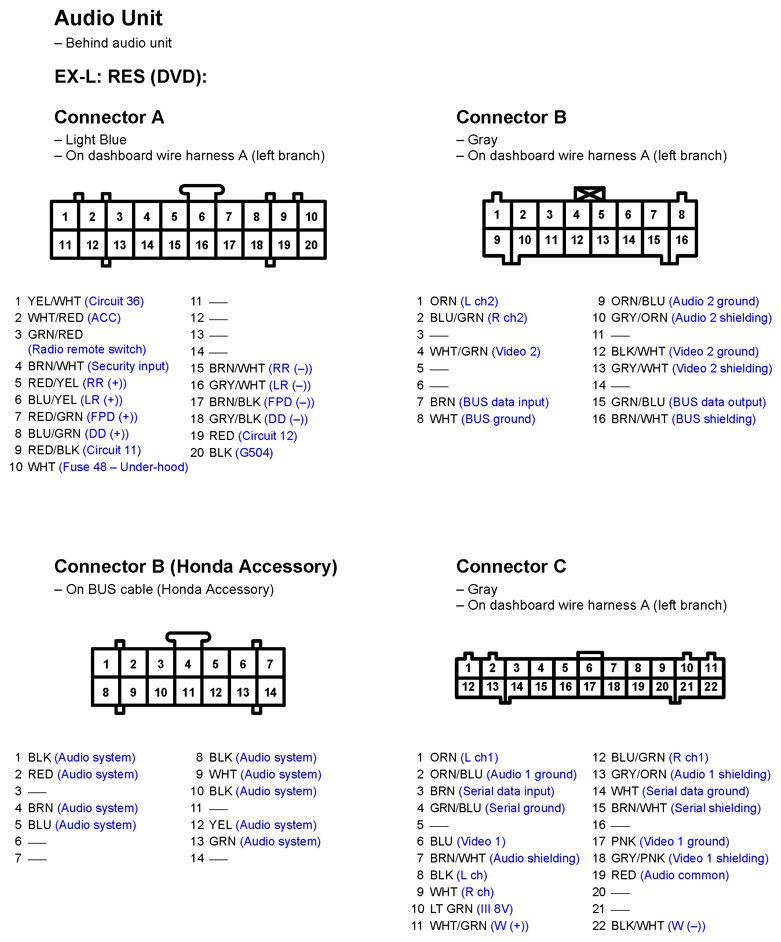

Fig 1: Audio Unit Connector End View (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

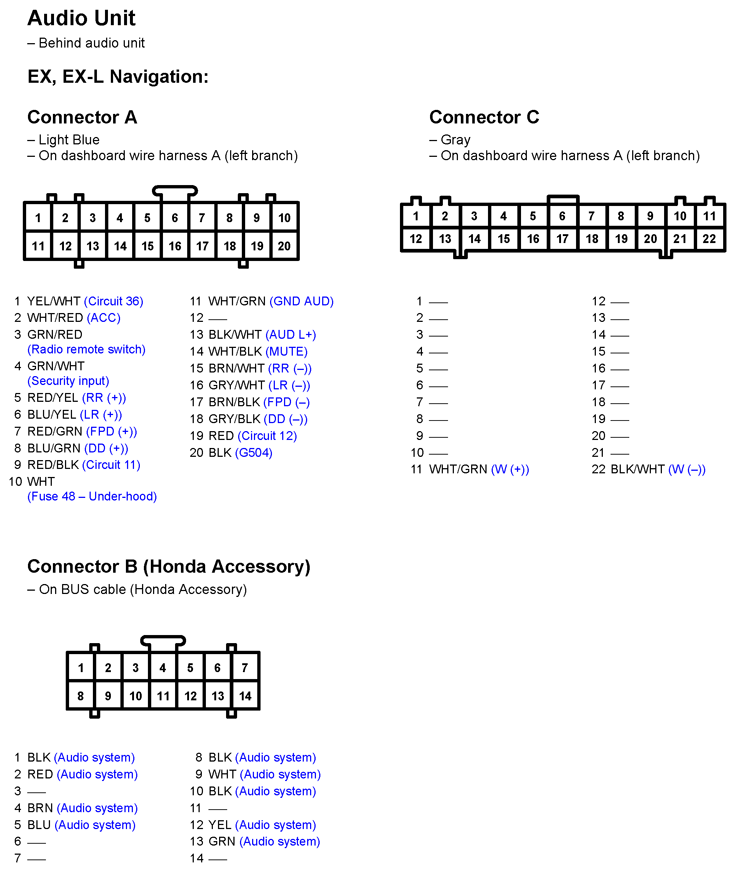

Fig 2: Audio Unit Connector End View (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Audio Unit Connector End View (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
