Symptom Troubleshooting Index

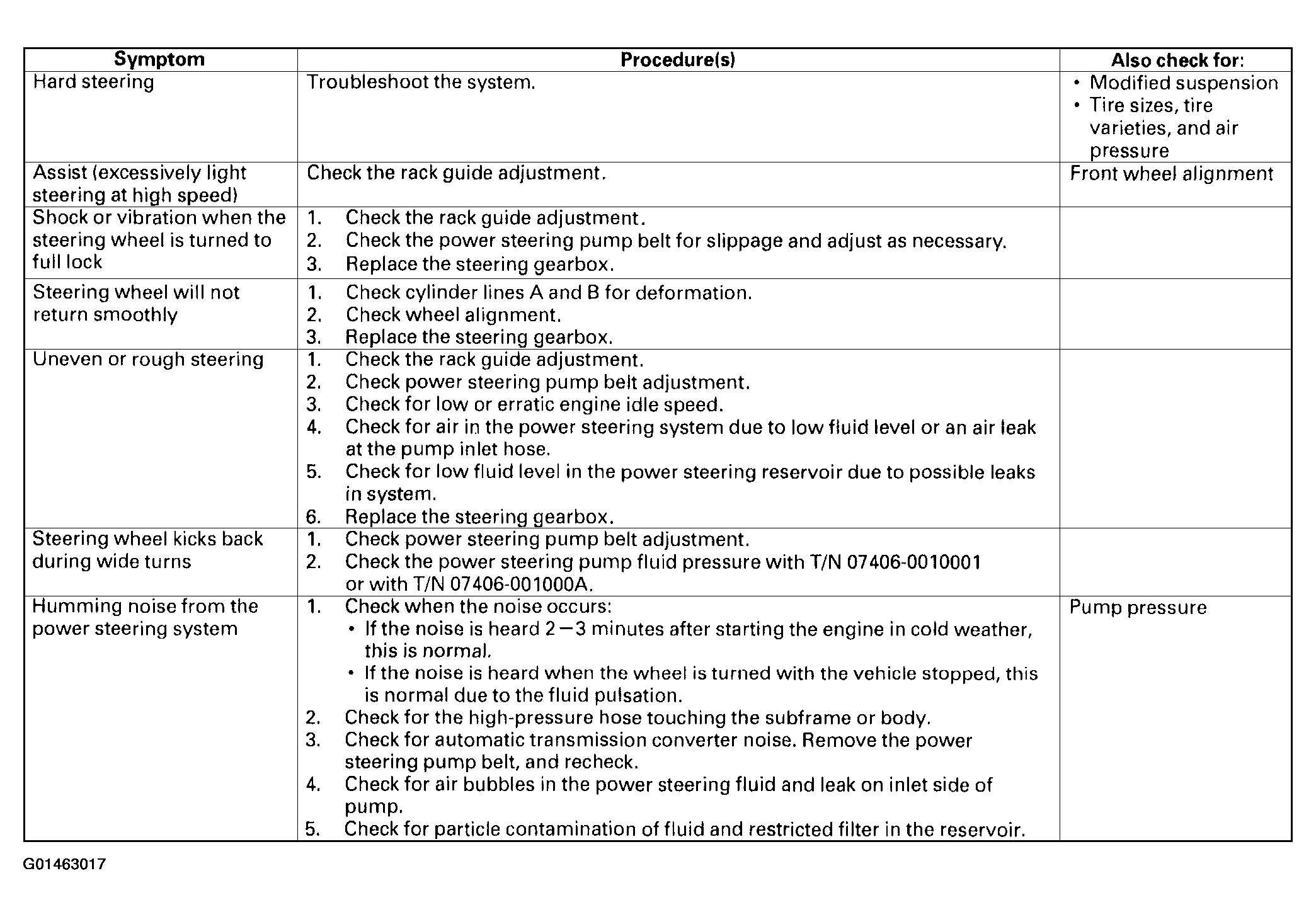

Fig 1: Symptom Troubleshooting Index (1 Of 2)
G01463017Courtesy of AMERICAN HONDA MOTOR CO., INC.

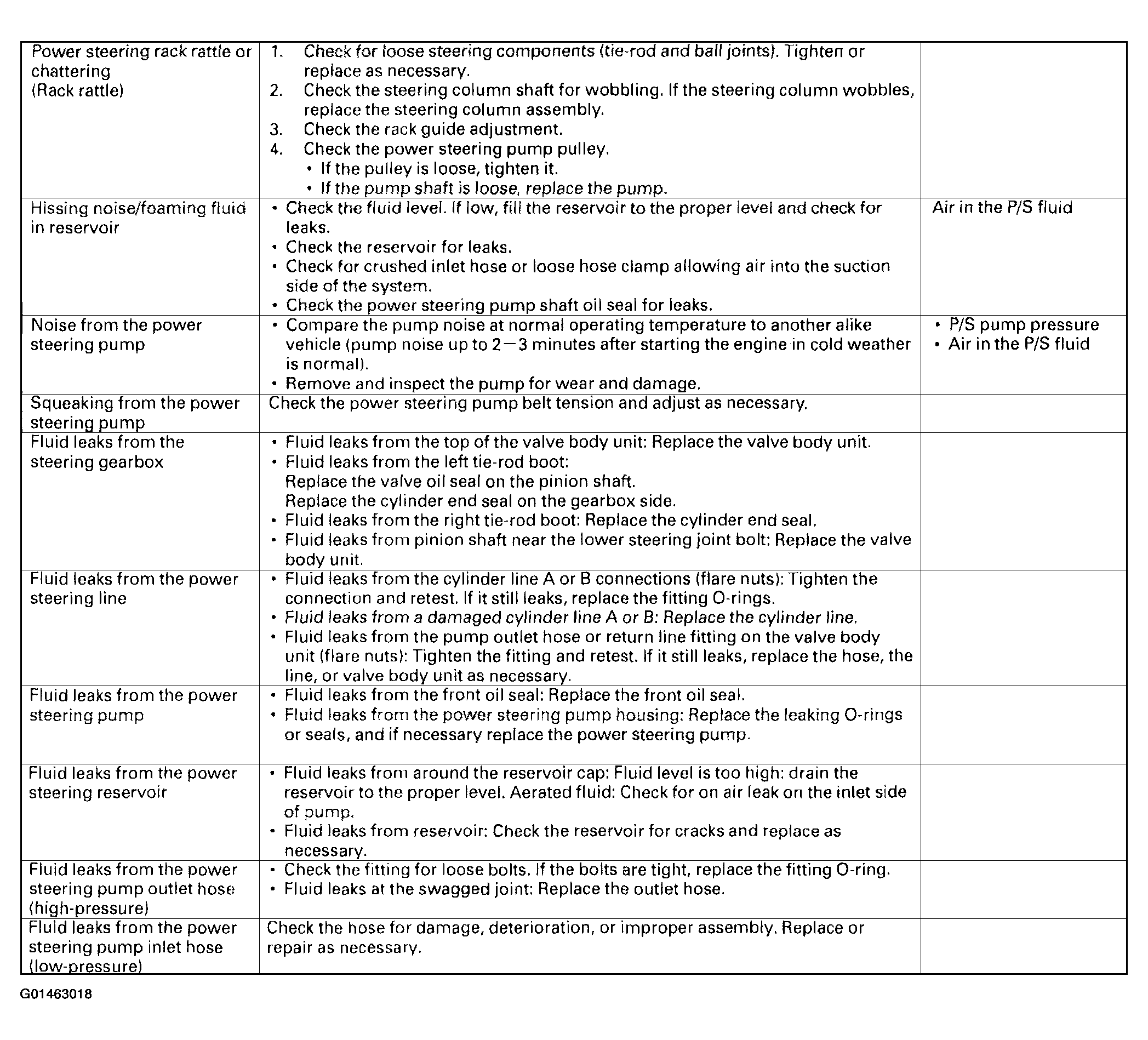

Fig 2: Symptom Troubleshooting Index (2 Of 2)
G01463018Courtesy of AMERICAN HONDA MOTOR CO., INC.
