Driver-side AIR Bag Module

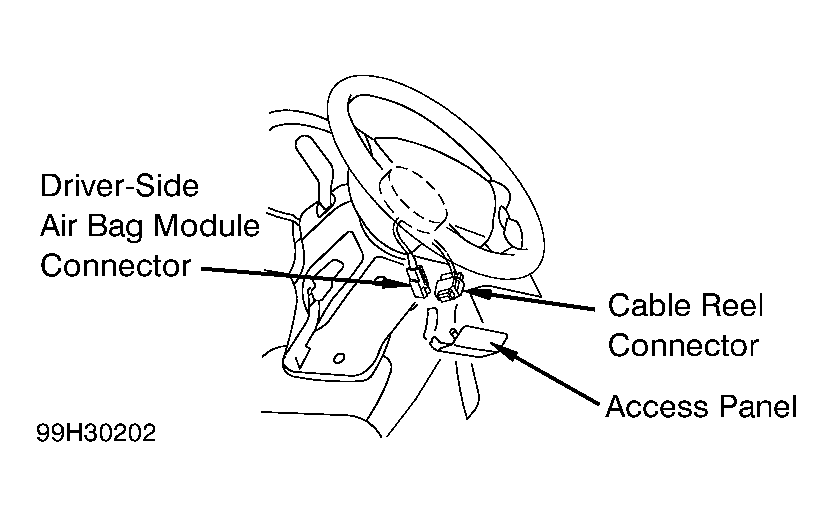

Turn ignition switch to OFF position. Disconnect negative battery cable. Wait at least 3 minutes. Remove access panel from steering wheel. See Figure . Disconnect 4-pin connector between air bag and cable reel. Driver-side air bag is now disabled.
