Heater Control Panel Removal & Installation
- Remove the center front covers and the center lower cover (see CENTER CONSOLE REMOVAL/INSTALLATION
).

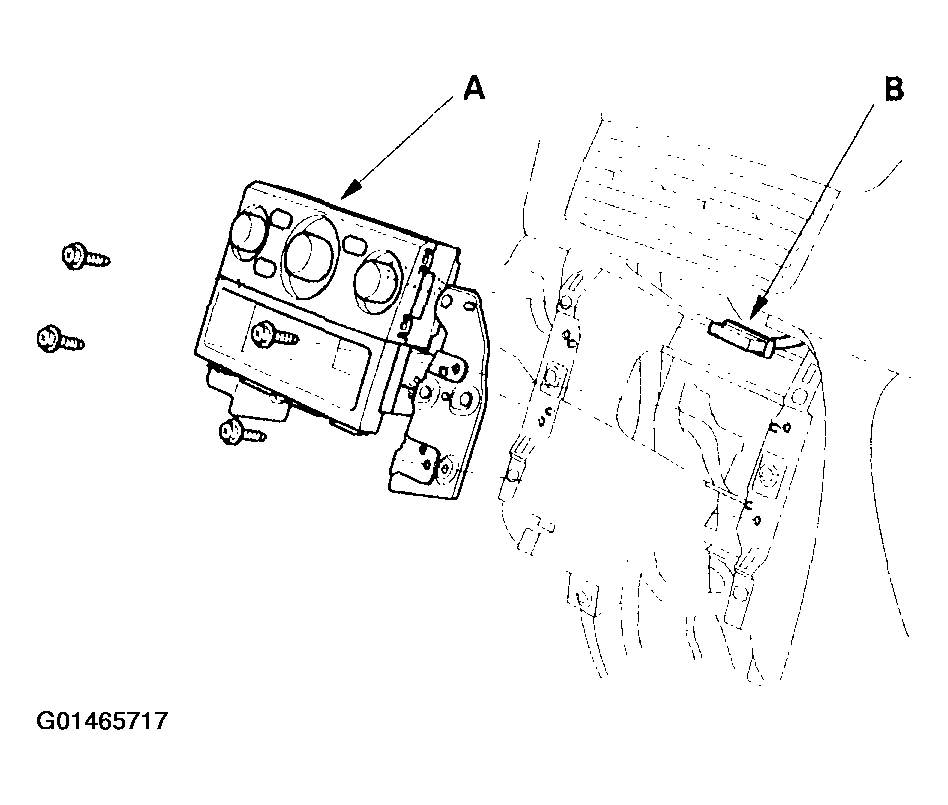

- Remove the screws, and remove the heater control panel (A) with the brackets from the dashboard, then disconnect the connector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

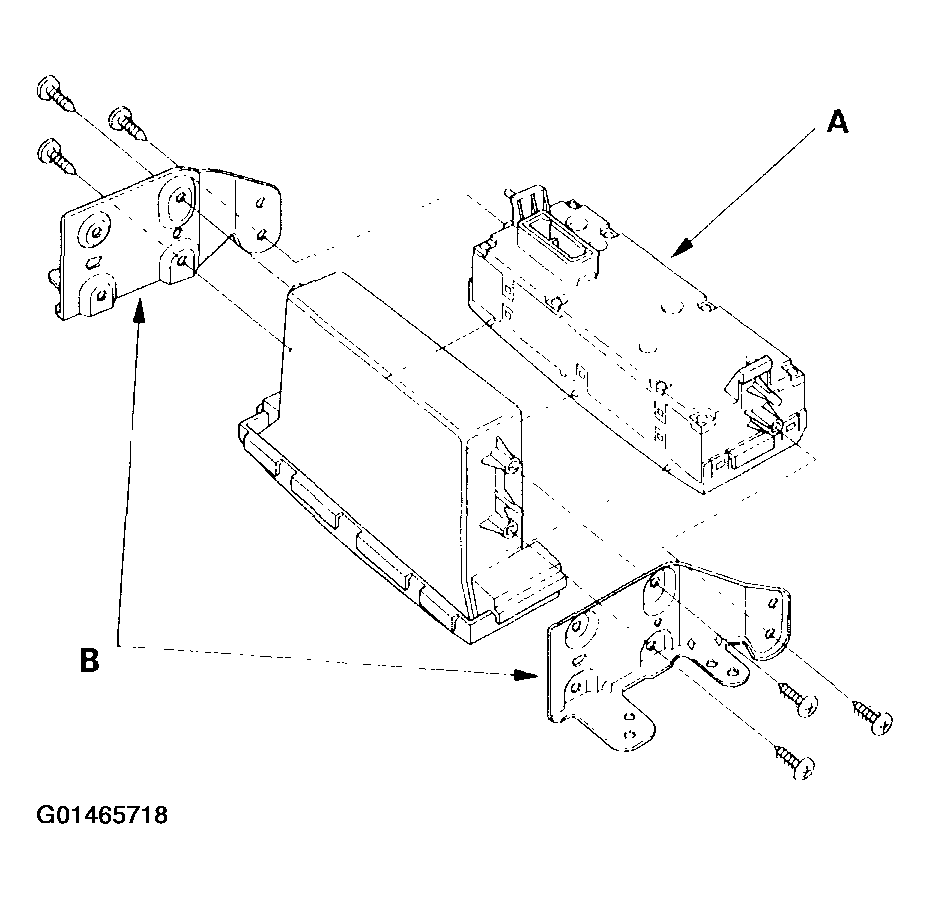

- Remove the screws and the heater control panel (A) from the brackets (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see whether it works properly.
- Run the self-diagnosis function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION
).
