Intake Air Temperature (IAT) Sensor

The IAT sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the intake air temperature increases.

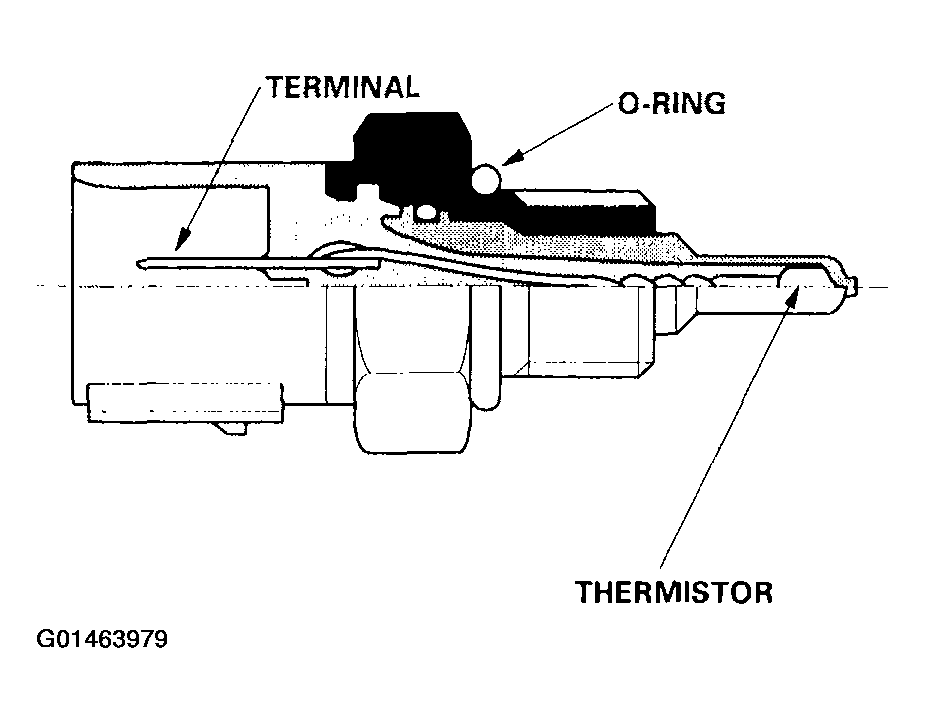

Fig 1: Identifying Intake Air Temperature Sensor
G01463979Courtesy of AMERICAN HONDA MOTOR CO., INC.
