Engine Coolant Temperature (ECT) Sensor

The ECT sensor is a temperature dependent resistor (thermistor). The resistance of the thermistor decreases as the engine coolant temperature increases.

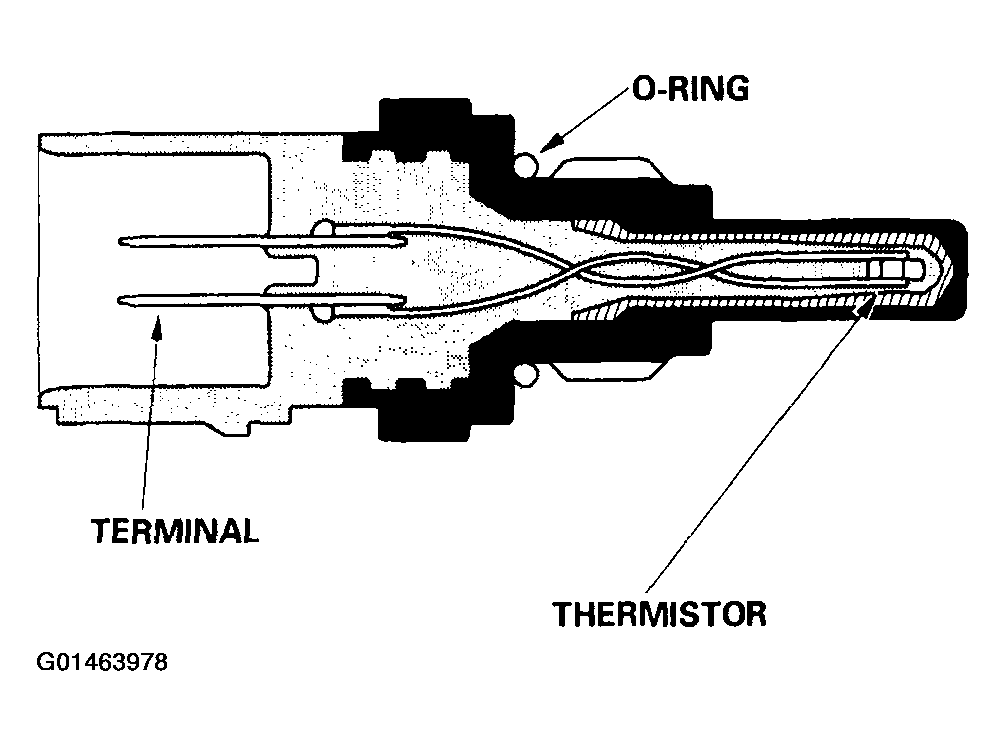

Fig 1: Identifying Engine Coolant Temperature Sensor
G01463978Courtesy of AMERICAN HONDA MOTOR CO., INC.
