Fuel Tank Pressure (FTP) Sensor

The FTP sensor converts fuel tank absolute pressure into an electrical input to the PCM during the EVAP leak check.

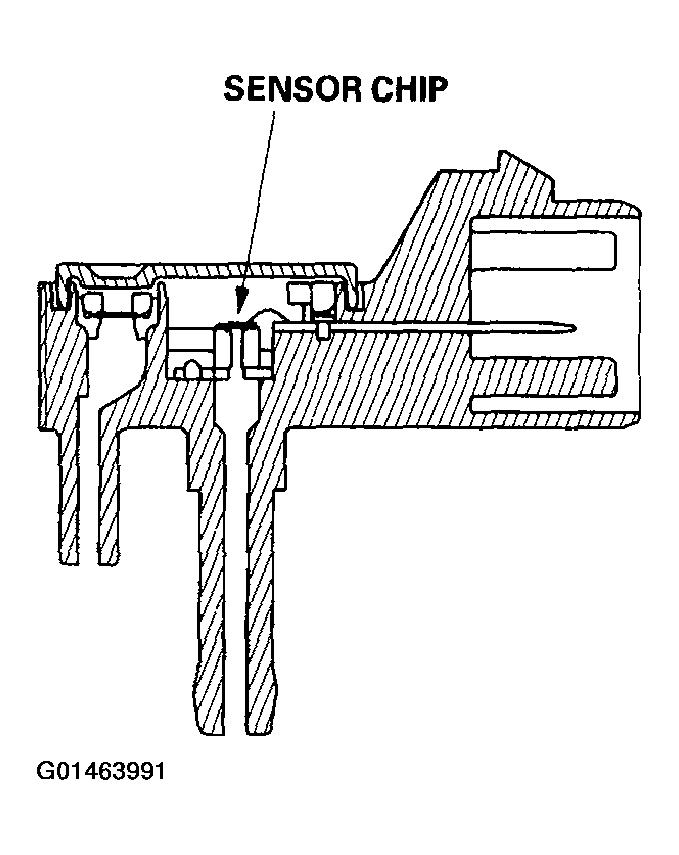

Fig 1: Identifying Fuel Tank Pressure Sensor
G01463991Courtesy of AMERICAN HONDA MOTOR CO., INC.
