Component Location Index

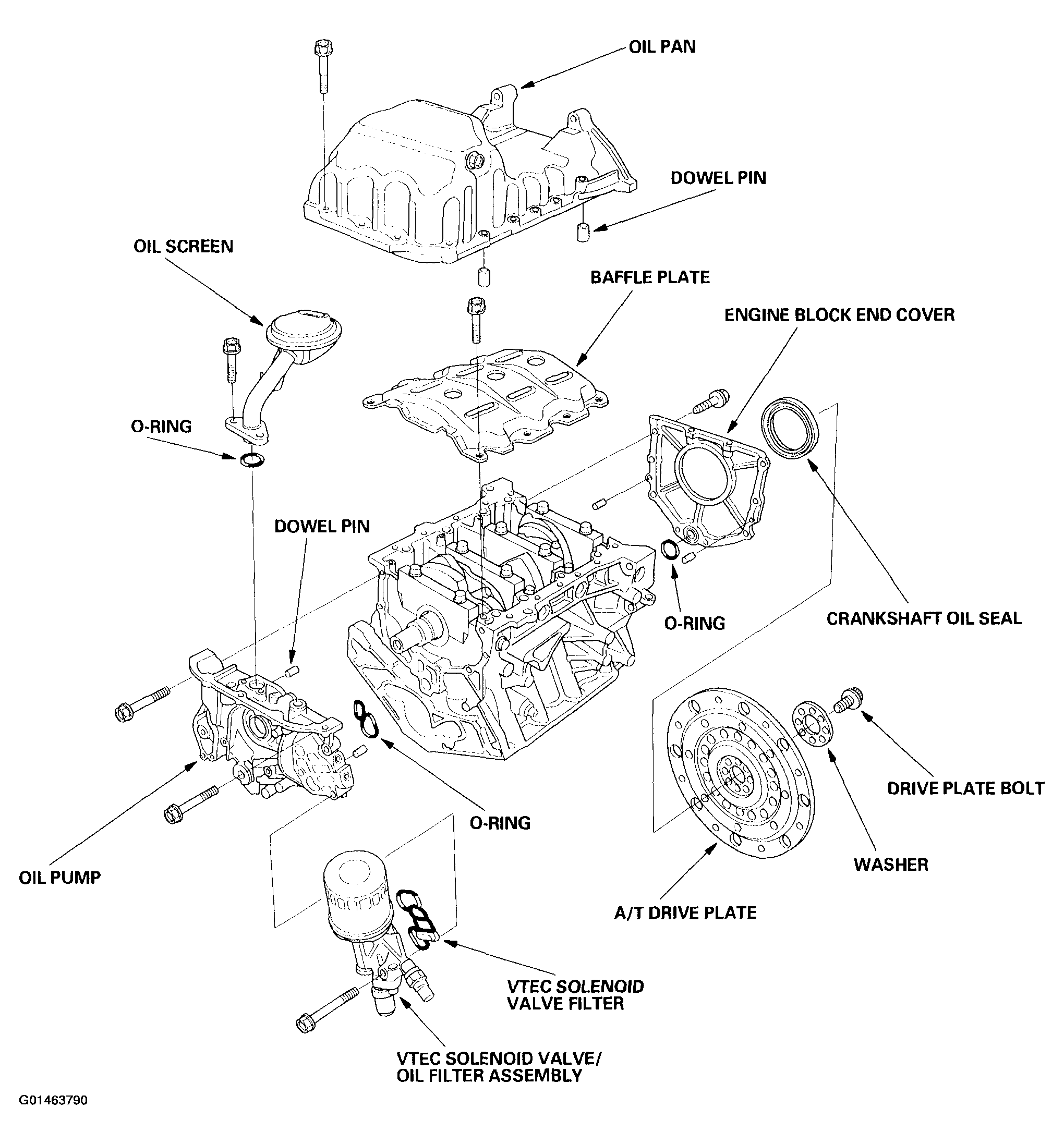

Fig 1: Locating Engine Block Components (1 Of 3)
G01463790Courtesy of AMERICAN HONDA MOTOR CO., INC.

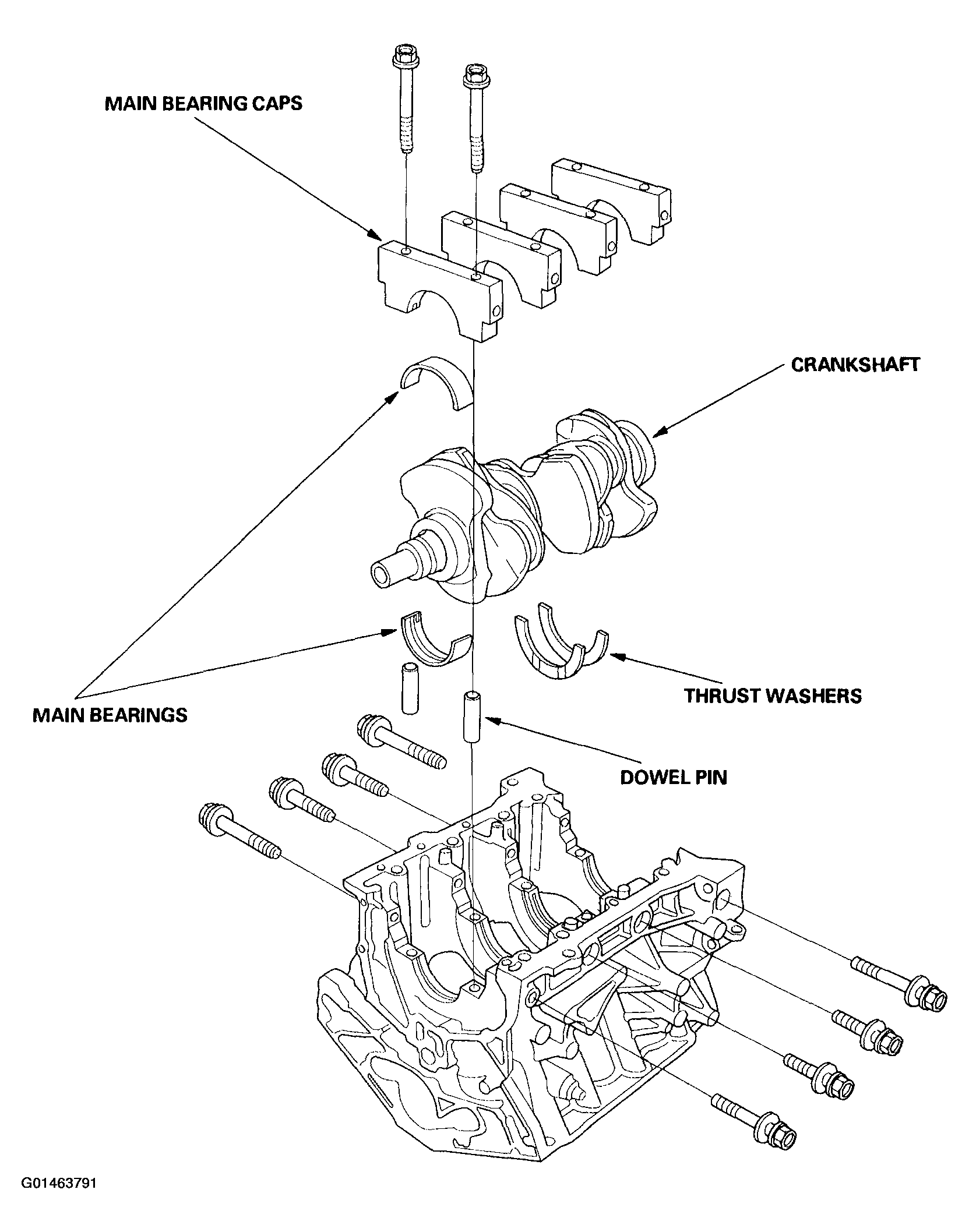

Fig 2: Locating Engine Block Components (2 Of 3)
G01463791Courtesy of AMERICAN HONDA MOTOR CO., INC.

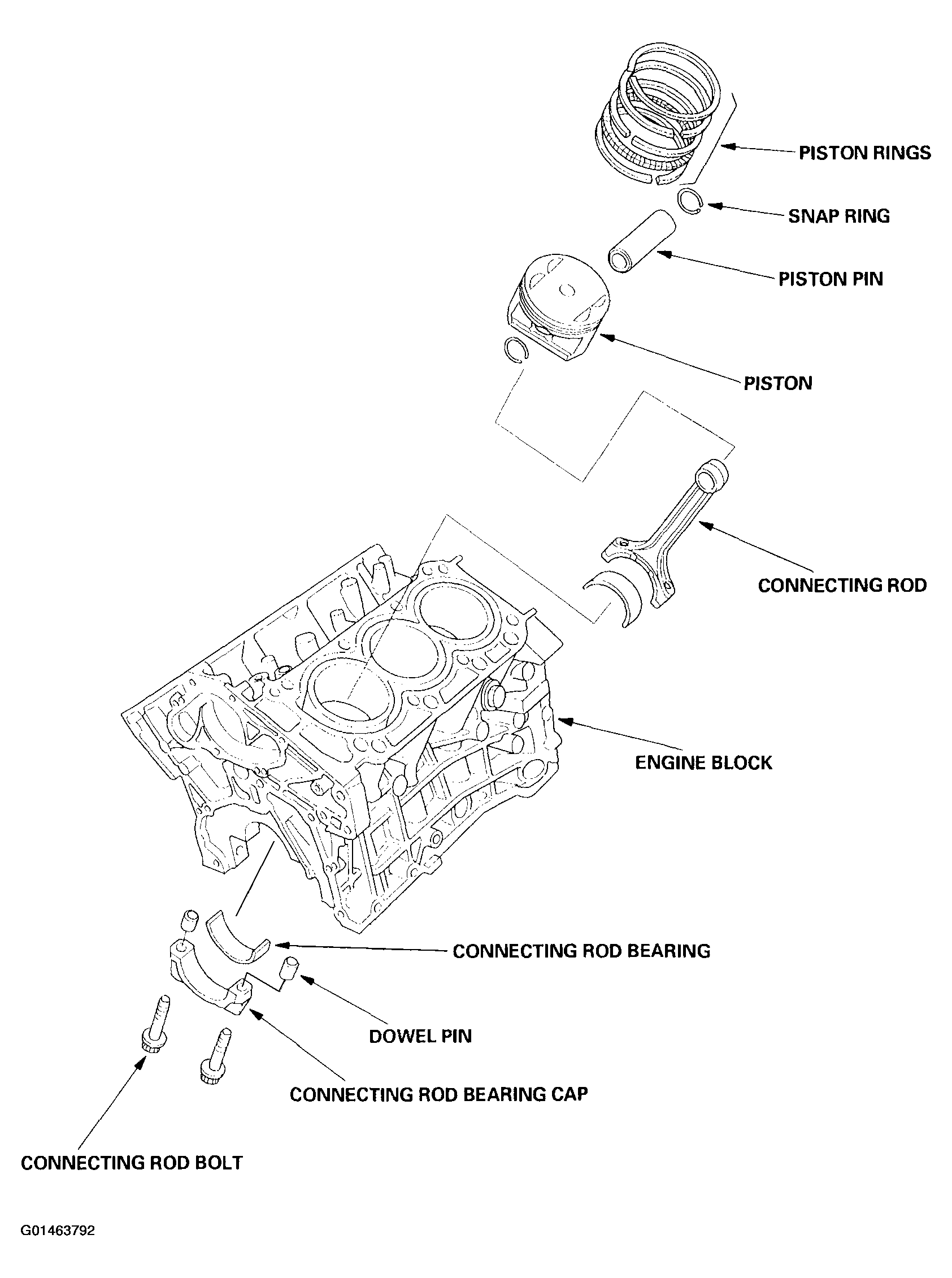

Fig 3: Locating Engine Block Components (3 Of 3)
G01463792Courtesy of AMERICAN HONDA MOTOR CO., INC.
