Exhaust Pipe & Muffler Replacement

NOTE: Use new gaskets and self-locking nuts when reassembling.

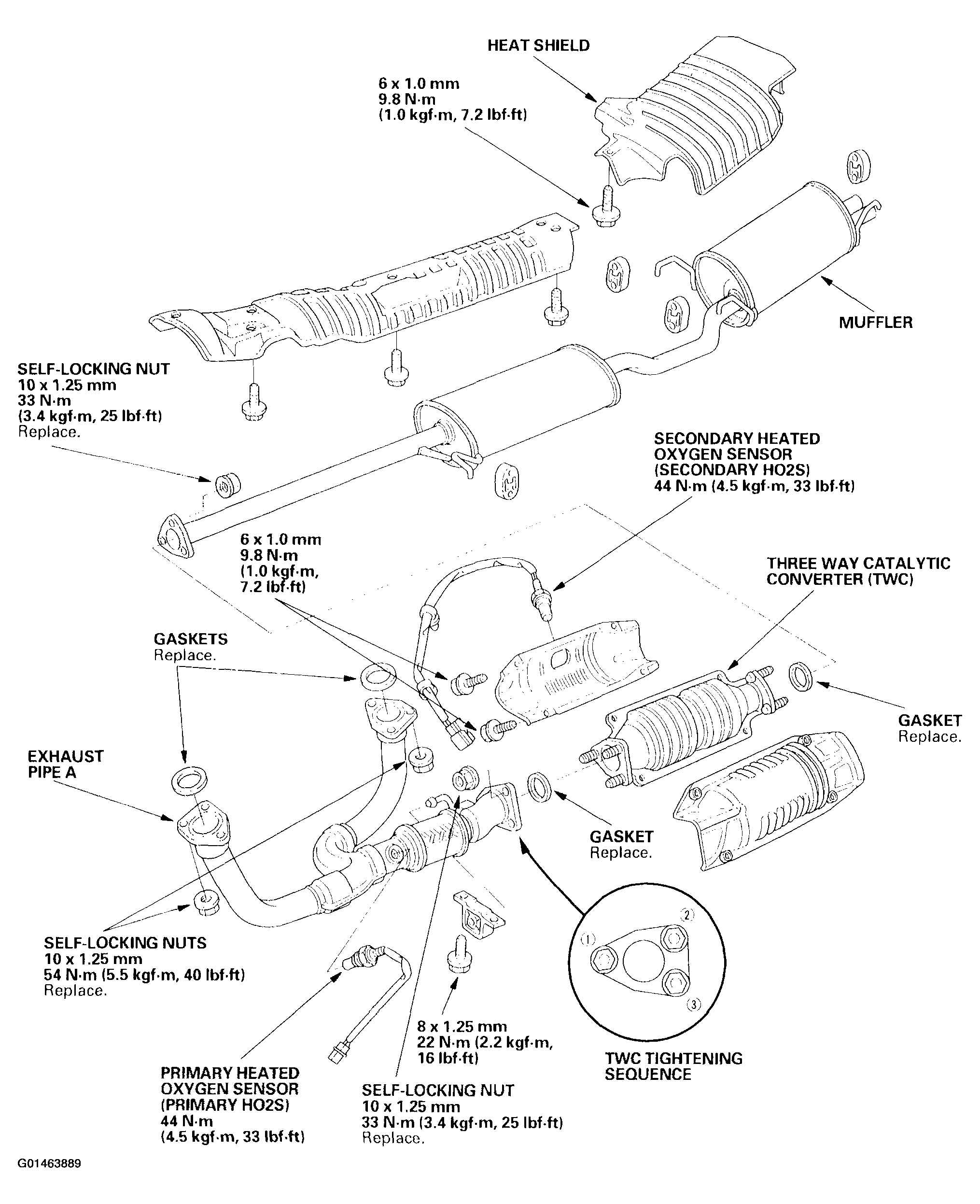

Fig 1: Exploded View Of Exhaust Pipe & Muffler

G01463889

Courtesy of AMERICAN HONDA MOTOR CO., INC.
