Glove Box Removal/Installation

SRS components are located in this area. Review the SRS components locations, precautions and procedures before performing repairs or service. For 2004 models, see AIR BAG RESTRAINT SYSTEMS . For 2003 models, see AIR BAG RESTRAINT SYSTEMS .

1. Remove the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREA  ).
2. While holding the glove box (A), remove the glove box stop (B) on each side.

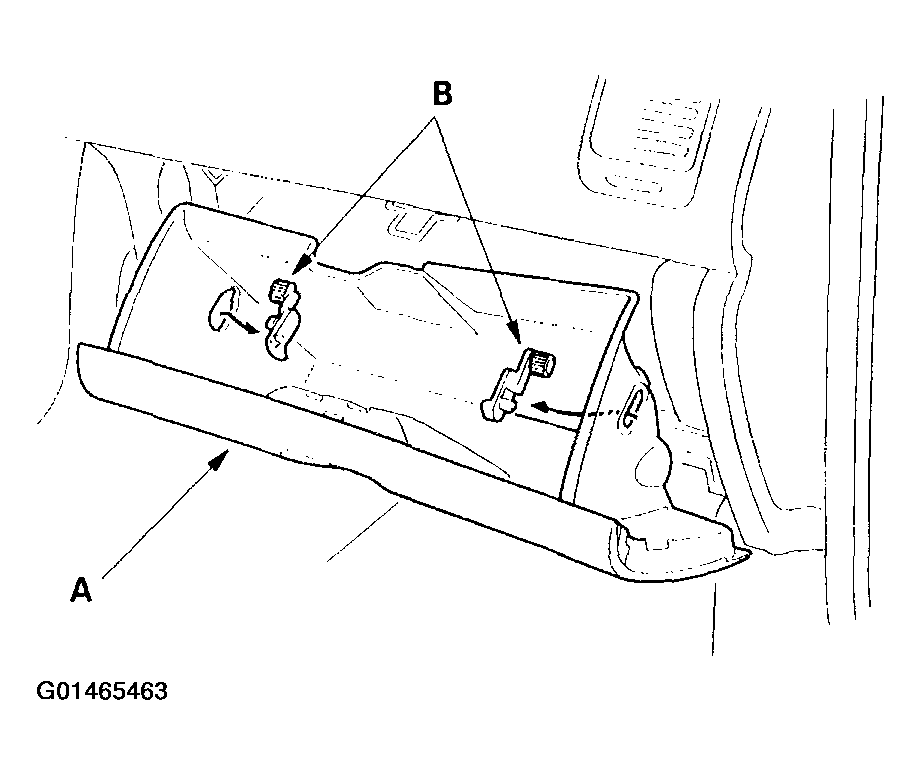

   Fig 1: Removing The Glove Box Stops

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the bolts, then remove the glove box (A).

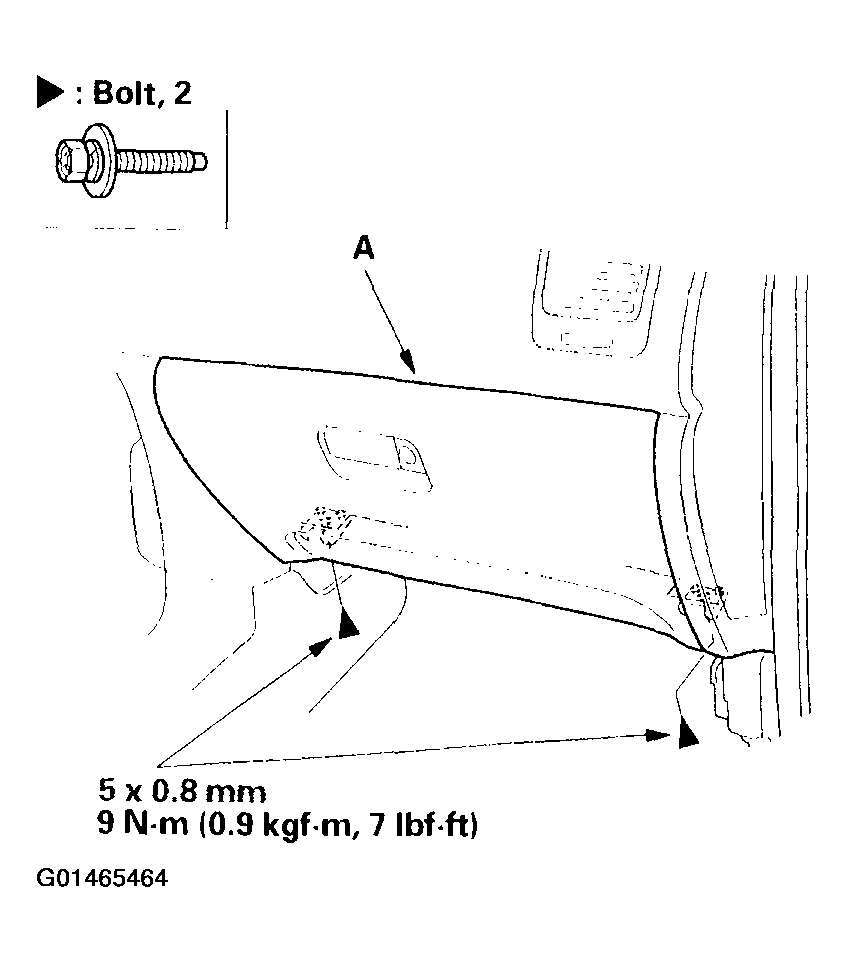

   Fig 2: Identifying Glove Box Fastener Locations

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the glove box in the reverse order of removal.
