Cruise Control Actuator Cable Adjustment

Check that the actuator cable (A) moves smoothly with no binding or sticking.

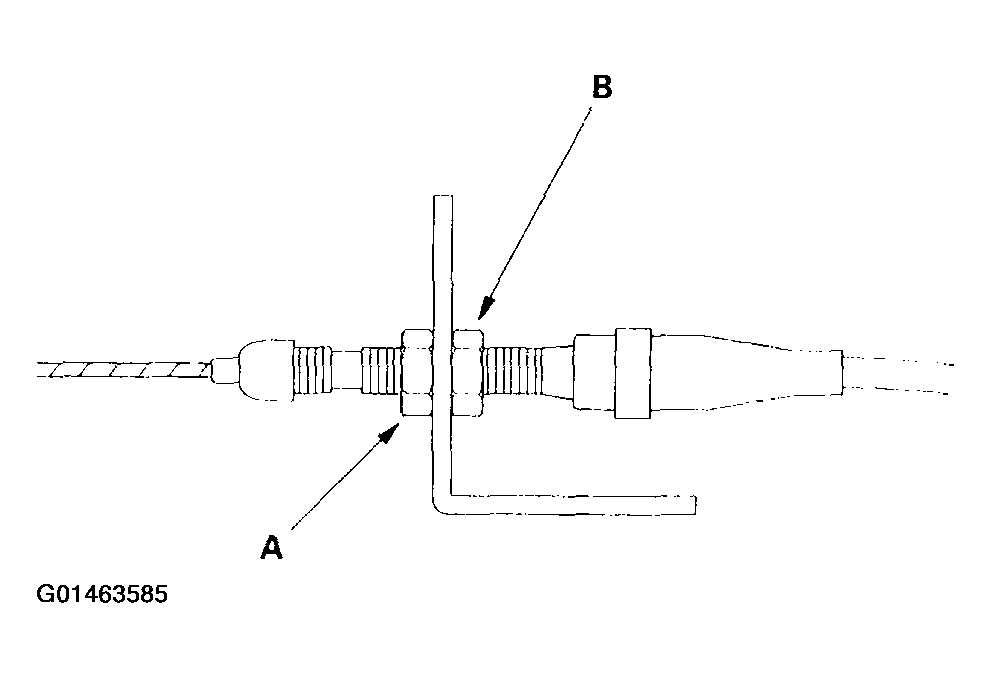

Fig 1: Checking Actuator Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the amount of movement of the output linkage (B) until the engine speed starts to increase. At first, the output linkage should be located at the fully closed position (C). The free play (D) should be 3.75+/-0.5 mm (0.15+/-0.02 in.).
If the free play is not within specs, move the cable to the point where the engine speed starts to increase, then tighten the locknut (A) and adjusting nut (B).

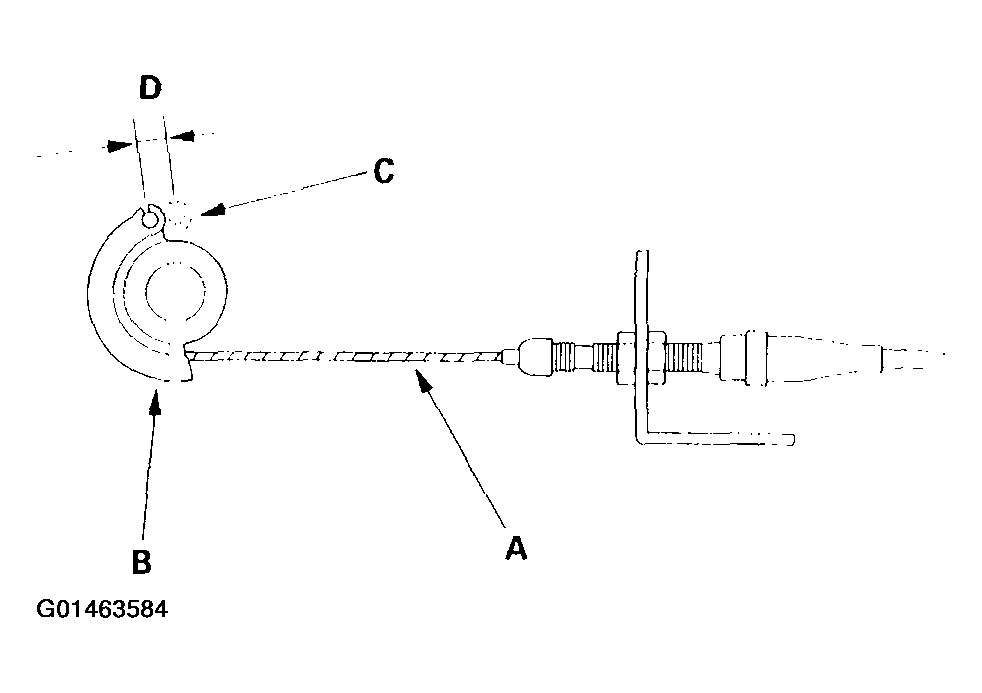

Fig 2: Measuring Amount Of Movement Of Output Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

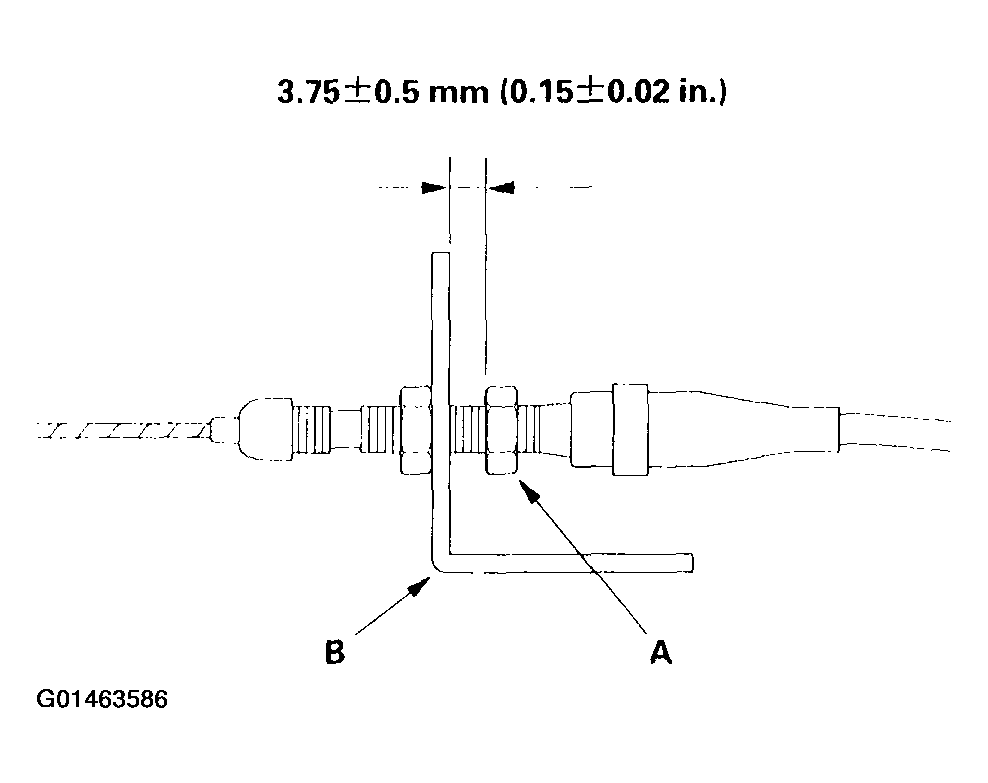

Turn the adjusting nut (A) until it is 3.75+/-0.5 mm (0.15+/-0.02 in.) away from the bracket (B).

Fig 3: Turning Adjusting Nut Until It Is Away From Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the cable so that the adjusting nut (A) touches the bracket, then tighten the locknut (B).

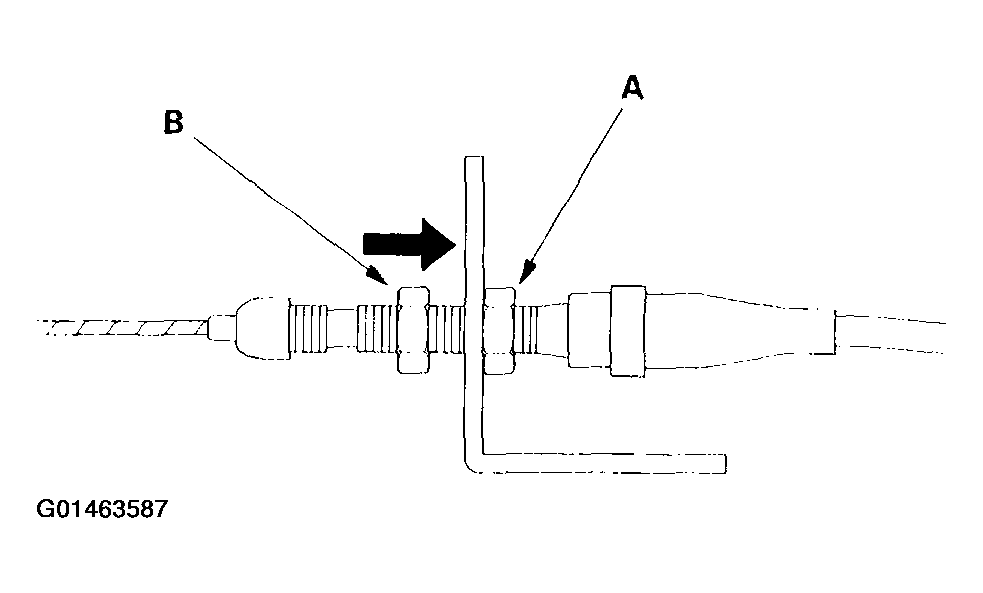

Fig 4: Pulling Cable So That The Adjusting Nut Touches The Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
