Transfer Assembly: Disassembly: Notes

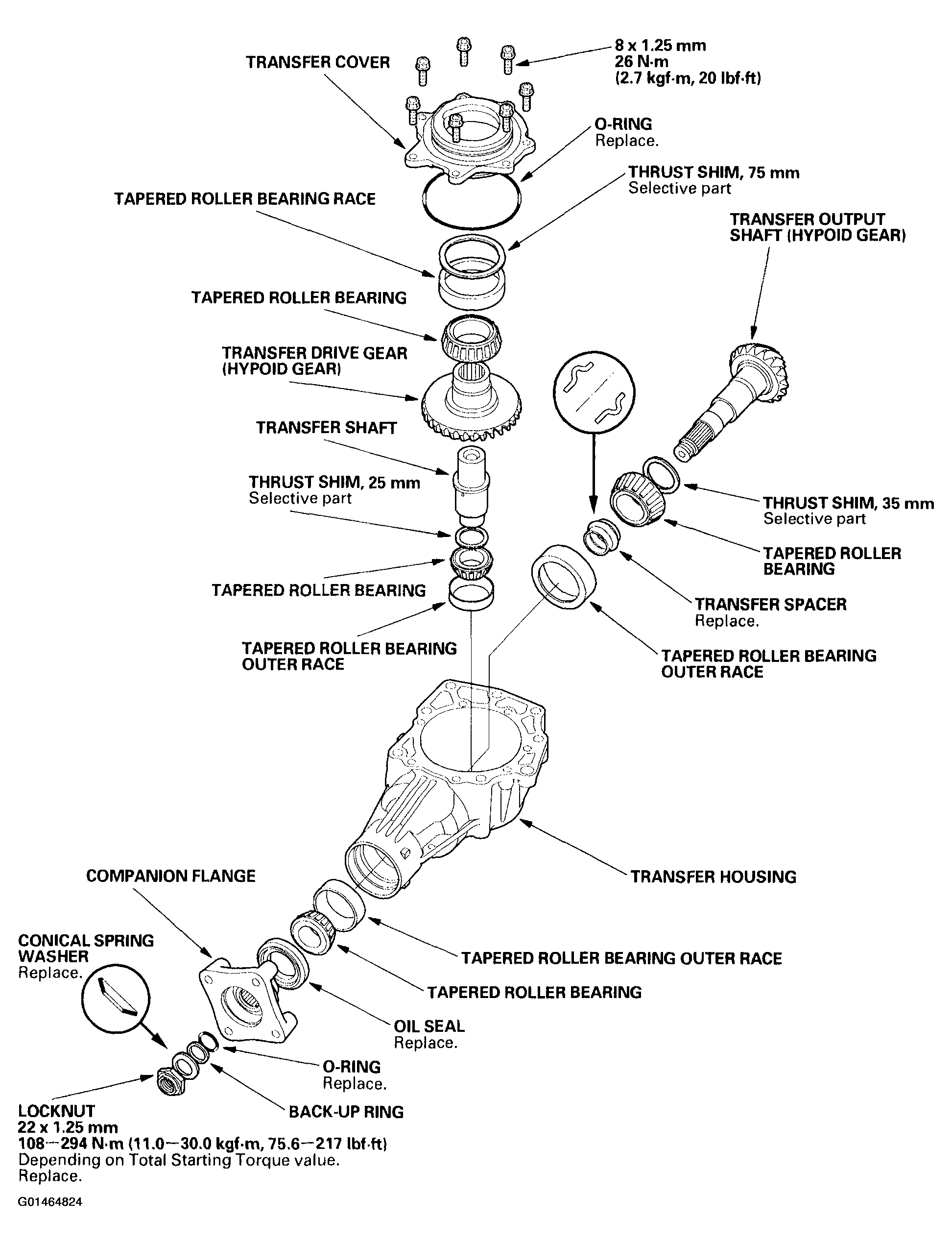

Fig 1: Exploded View Of Transfer Assembly

G01464824

Courtesy of AMERICAN HONDA MOTOR CO., INC.
