VTM-4 Control Unit Connector End View

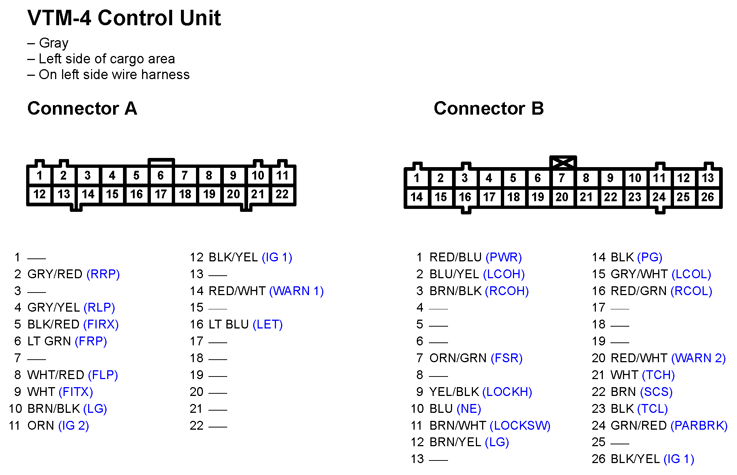

Fig 1: VTM-4 Control Unit Connector End View

G11251293

Courtesy of AMERICAN HONDA MOTOR CO., INC.
