Transmission Range Switch Connector End View

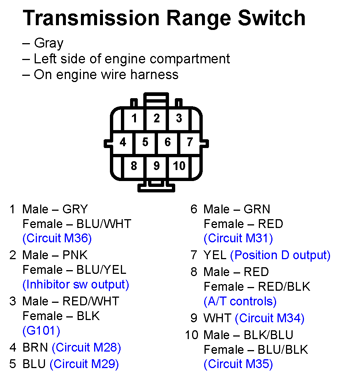

Fig 1: Transmission Range Switch Connector End View

G11251225

Courtesy of AMERICAN HONDA MOTOR CO., INC.
