Immobilizer Control Unit-Receiver Connector End View

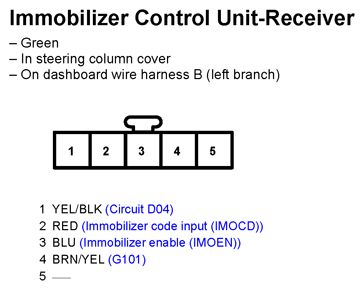

Fig 1: Immobilizer Control Unit-Receiver Connector End View

G11251181

Courtesy of AMERICAN HONDA MOTOR CO., INC.
