Climate Control Unit (EX, EX-L) Connector End View

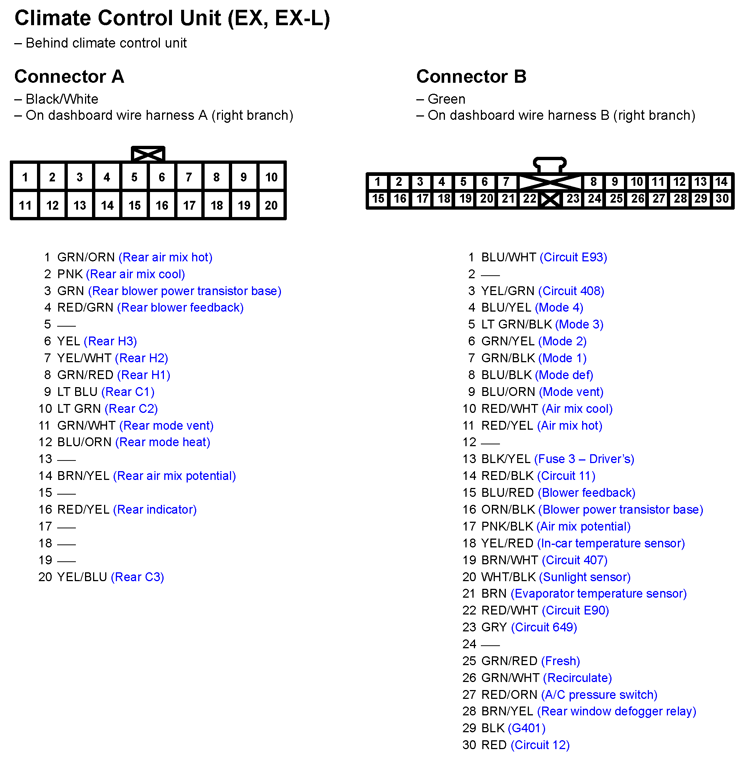

Fig 1: Climate Control Unit (EX, EX-L) Connector End View

G11251269

Courtesy of AMERICAN HONDA MOTOR CO., INC.
