Circuit Diagram (Entry Light Control System)

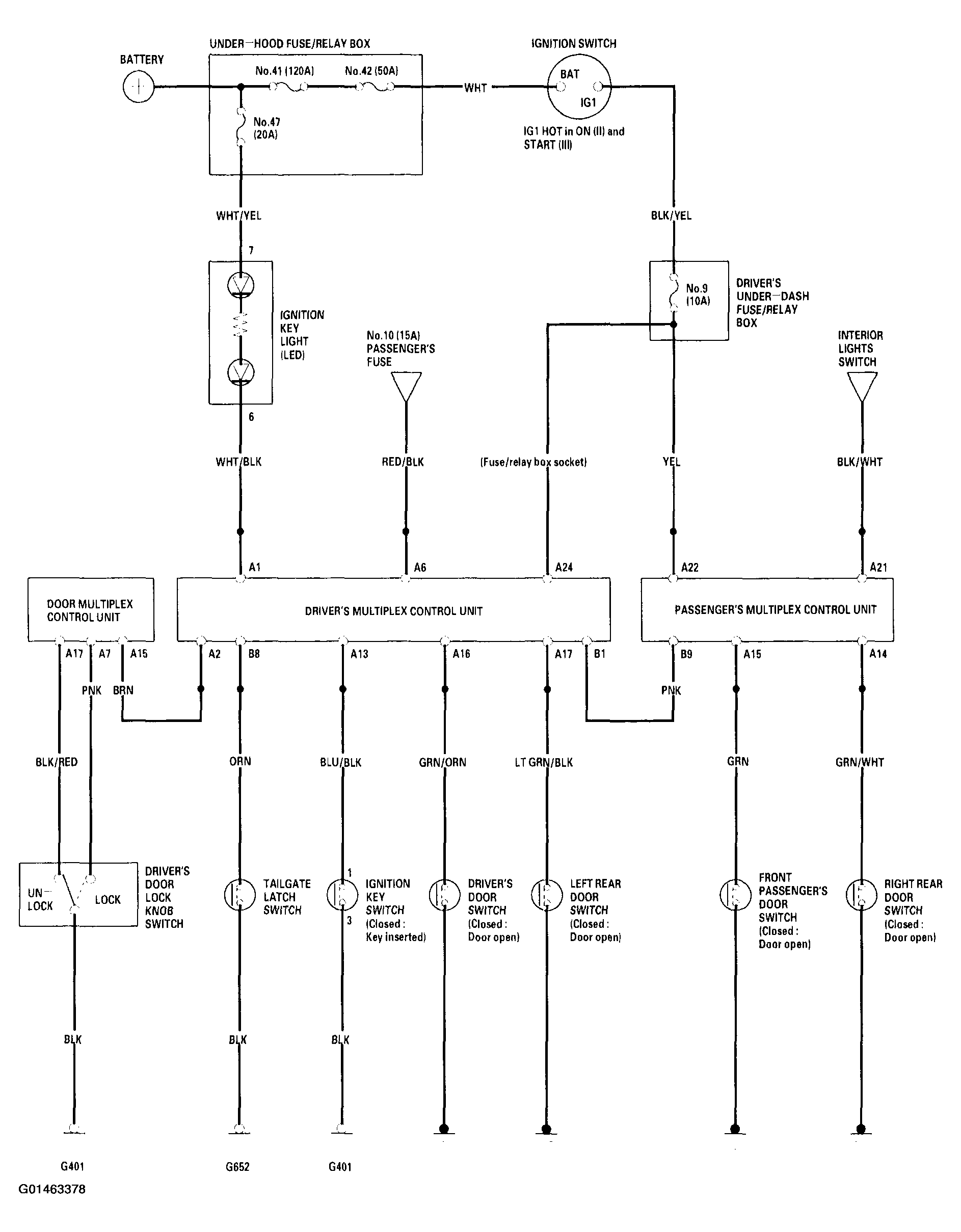

Fig 1: Entry Light Control System Circuit Diagram

G01463378

Courtesy of AMERICAN HONDA MOTOR CO., INC.
