Navigation Unit Removal/Installation

  1. Slide the passenger's seat (A) to the rear.

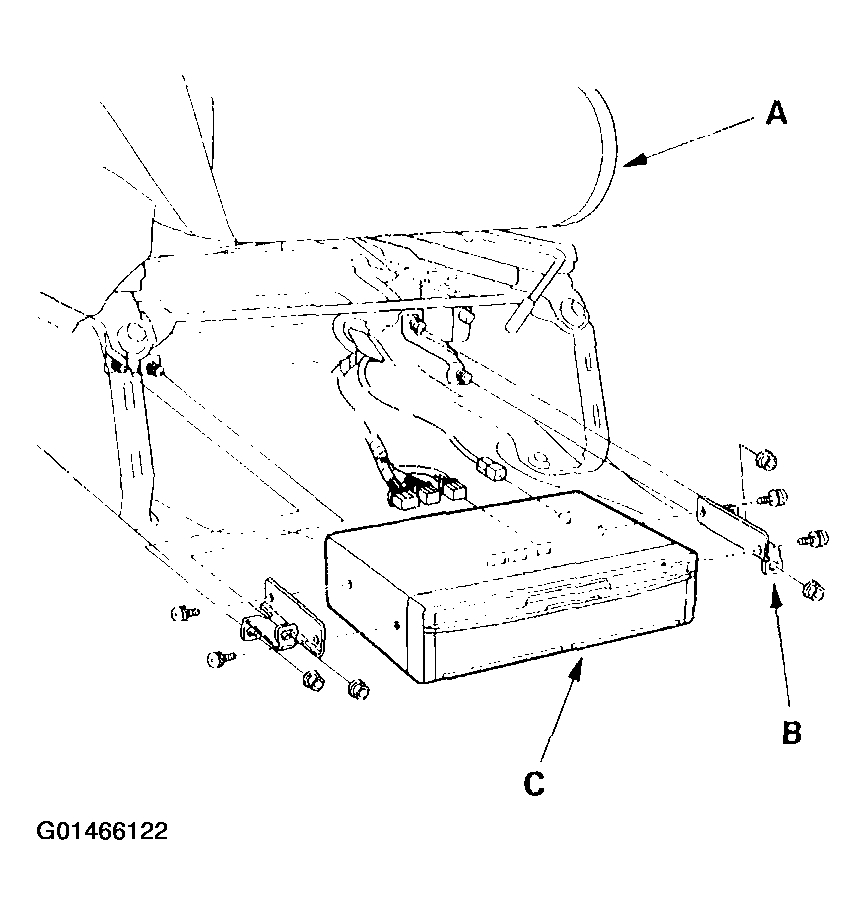

    Fig 1: Sliding The Passenger's Seat To The Rear
    G01466122Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the navigation unit bracket (B) from the passenger's seat.
  3. Remove the bracket from the navigation unit (C).
  4. Install in the reverse order of removal.
