Tailgate Weatherstrip Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. With power tailgate: Remove the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ), and remove the bolts, then release the push arm bracket (A) from the tailgate.

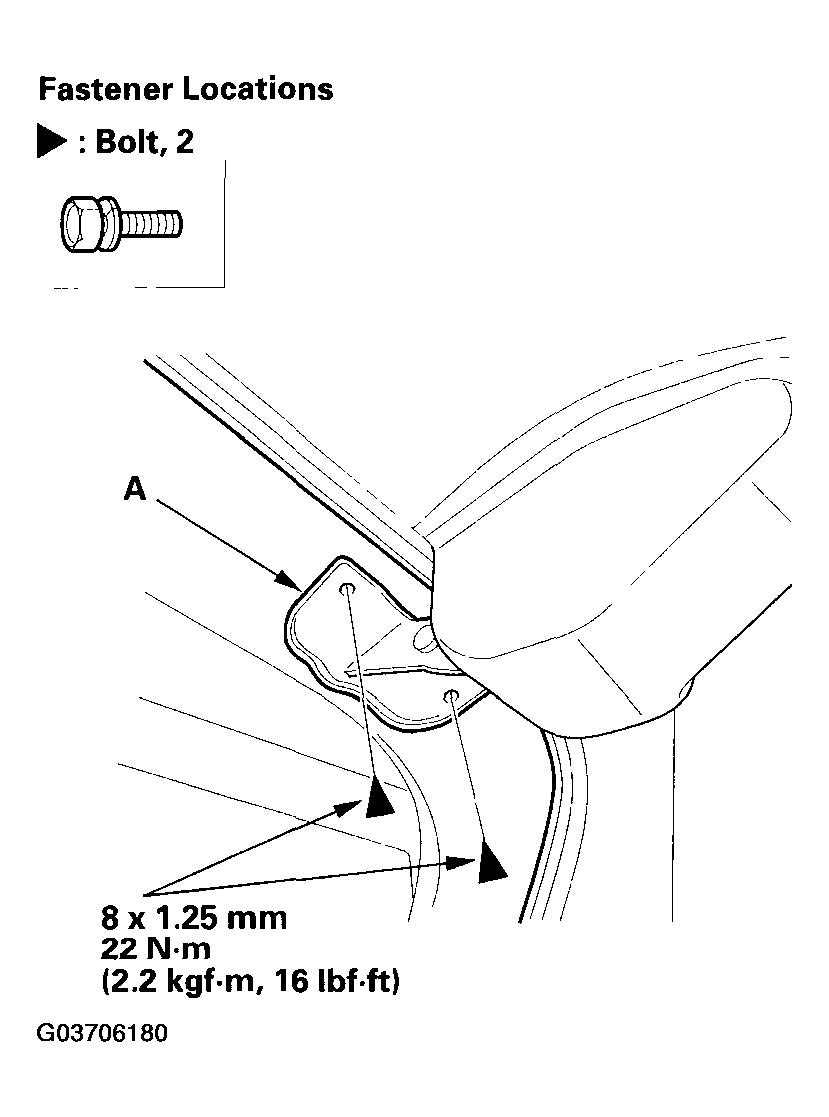

    Fig 1: Releasing Push Arm Bracket From Tailgate
    G03706180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the tailgate weatherstrip (A) by pulling out on it.

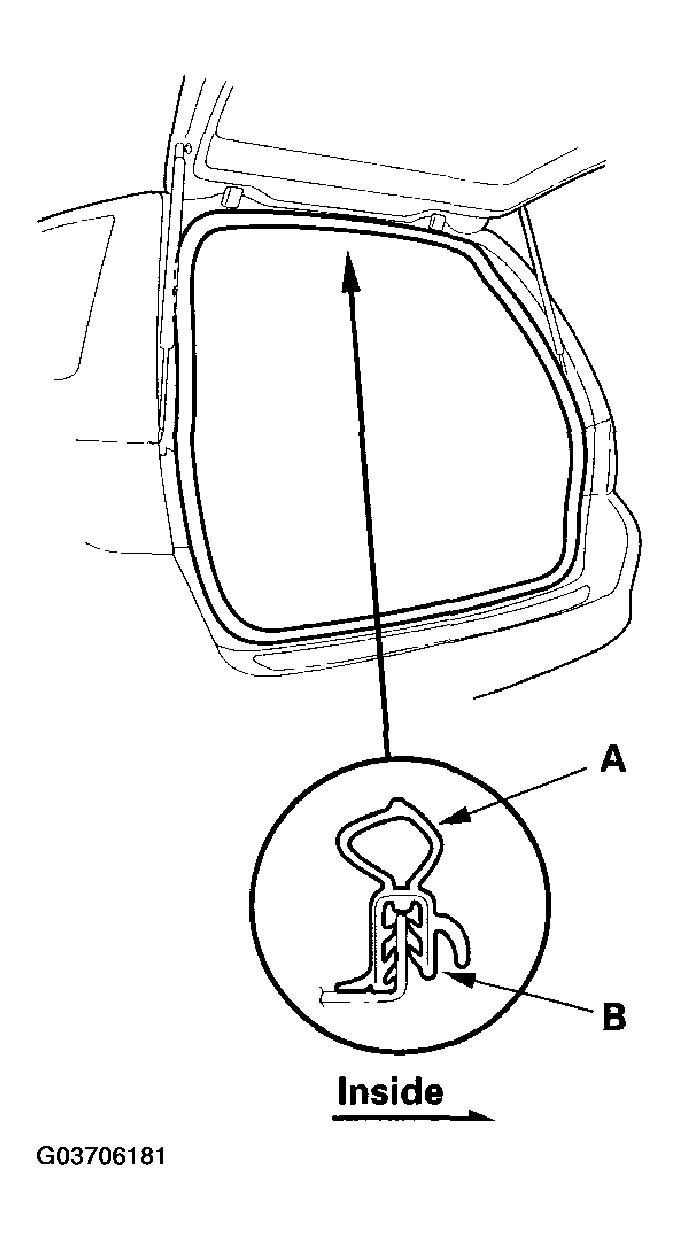

    Fig 2: Removing Tailgate Weatherstrip
    G03706181Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Locate the painted alignment mark (B) on the tailgate weatherstrip. Align the painted mark with the alignment tab in the center of the tailgate opening, and install the tailgate weatherstrip all the way around. Make sure there are no wrinkles in the weatherstrip.
  4. With power tailgate: Reinstall the push arm bracket.
  5. Check for water leaks.
