Touring Models

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

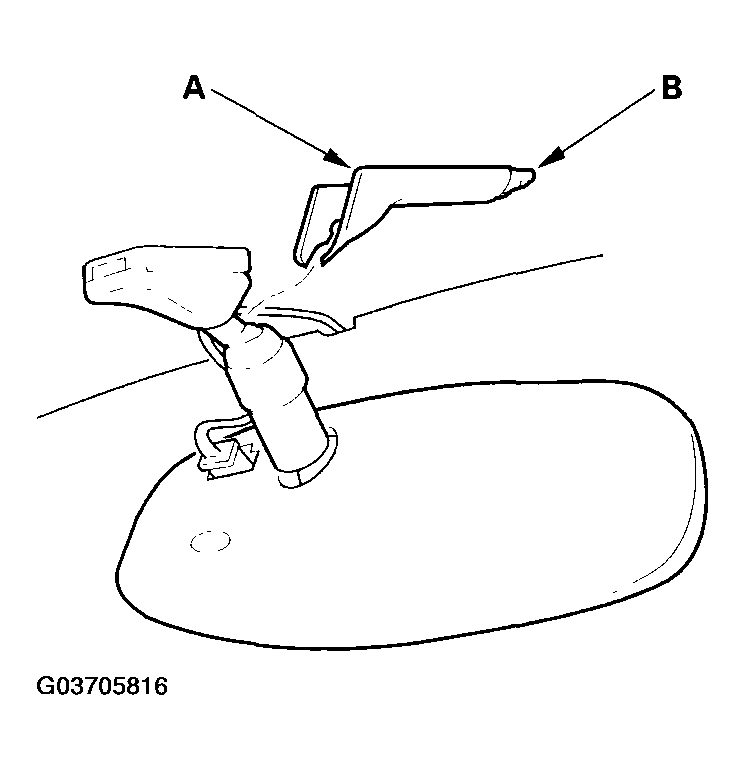

Slide the mirror harness upper cover (A) forward, then remove the mirror harness cover (B).

Fig 1: Removing Mirror Harness Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

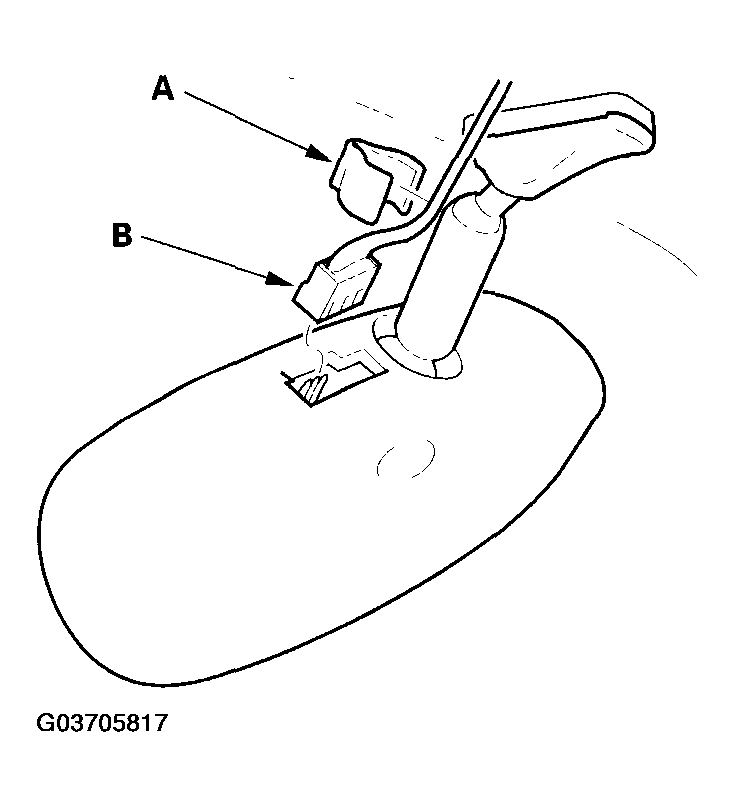

Remove the harness holder (A), then disconnect the connector (B).

Fig 2: Disconnecting Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

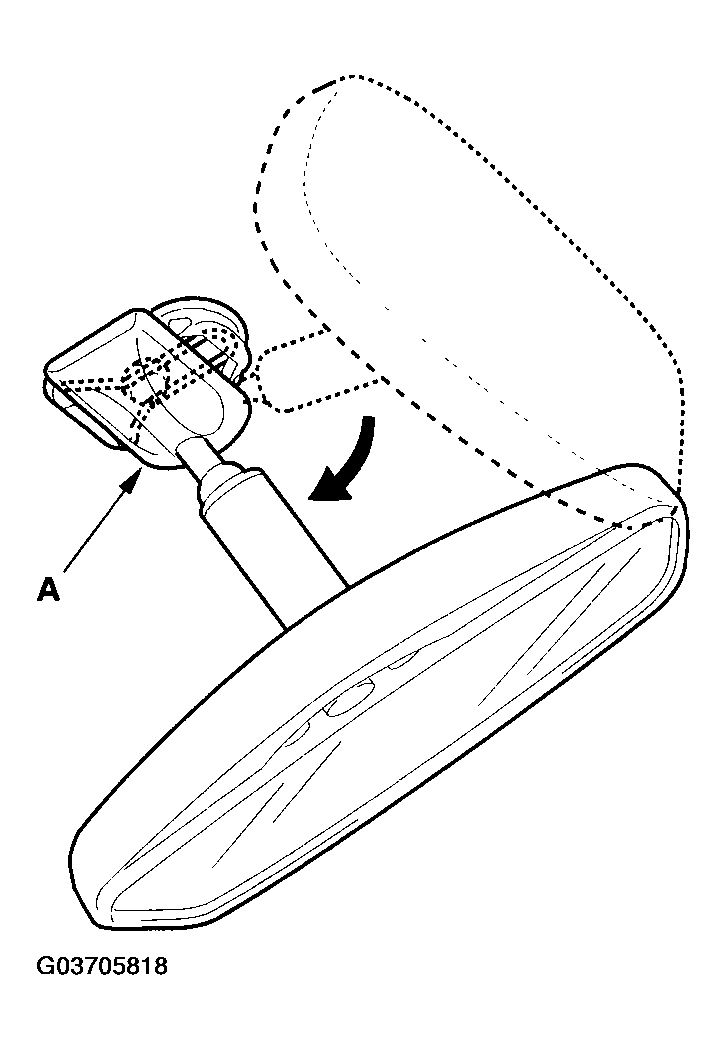

Turn the rearview mirror base (A) 90°.

Fig 3: Turning Rearview Mirror Base 90°
Courtesy of AMERICAN HONDA MOTOR CO., INC.

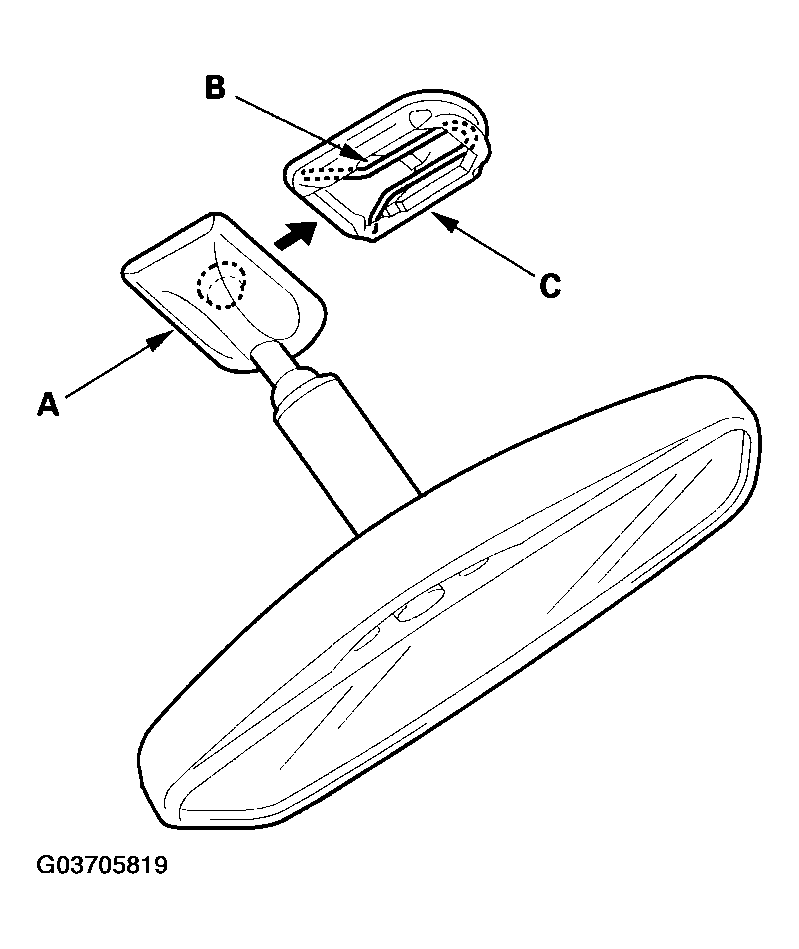

Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).

Fig 4: Sliding Rearview Mirror Down Toward Bottom Of Windshield To Detach From Spring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, remove the spring from the mount.
Install the rearview mirror in the reverse order of removal.
