Power Mirror Replacement
- Lower the door glass fully.

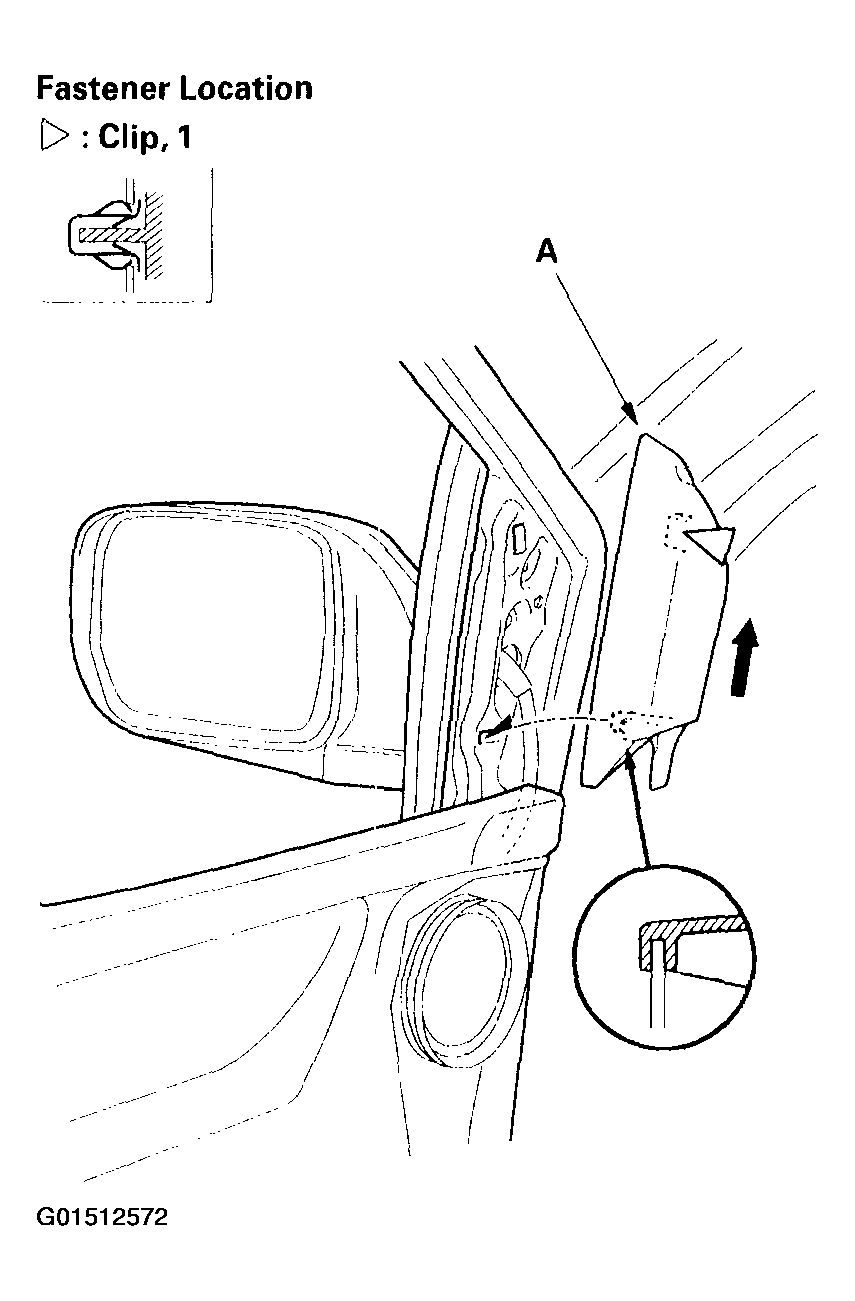

- Carefully pry out the mirror mount cover (A) by hand as shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION
).

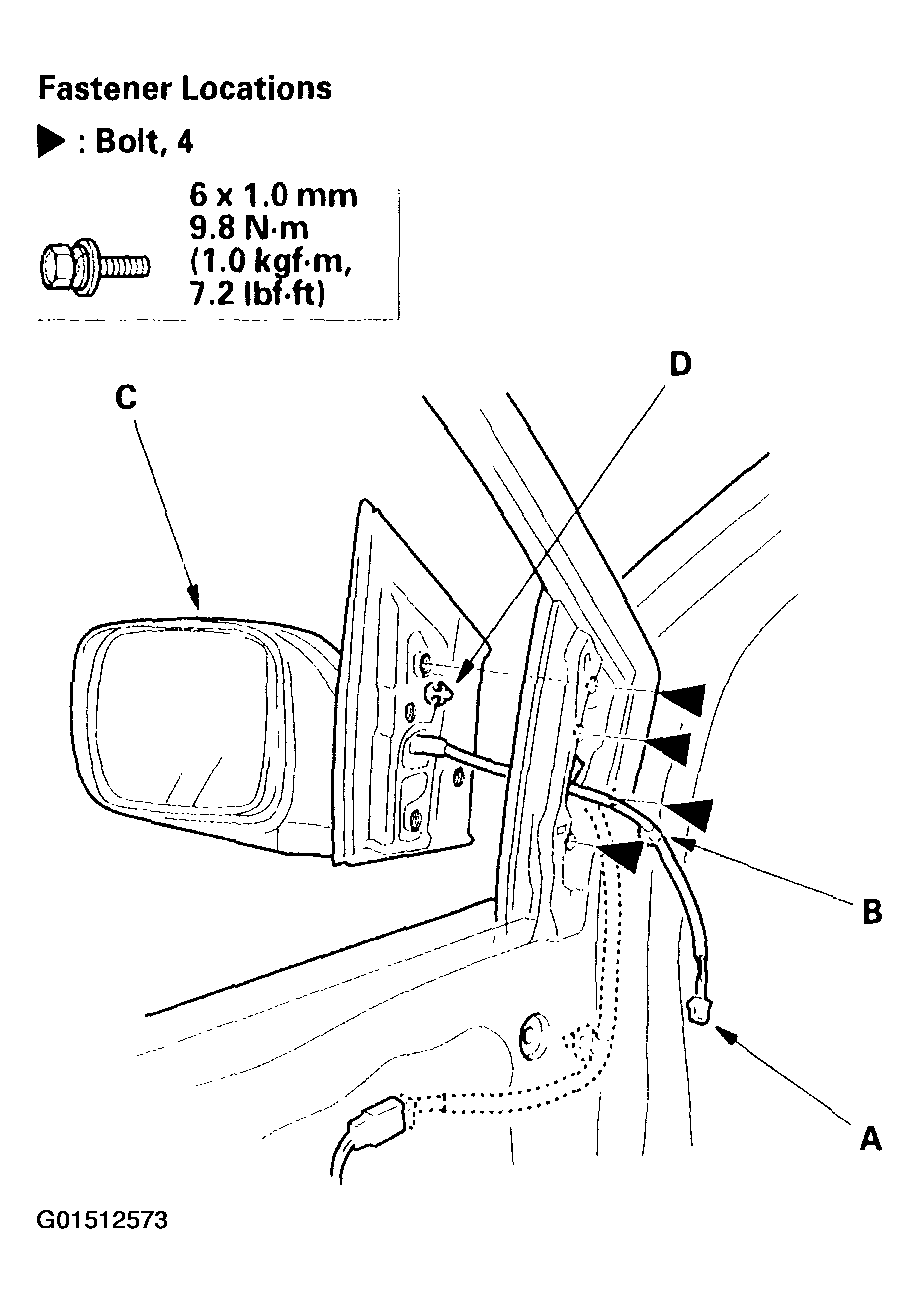

- Disconnect the connector (A), and detach the harness clip (B), then remove the bolts securing the mirror. While holding the mirror (C), push out the clip (D), and remove the mirror. Take care not to scratch the door.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the power mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly
- Attach the harness clip.
- Push the cover clip into place securely.
