Odyssey EX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Multiplex Control System
>>
Circuit Diagram (Power, Ground, Communication Lines)
Circuit Diagram (Power, Ground, Communication Lines)

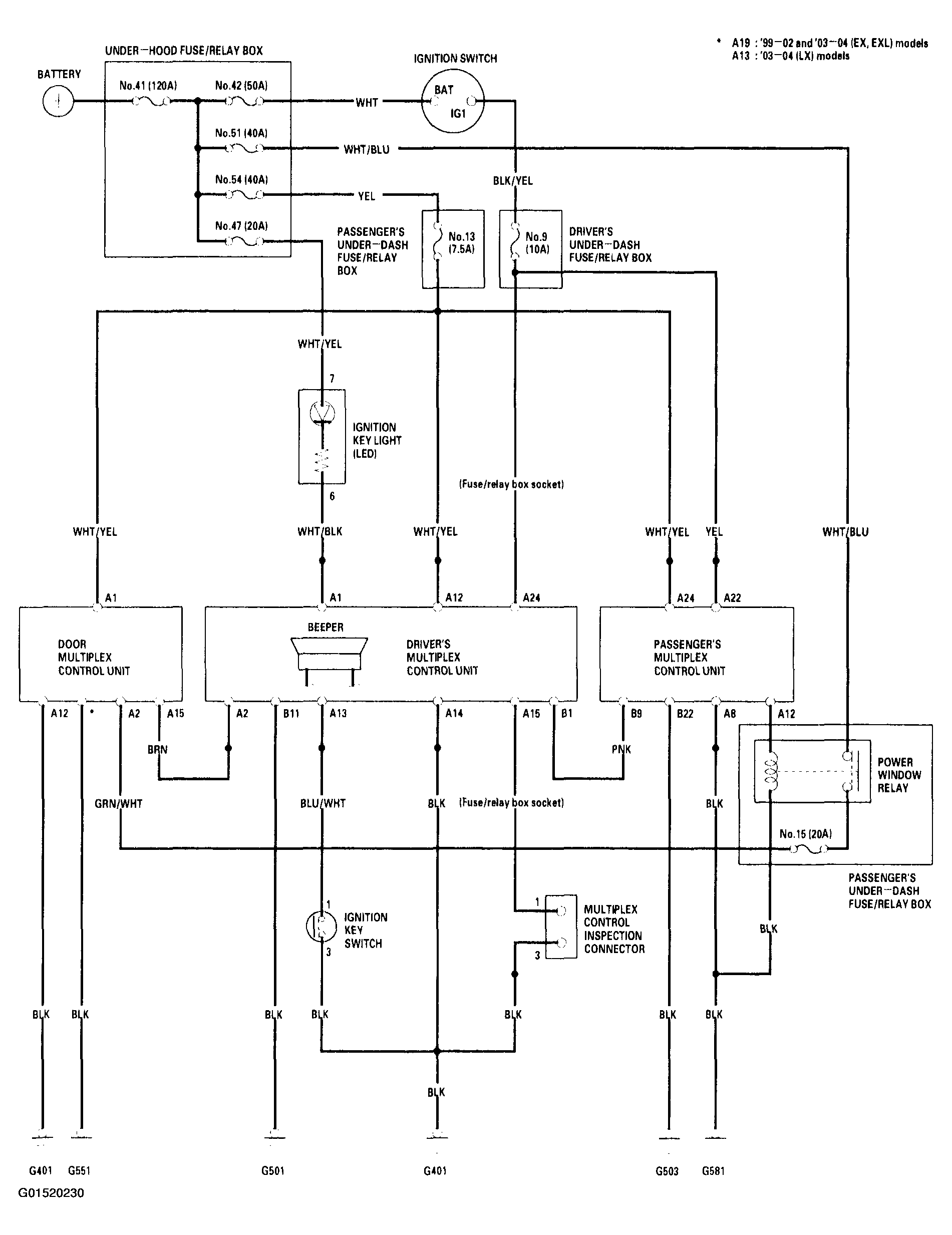

Fig 1: Multiplex Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
