Rear Window Defogger
>>
Circuit Diagram
Circuit Diagram

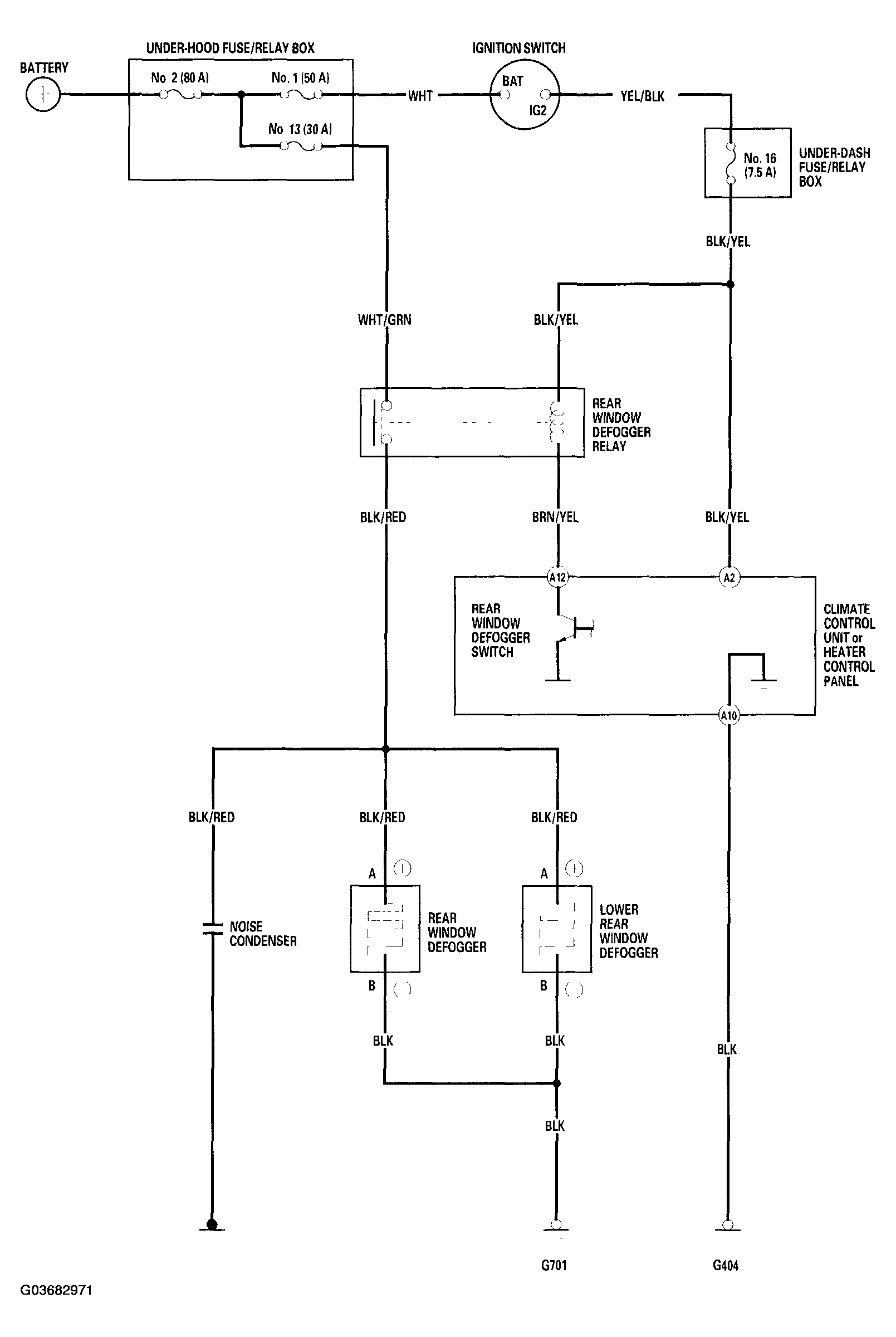

Fig 1: Circuit Diagram - Rear Window Defogger
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
