Rear Window

  1. Open the hatch and remove the hatch trim panel (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
  2. Disconnect the 4P connector (A) from the rear window wiper motor (B).

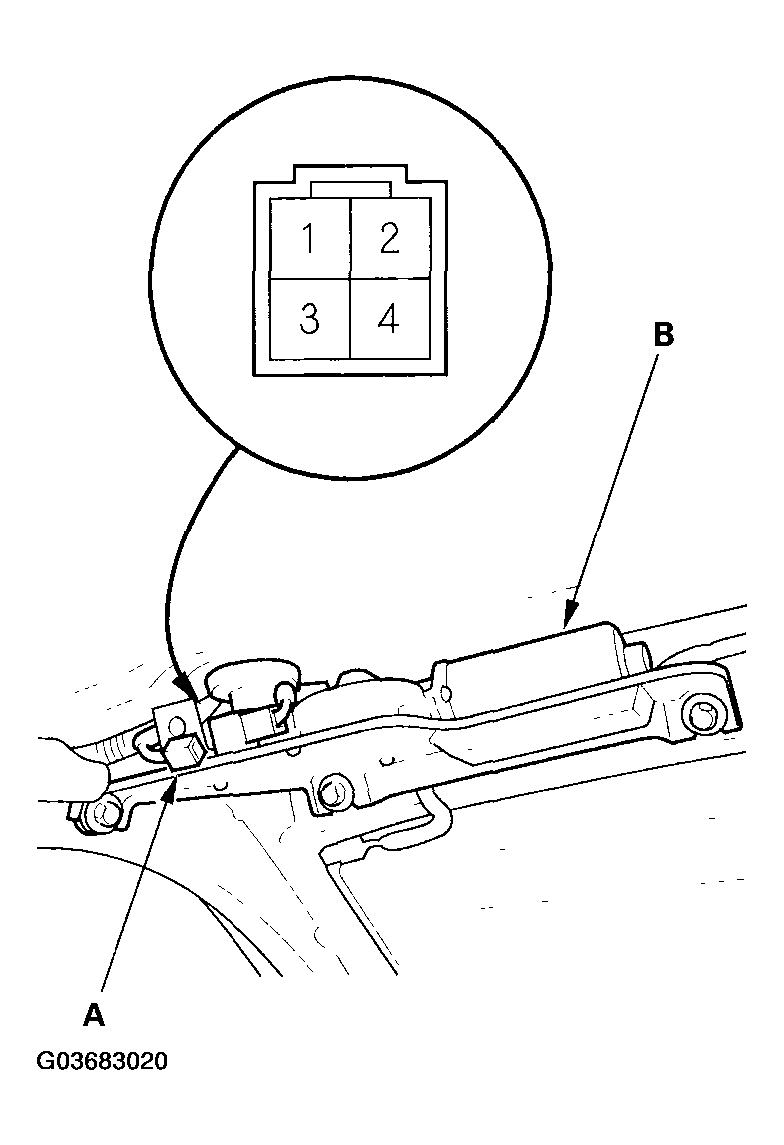

    Fig 1: Disconnecting 4P Connector From Rear Window Wiper Motor
    G03683020Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power to terminal No. 1 and connect terminal No. 3 to body ground. The rear wiper motor should run smoothly.
  4. Connect the battery power to the No. 1 terminal, and ground to the No. 2 and No. 3 terminals of the 4P connector. Then connect an analog voltmeter between the No. 1 (+) terminal and the No. 4 (ground) terminal. When the park switch contacts, the pointer should swing. If not, replace the motor.
