Driver's Dashboard Panel Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

Open the driver's door, and gently pull out on the front of the dashboard side lid (A) to release the hooks (B), then remove the lid.

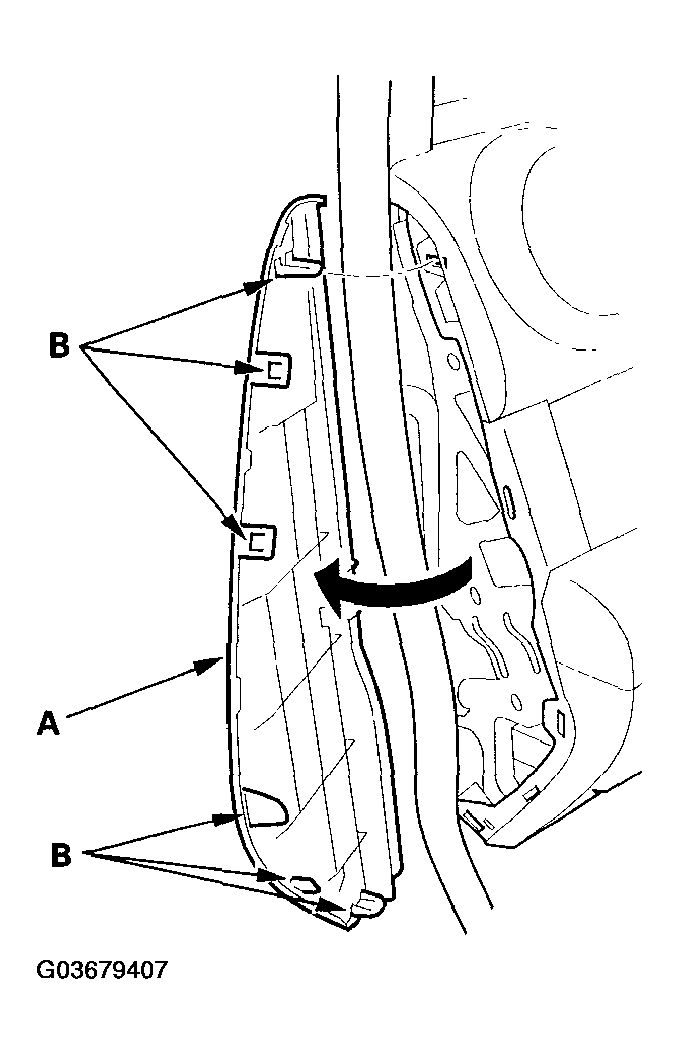

Fig 1: Removing Dashboard Side Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tilt the steering column down.
Remove the driver's dashboard panel (A).
- 1 Open the driver's door, and remove the screw (B).
- 2 Gently pull out the panel along the bottom to detach the clips (C).
- 3 Gently pull out the panel along the top to detach the clips.
- 4 Gently release the hooks (D) on the inside edge of the panel.

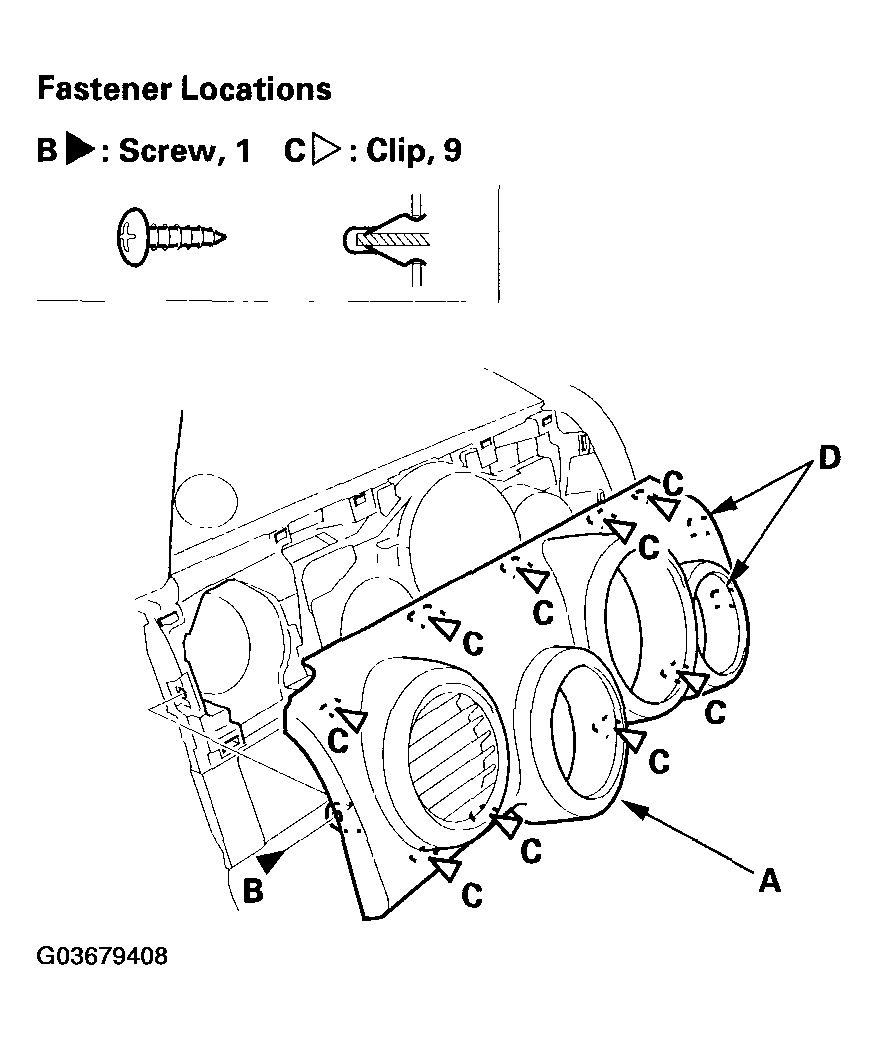

Fig 2: Removing Driver's Dashboard Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips and hooks into place securely.
