Center Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove these items:
- Center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION )
- Shift lever trim (see CENTER LOWER COVER REMOVAL/INSTALLATION )

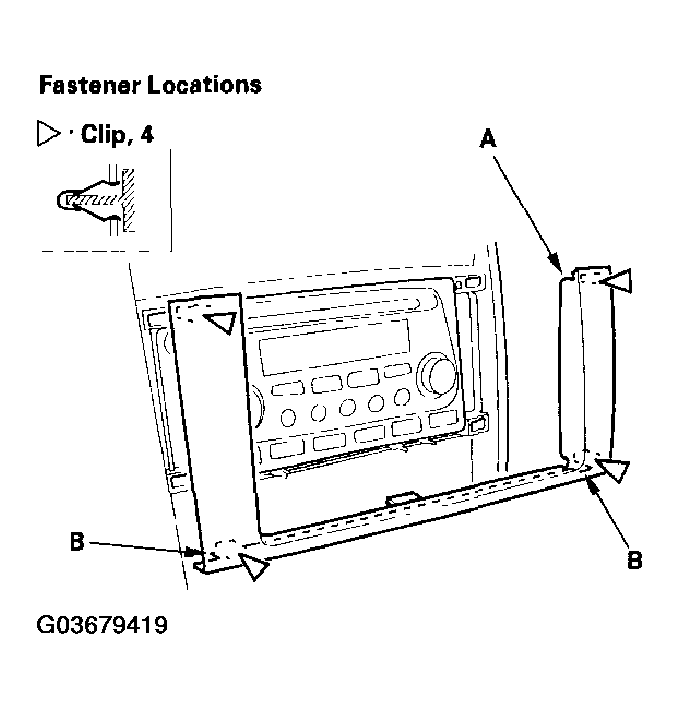

Release the lower clips in the radio panel (A) by putting a hook-snapped tool into the notches (B) and pulling out carefully. Pull out on the radio panel to release the upper clips.

Fig 1: Releasing Lower Clips In Radio Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

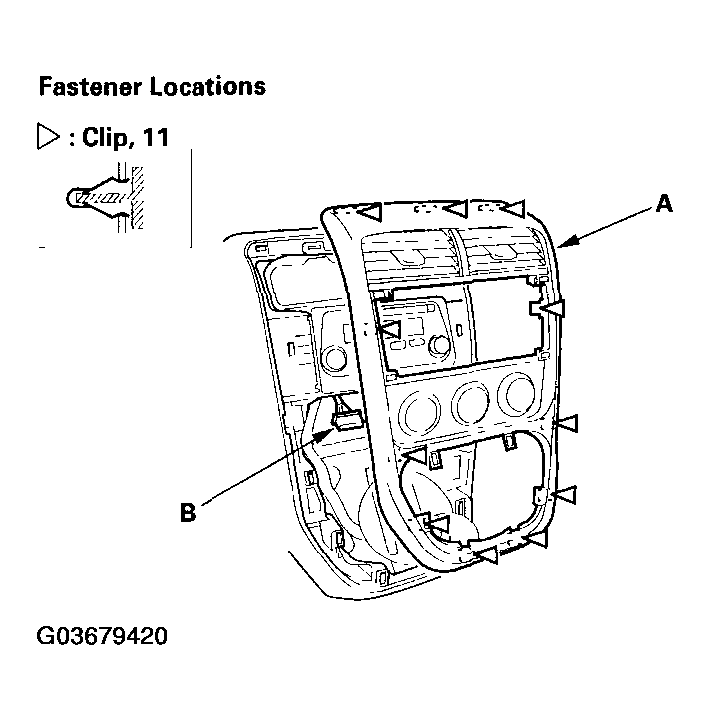

Pull on the center panel (A) to release the clips, then disconnect the heater control unit connector (B).

Fig 2: Disconnecting Heater Control Unit Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure the heater control unit connector is plugged in properly.
- Push the clips into place securely.
