Under-Dash Fuse/Relay Box Connector End View

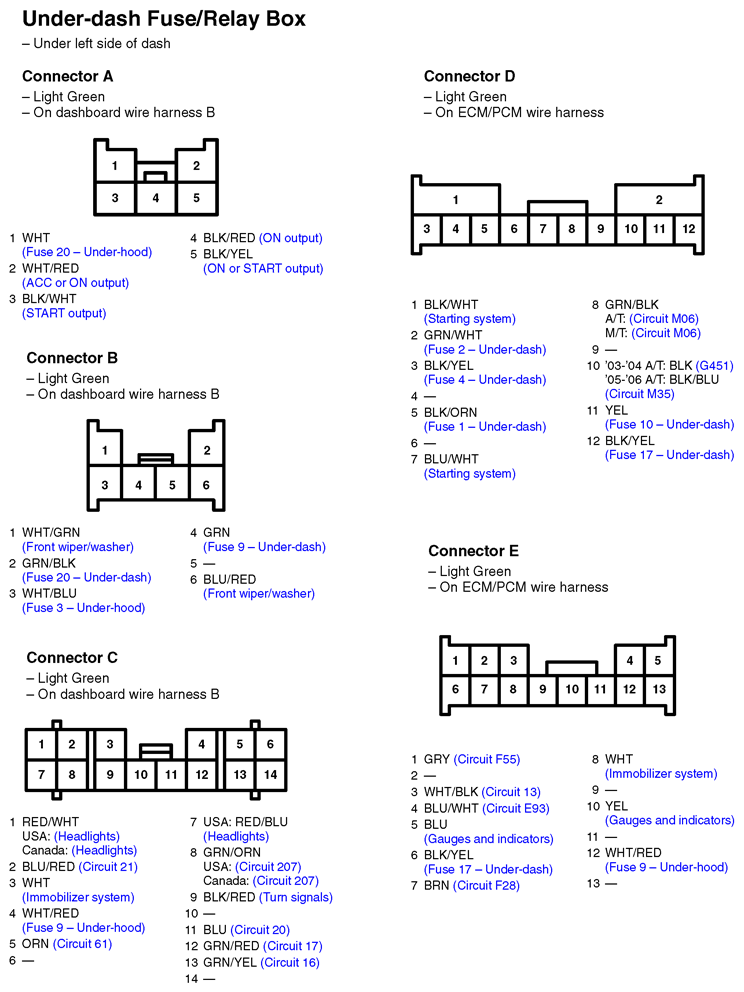

Fig 1: Under-Dash Fuse/Relay Box Connector End View (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

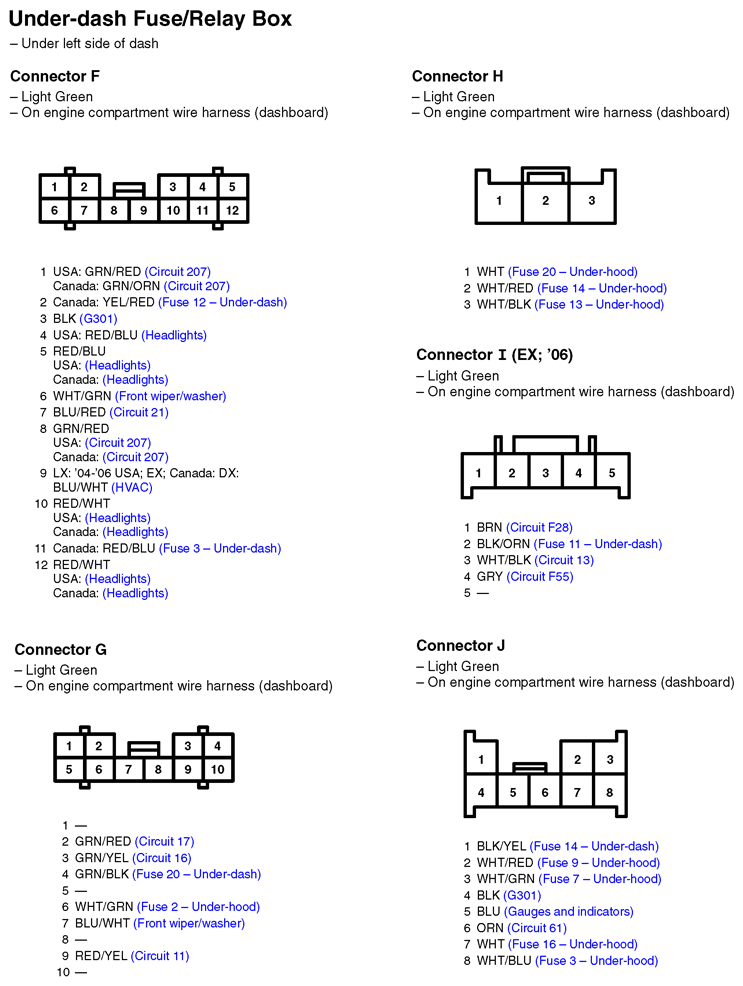

Fig 2: Under-Dash Fuse/Relay Box Connector End View (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

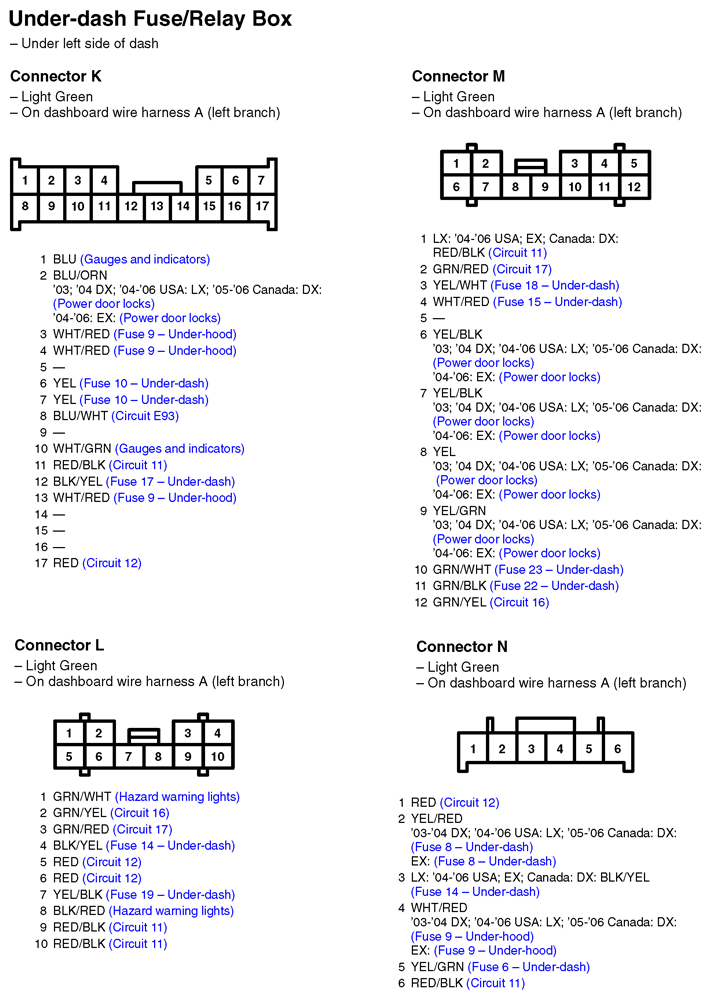

Fig 3: Under-Dash Fuse/Relay Box Connector End View (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

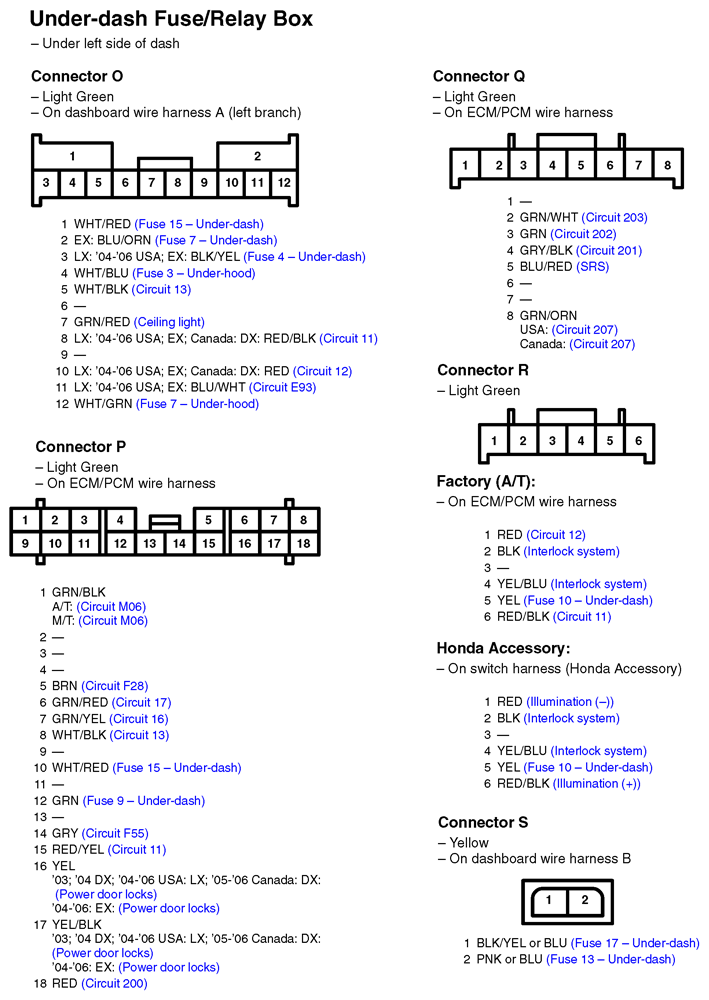

Fig 4: Under-Dash Fuse/Relay Box Connector End View (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

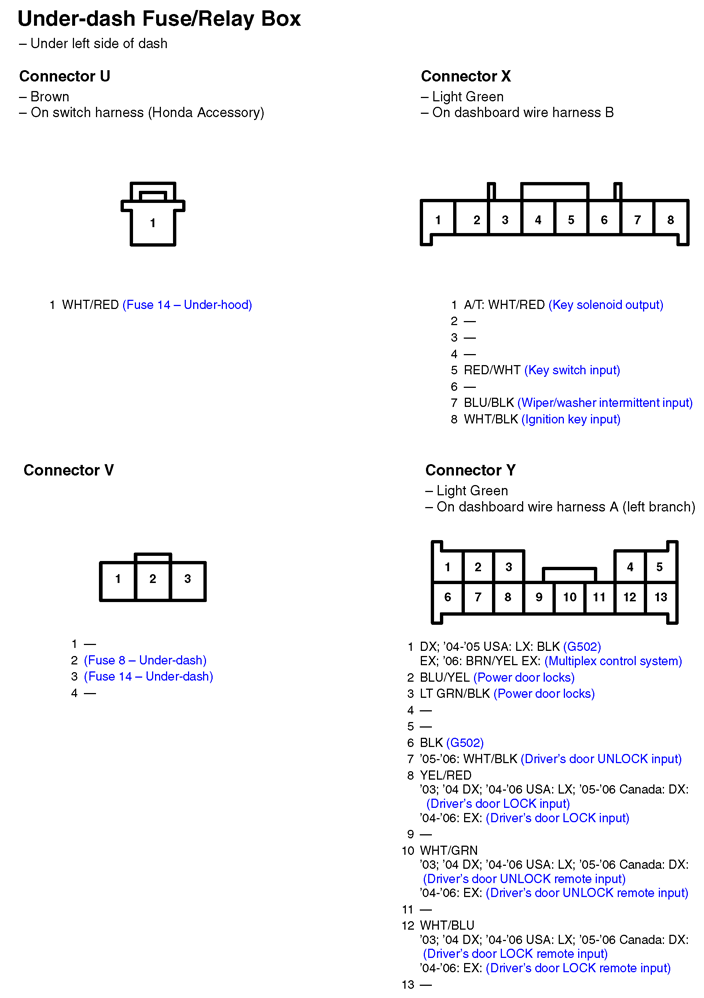

Fig 5: Under-Dash Fuse/Relay Box Connector End View (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
