Taillight Assembly, Right Connector End View

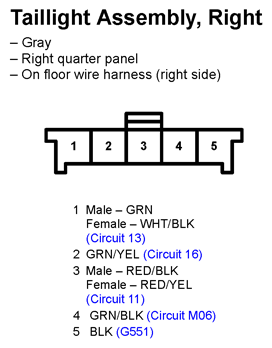

Fig 1: Taillight Assembly, Right Connector End View

G11249959

Courtesy of AMERICAN HONDA MOTOR CO., INC.
